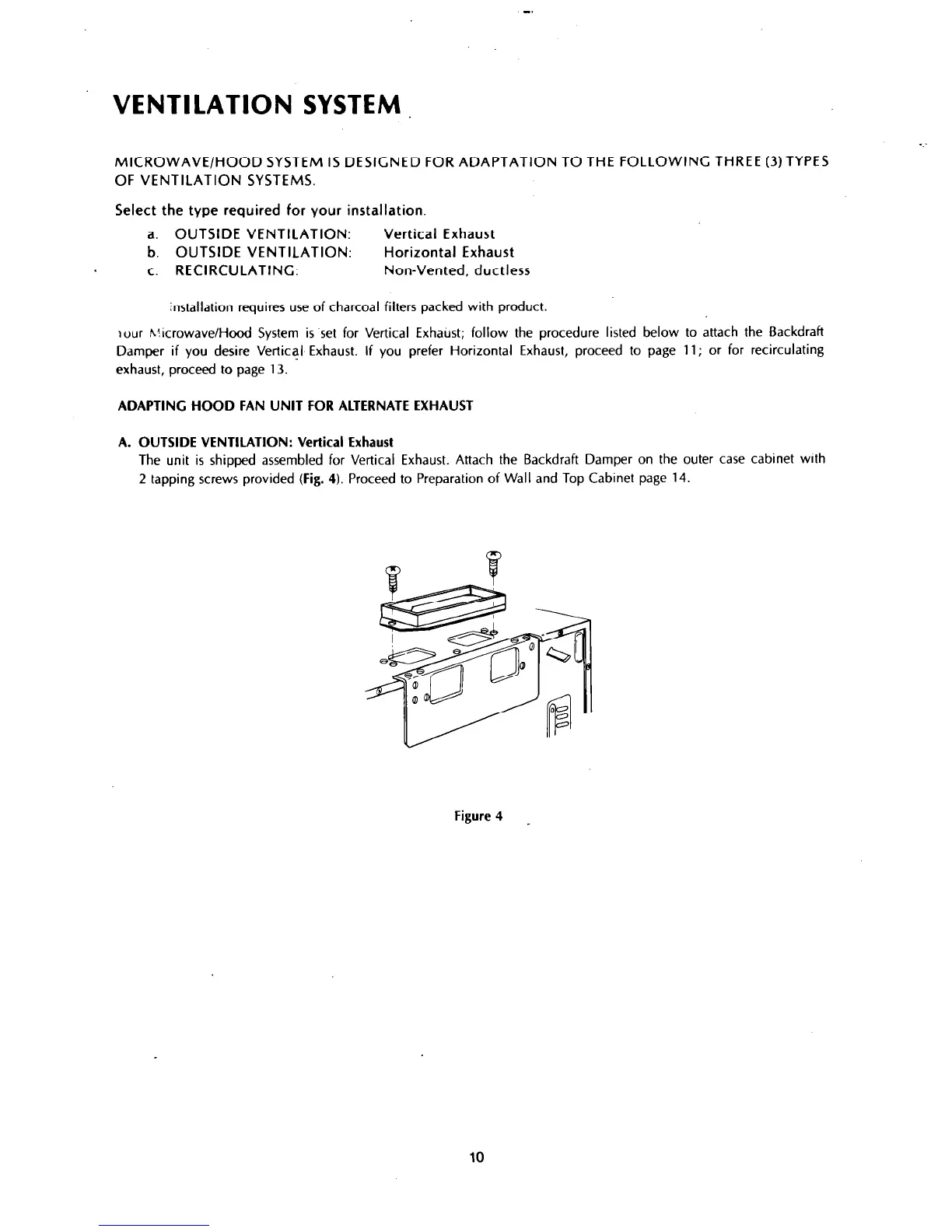

VENTILATION SYSTEM
.:
MICROWAVE/HOOD SYSTEM IS DESIGNED FOR ADAPTATION TO THE FOLLOWING THREE (3) TYPES
OF VENTILATION SYSTEMS.
Select the type required for your installation.
a. OUTSIDE VENTILATION:
Vertical Exhaust
b. OUTSIDE VENTILATION:
Horizontal Exhaust
c. RECIRCULATING:
Non-Vented, ductless
installation requires use of charcoal filters packed with product.
buur hlicrowave/Hood System is set for Vertical Exhaust; follow the procedure listed below to attach the Backdraft
Damper if you desire Vertical Exhaust. If you prefer Horizontal Exhaust, proceed to page 11; or for recirculating
exhaust, proceed to page 13.
ADAPTING HOOD FAN UNIT FOR ALTERNATE EXHAUST
A. OUTSIDE VENTILATION: Vertical Exhaust
The unit is shipped assembled for Vertical Exhaust. Attach the Backdraft Damper on the outer case cabinet with
2 tapping screws provided (Fig. 4). Proceed to Preparation of Wall and Top Cabinet page 14.
Figure 4
10
