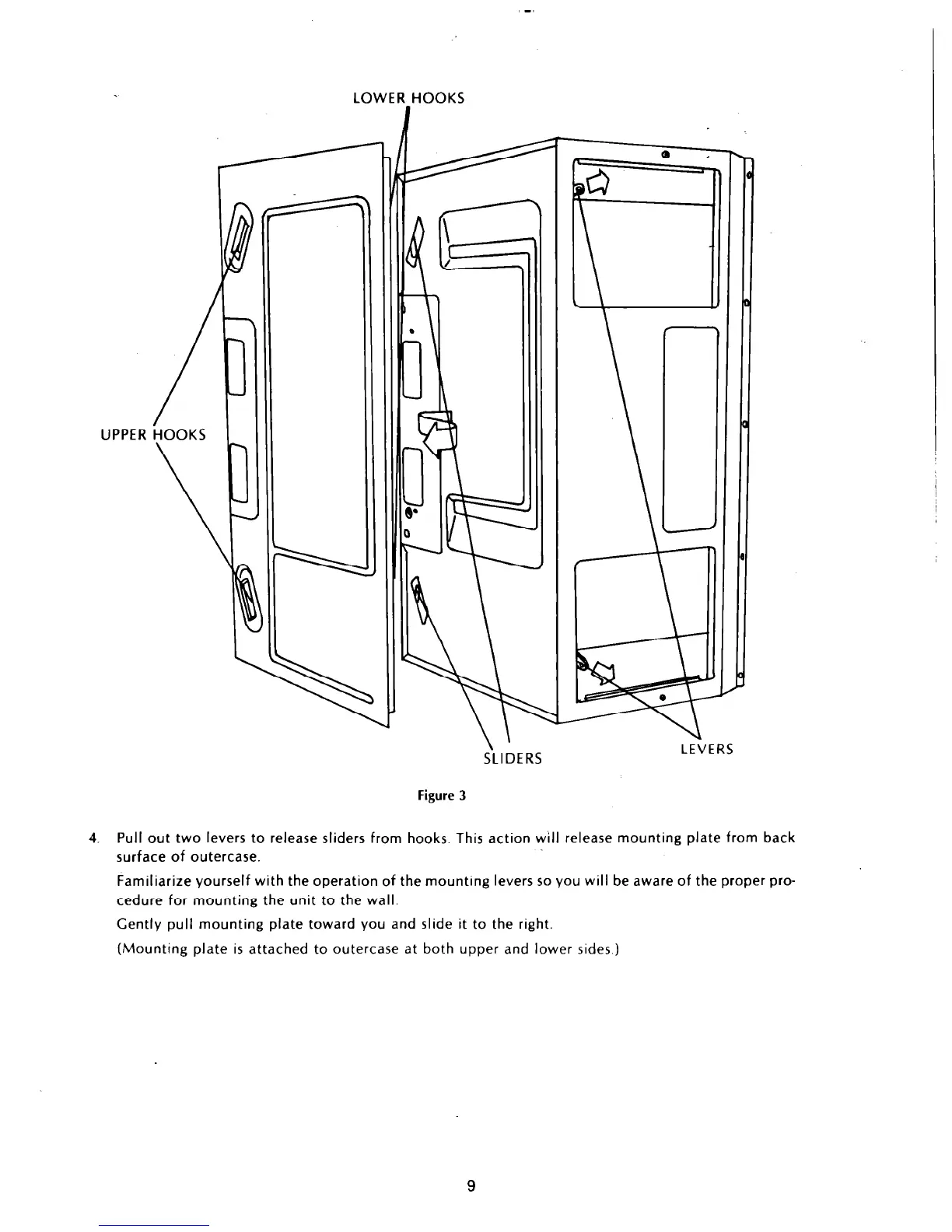

LOWER HOOKS
SLIDERS
Figure 3
LEVERS
4. Pull out two levers to release sliders from hooks. This action will release mounting plate from back
surface of outercase.
Familiarize yourself with the operation of the mountrng levers so you will be aware of the proper pro-
cedure for mounting the unit to the wall.
Gently pull mounting plate toward you and slide it to the right.
(Mounting plate is attached to outercase at both upper and lower sides,)
