KitchenAid KHMS 105 - Product Preparation for Installation; Removing the Mounting Plate

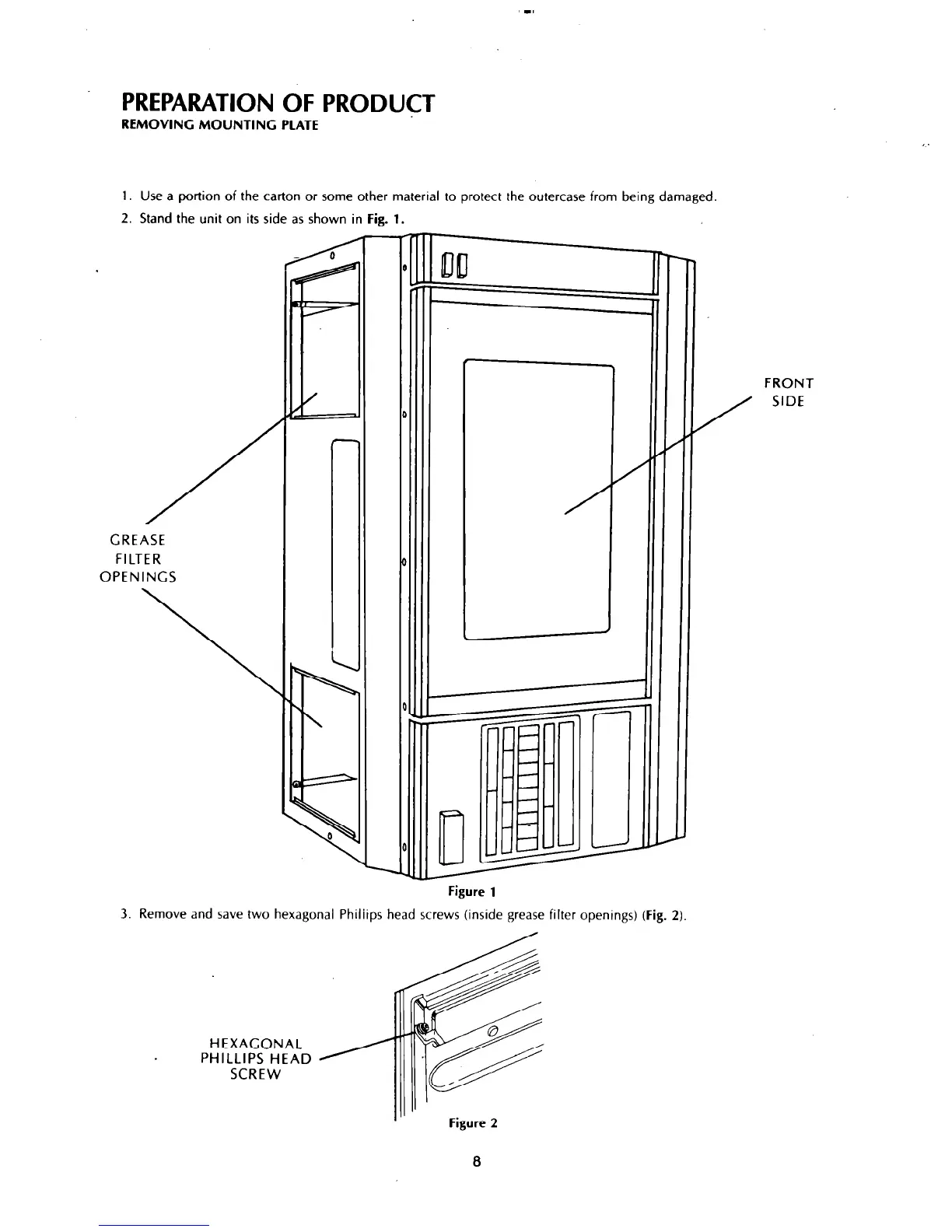

PREPARATION OF PRODUCT
/
Figure 1
3. Remove and save two hexagonal Philiips head screws (inside grease filter openings) (Fig. 2).
HEXAGONAL
PHILLIPS HEAD
SCREW
FRONT
/
SIDE
REMOVING MOUNTING PLATE
1. Use a portion of the carton or some other material to protect the outercase from being damaged.
2. Stand the unit on its side as shown in Fig. 1.
/
CREASE
FILTER
OPENINGS
\
Figure 2
8
