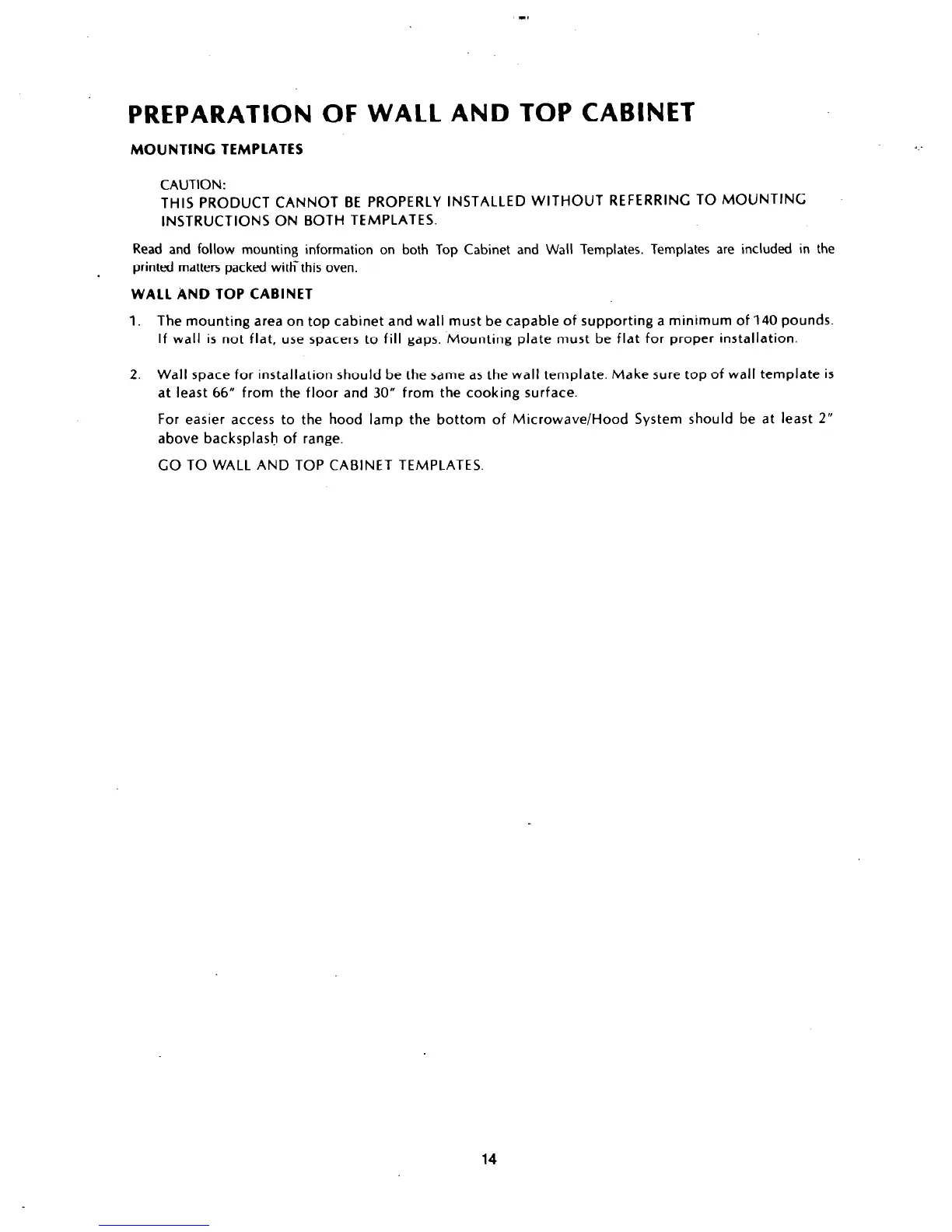

PREPARATION OF WALL AND TOP CABINET
MOUNTING TEMPLATES
I’
CAUTION:
THIS PRODUCT CANNOT BE PROPERLY INSTALLED WITHOUT REFERRING TO MOUNTING
INSTRUCTIONS ON BOTH TEMPLATES.
Read and follow mounting information on both Top Cabinet and Wall Templates. Templates are included in the
printed matters packed witlithis oven.
WALL AND TOP CABINET
1. The mounting area on top cabinet and wall must be capable of supporting a minimum of 140 pounds.
If wall is not flat, use spacers to fill gaps, Mounting plate must be flat for proper installation.
2. Wall space for installation should be the same as the wall template. Make sure top of wall template is
at least 66” from the floor and 30” from the cooking surface.
For easier access to the hood lamp the bottom of Microwave/Hood System should be at least 2”
above backsplash of range.
CO TO WALL AND TOP CABINET TEMPLATES.
