Microwave Oven Hood Combo Service Manual — LIT 4317216
Original 03/97

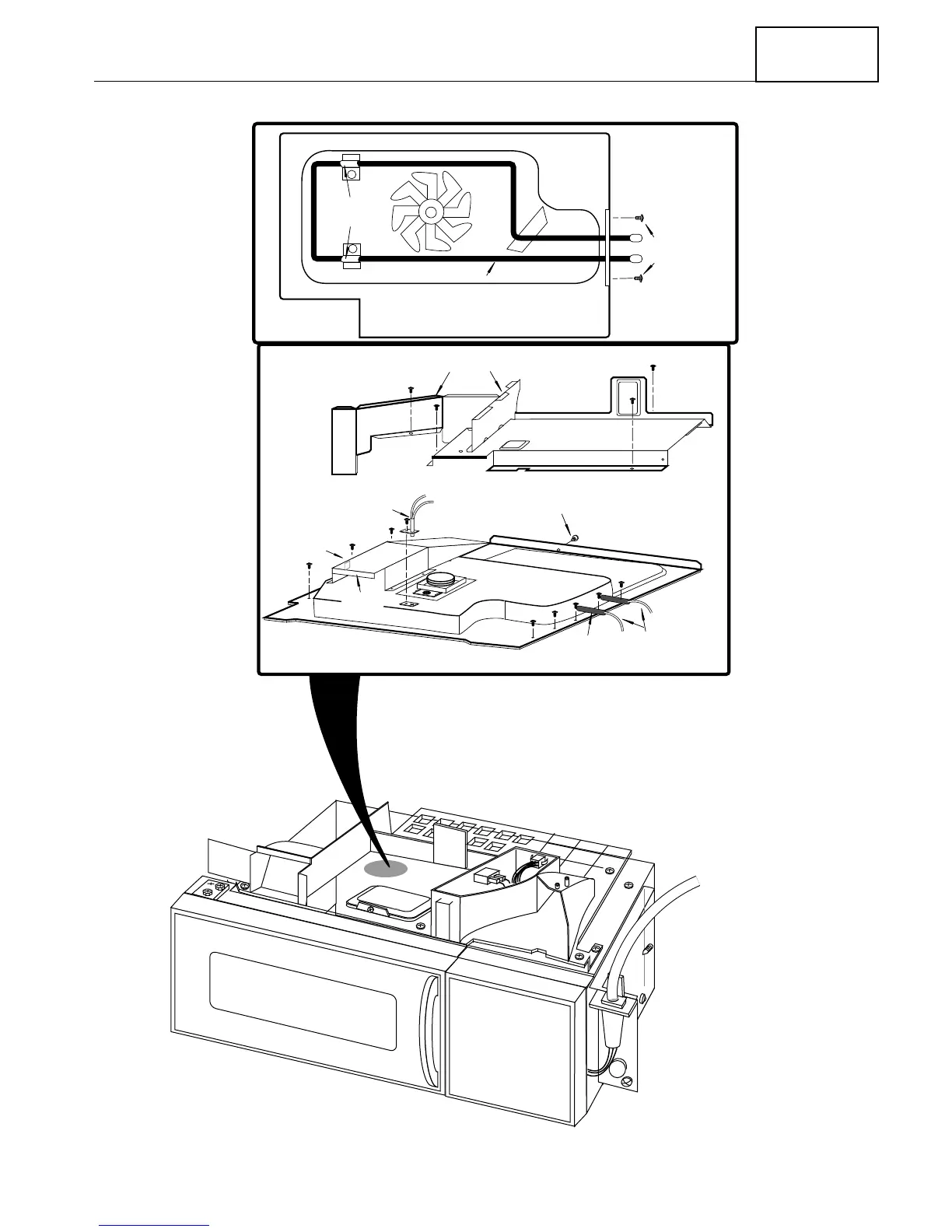

CONVECTION
THERMISTOR
TOP PLATE
MOUNTING SCREWS
BRACKETS
CIRCULATION
PULLEY COVER
TOP PLATE
CONVECTION
HEATING
ELEMENT
YELLOW
WIRES
UNCLIP
ELEMENT
HERE
HEATING ELEMENT
HEATING ELEMENT
MOUNTING SCREWS
VIEWED FROM UNDER
TOP PLATE
GAS SENSOR
SENSOR
COVER
