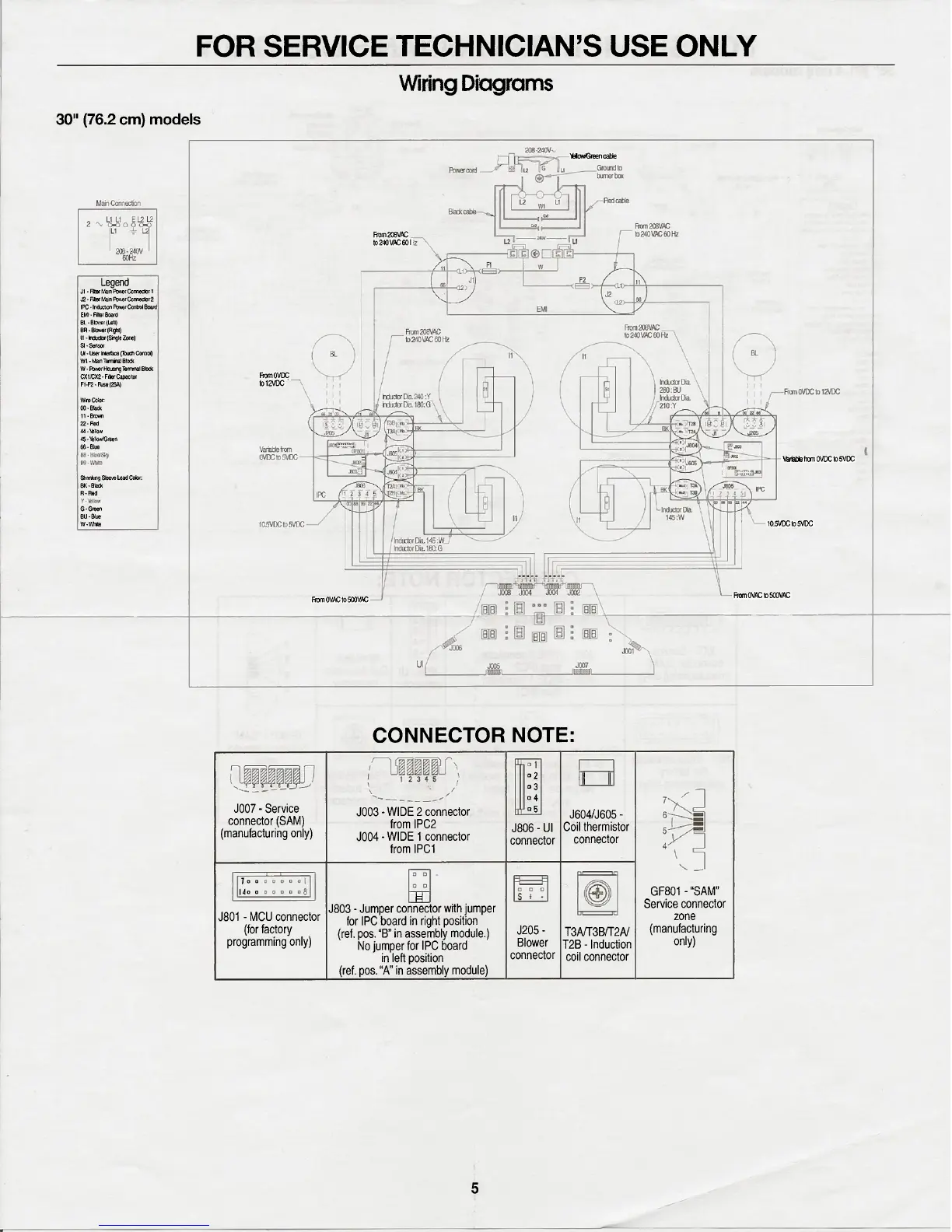

FOR SERVICE TECHNICIAN'S USE ONLY
30" (76.2 cm) models
Wiring Diagrams
Legend
J1 • Rtef Wain R*\er Connector l
J2 • Filer Main Aa\er Connector 2
IPC • Induction Fowr CaiM Board
EMI-fillerBoard
81. • Bb.'.sr (Left)
8R - BJcnver (Right)
II -Induct*(SingleZone)
SI-Sensor
Ul - User Interface (Touch Control
Wl - Man Terminal Block
W • Pct.-ier Housrg Terrrmal Block
CXVCX2- Filler Capacitor
FI-F2- Fuse(2SA)
Wro Color:
00-Black
11-Brcwi
22-Red
44 -VHow
45-Wta'Sisen
66-Blue
Shrnkrg Slee® Lead Color:
8K-Slad<
R-Red
G-Green
8U-Bt«
W-White
•felcmGreen cable
FromOVDC
1012VDC '
From203VAC
to 240 VAC 63!
VariaBe from OVDC to 5VDC
10.5VDC10 5VDC
front OWC to 500VAC
RomOVACtoSOOVAC
CONNECTOR NOTE:
J007 - Service
connector (SAM)
(manufacturing only)
7 ° »
No o
J801 - MCU connector
(for factory
programming only)
J003-WIDE 2 connector
from IPC2
J004-WIDE 1 connector
from IPC1
H
J803 - Jumper connector with jumper
for IPC board in right position
(ref. pos. "B" in assembly module.)
No jumper for IPC board
in left position
(ref. pos. "A" in assembly module)
° 2
° 3
• 4
• 5
J806 - Ul
connector
J205-
Blower
connector
EH
J604/J605 -
Coil thermistor
connector
T3A/T3B/T2A/
T2B - Induction
coil connector
GF801 -"SAM"
Service connector
zone
(manufacturing
only)
5
