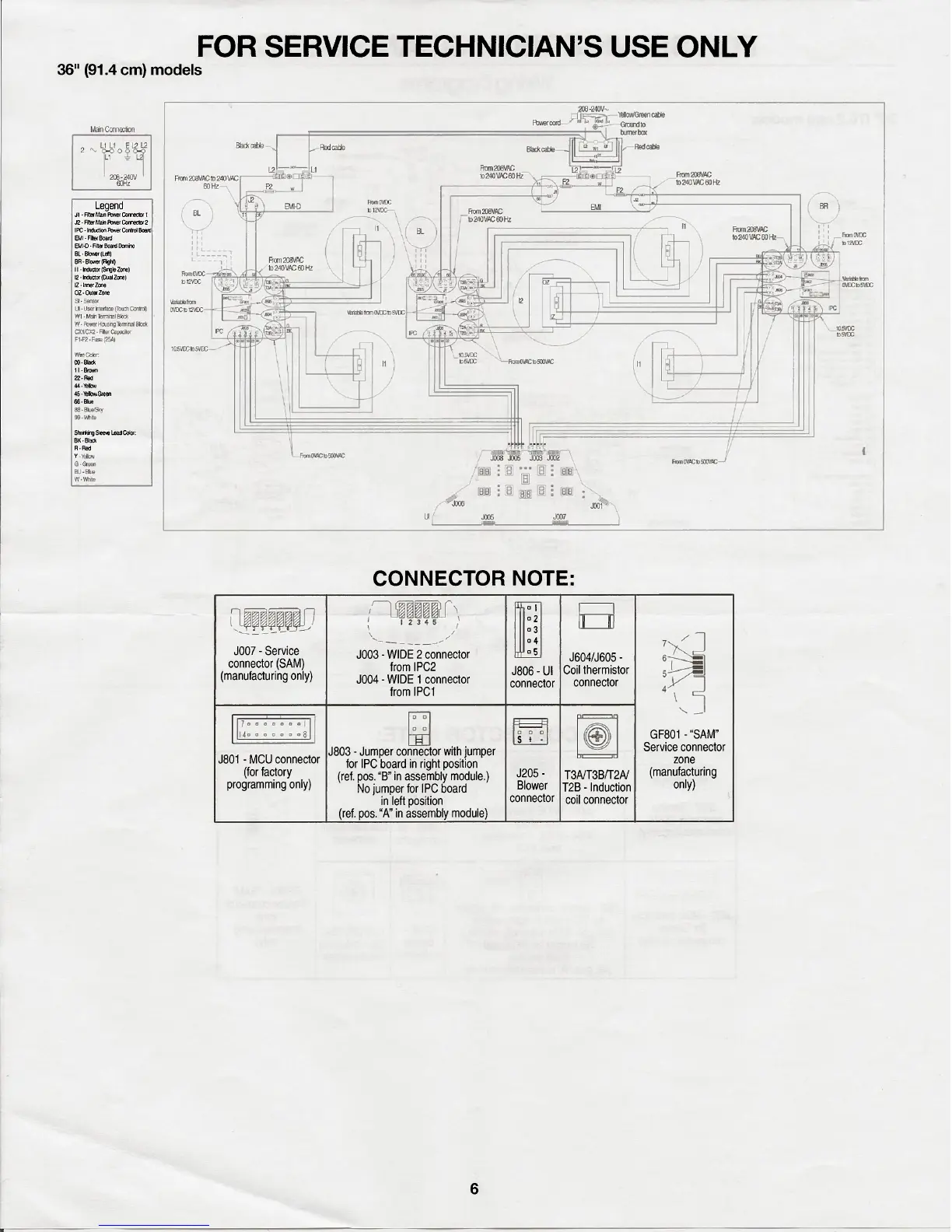

FOR SERVICE TECHNICIAN'S USE ONLY
36" (91.4 cm) models
Legend
J!
- Ffter Man Rarer Connector 1
J2 - Ffter Main Rarer Connector 2
IPC • Induction Pvm Cental Boart
EMI-Filter Board
EMI-D • Filler Board Dcmho
BL-Btaver(Leff)
BR • Blower (Rigfil}
11
Inductor (SngteZone)
12 • Inductor (Dual Zone)
IZ- Inner Zone
OZ-Outer Zone
CO-EHack
II -Briwn
22-Red
M-Yekm
45-^lkw.iGreen
66-Blue
Shrinking Sleeve Lead Color:
BK-BIsS
R-Red
V
CONNECTOR NOTE:
J007 - Service
connector (SAM)
(manufacturing only)
J801 - MCU connector
(for factory
programming only)
J003 - WIDE 2 connector
from IPC2
J004 - WIDE 1 connector
from IPC1
H
J803 - Jumper connector with jumper
for IPC board in right position
(ref. pos. "B" in assembly module.)
No jumper for IPC board
in left position
(ref. pos. "A" in assembly module)
f^T
° 2
°3
° 4
• 5
J806 - Ul
connector
s t
J205-
Blower
connector
a
J604/J605 -
Coil thermistor
connector
T3A/T3B/T2A/
T2B - Induction
coil connector
GF801 - "SAM"
Service connector
zone
(manufacturing
only)
6
