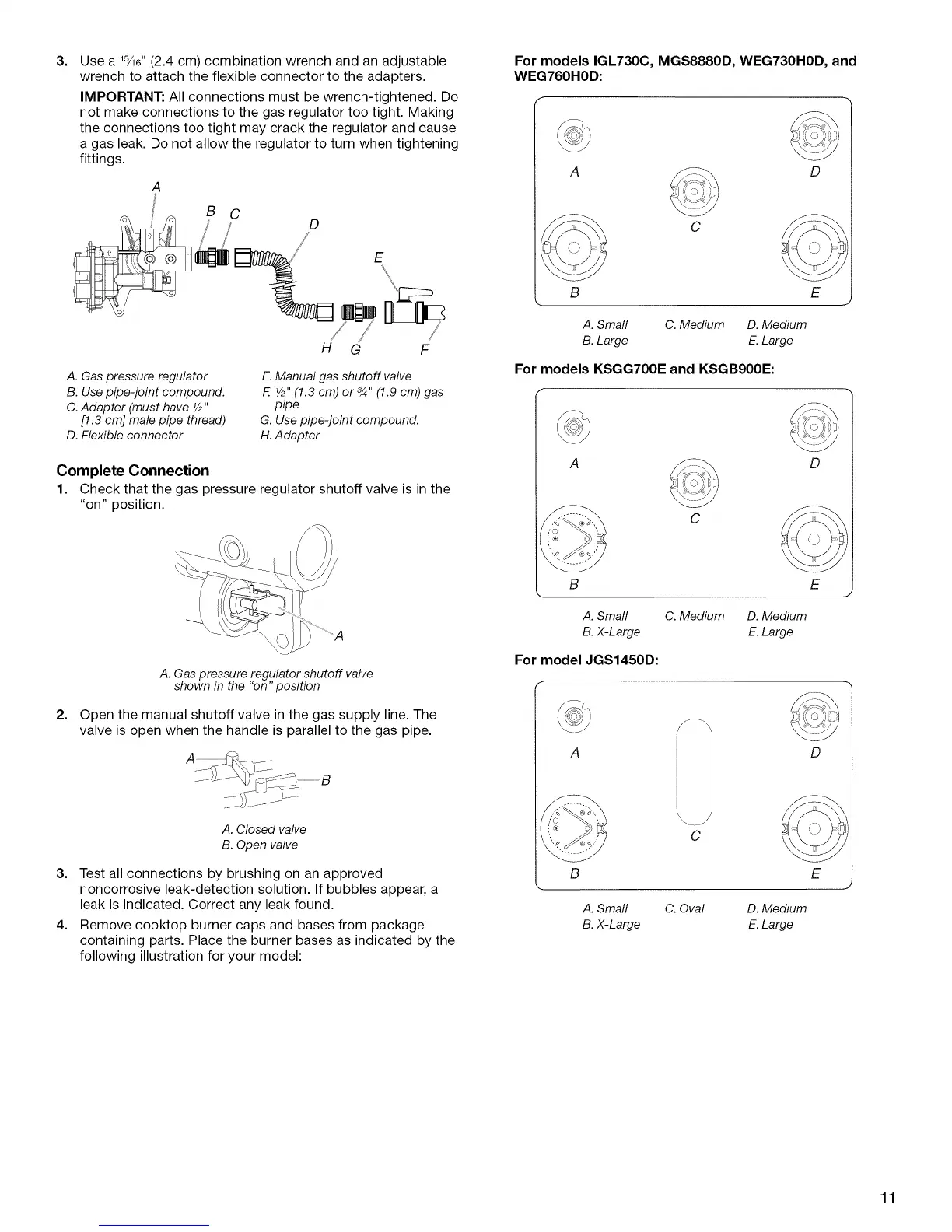

3. For models IGL730C, MGS8880D, WEG730HOD, and
WEG760HOD:
Use a 1%e"(2.4 cm) combination wrench and an adjustable
wrench to attach the flexible connector to the adapters.
IMPORTANT: All connections must be wrench-tightened. Do
not make connections to the gas regulator too tight. Making
the connections too tight may crack the regulator and cause
a gas leak. Do not allow the regulator to turn when tightening
fittings.
A
B C
D
A. Gas pressure regulator
B. Use pipe-joint compound.
C. Adapter (must have V2"
[1.3 cm] male pipe thread)
D. Flexible connector
H G F
E. Manual gas shutoff valve
F V2"(1.3 cm) or 3/4"(1.9 cm) gas
pipe
G. Use pipe-joint compound.
H. Adapter
Complete Connection
1. Check that the gas pressure regulator shutoff valve is in the
"on" position.
2,
A. Gas pressure regulator shutoff valve
shown in the "on" position
Open the manual shutoff valve in the gas supply line. The
valve is open when the handle is parallel to the gas pipe.
A. Closed valve
B. Open valve
3. Test all connections by brushing on an approved
noncorrosive leak-detection solution. If bubbles appear, a
leak is indicated. Correct any leak found.
4. Remove cooktop burner caps and bases from package
containing parts. Place the burner bases as indicated by the
following illustration for your model:
A D
C
B
A. Small C.Medium D.Medium
B. Large E. Large
For models KSGG700E and KSGB900E:
E
A
C
B
A. Small
B. X-Large
For model JGS1450D:
C. Medium D. Medium
E. Large
D
E
.2
A
B
C
A. Smafl C. Oval
B. X-Large
D. Medium
E. Large
D
E
11
