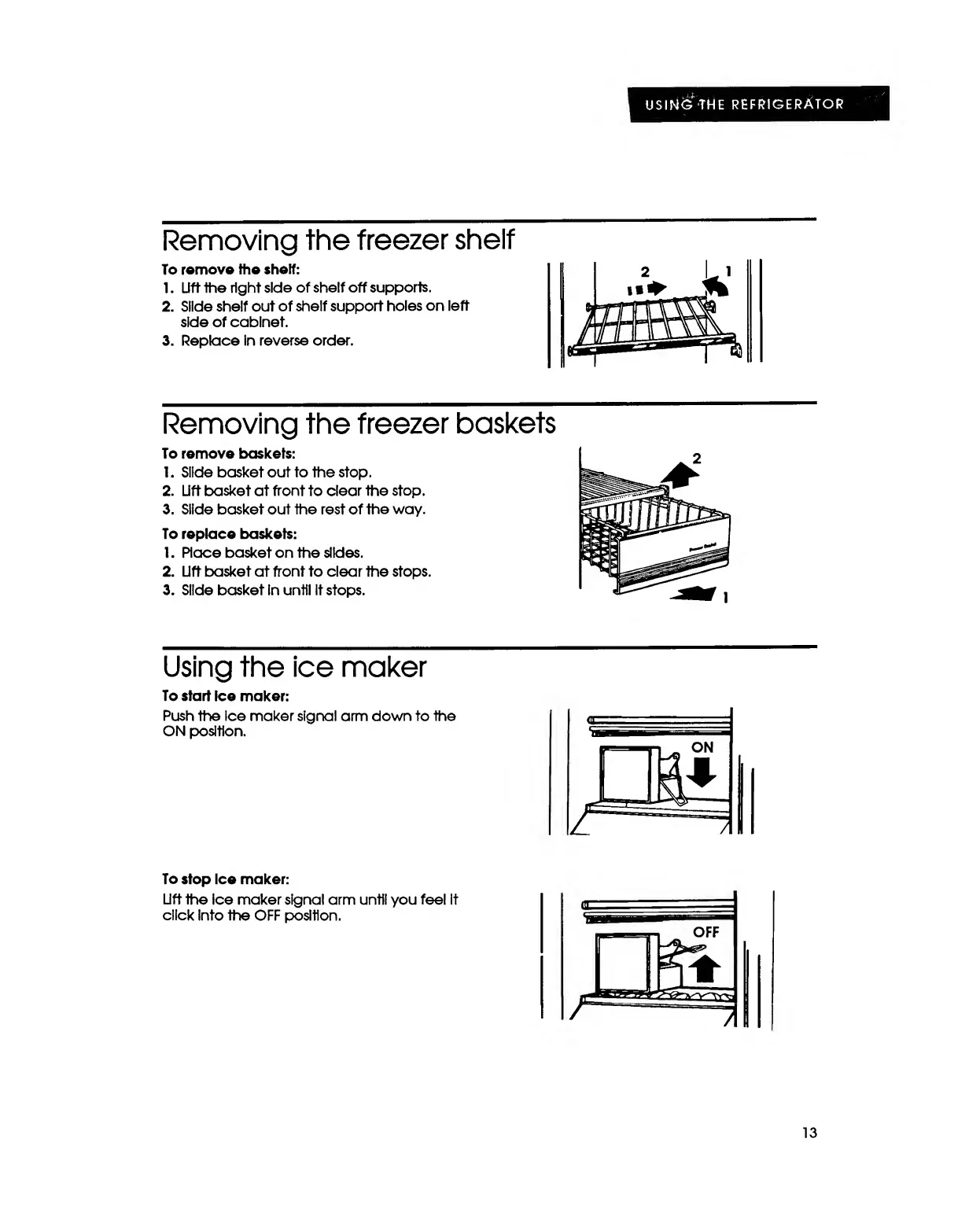

KitchenAid KSRB22Q - Page 13

USIN<f'THE REFRIGERATOR
Removing the freezer shelf
To remove the shelf:
1. Lift the right side of shelf off supports.
2. Slide shelf out of shelf support holes on left
side of cabinet.
3. Replace in reverse order.
Removing the freezer baskets
To remove baskets:
1. Slide basket out to the stop.
2. Lift basket at front to clear the stop.
3. Slide basket out the rest of the way.
To replace baskets:
1. Race basket on the slides.
2. Lift basket at front to clear the stops.
3. Slide basket In until It stops.
Using the ice maker
To start Ice maker:
Push the Ice maker signal arm down to the
ON position.
To stop ice maker:
Lift the ice maker signal arm until you feel it
click into the OFF position.
13
