KitchenAid KSSC36FMS00 - Page 8

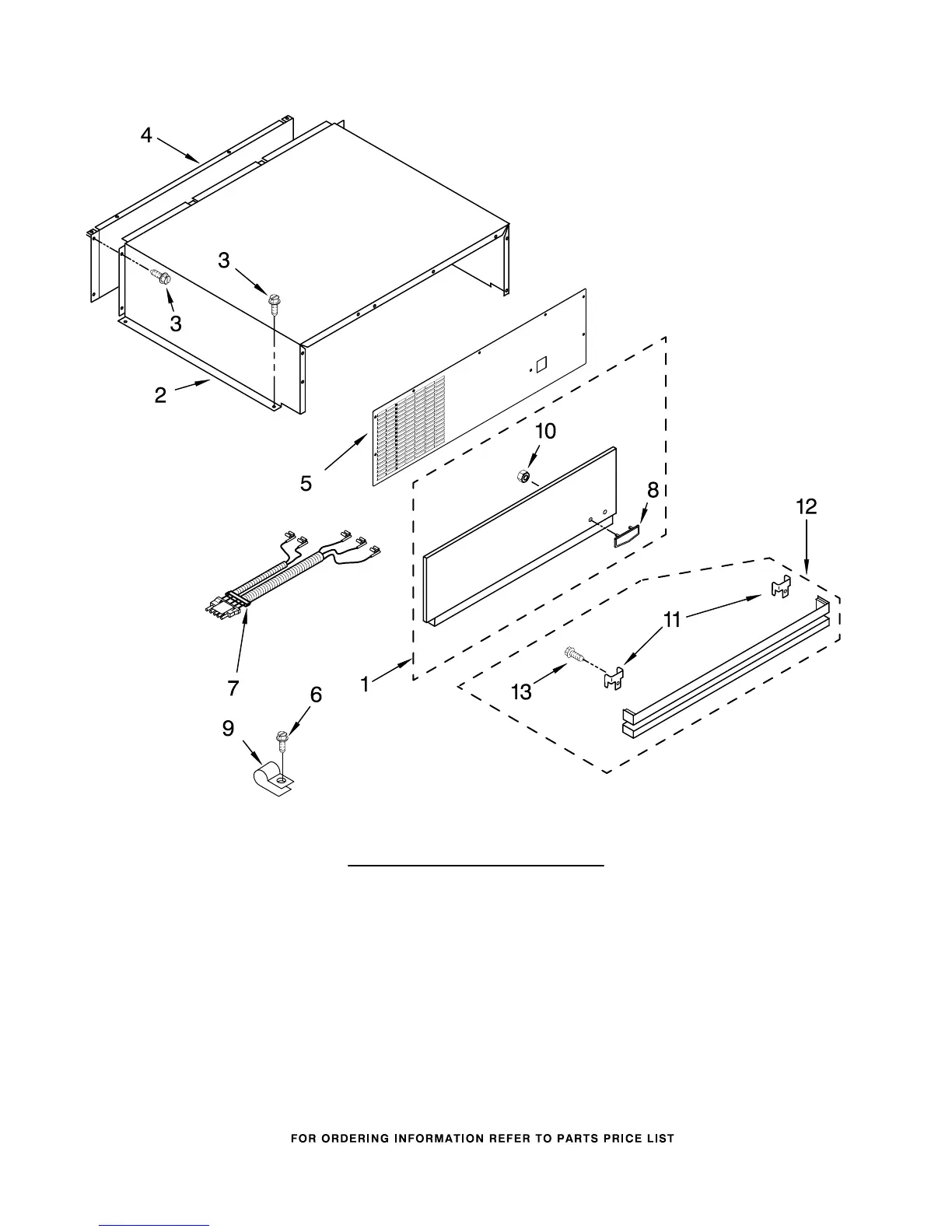

TOP GRILLE AND UNIT COVER PARTS
8
For Models: KSSC36FMS00
(Stainless Steel)
8198479
Illus. Part
No. No. DESCRIPTION
1 2257410S Panel, Decorative
2 2259320 Cover, Unit
3 486194 Screw
4 2256466 Back Panel
5 2259095 Cover, Unit Front
6 487415 Screw
7 2187429 Wire Assembly
RC/FC Light Switch
8 2005292 Nameplate
9 489348 Clamp
10 2004333 Nut
11 2254759 Bracket, Louver
12 2254760S Grille, Louver
13 488879 Screw
