KitchenAid KSSC36FMS00 - Control Panel Parts

7

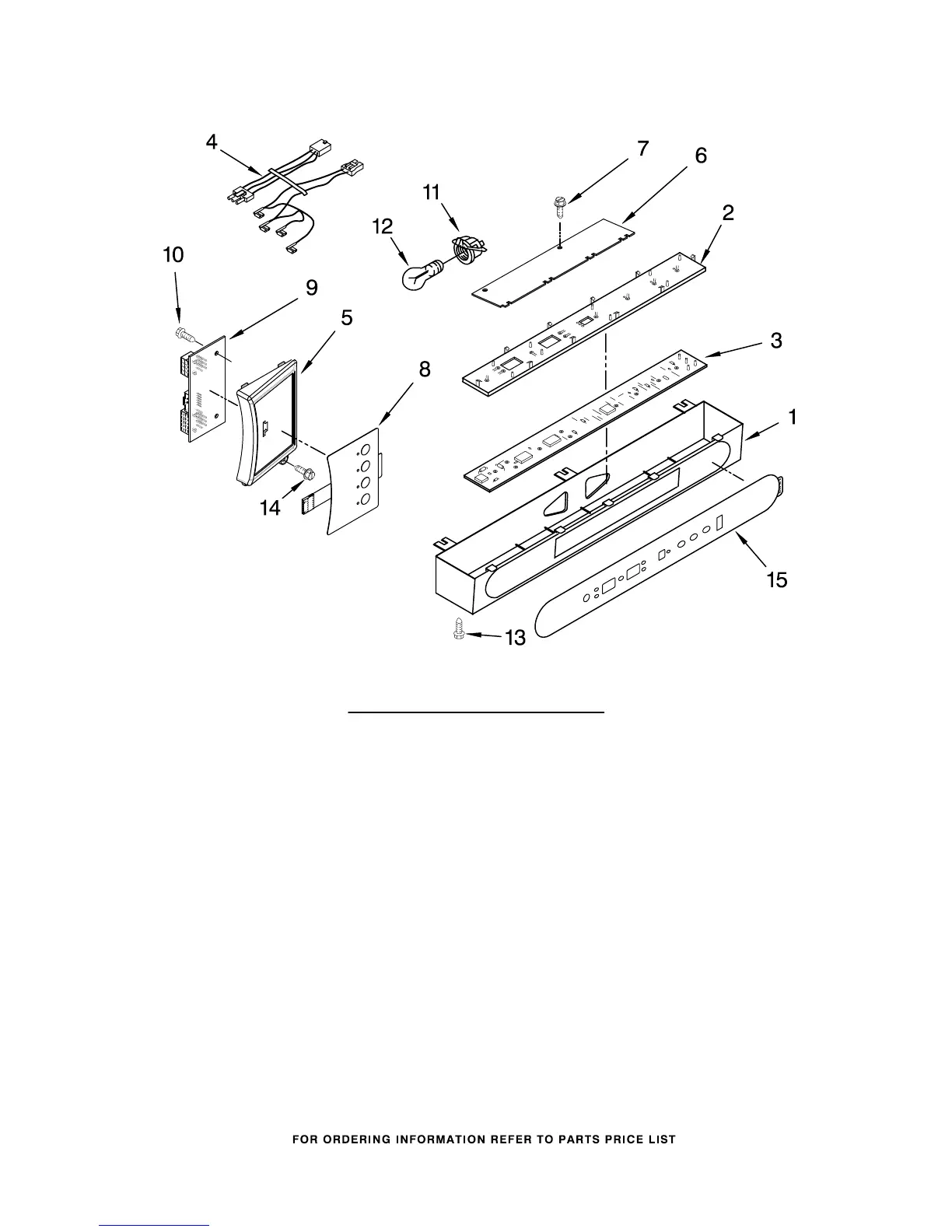

CONTROL PANEL PARTS
For Models: KSSC36FMS00
(Stainless Steel)
8198479
Illus. Part
No. No. DESCRIPTION
1 2215715 Control Box
2 2215670 Insert, Control
Box
3 2252110 Circuit Board,
Housing Control
4 2187424 Control Box
Wire Harness
5 2258914 Panel Control
Meat Pan
6 2221121 Support, Control
Box
7 489006 Screw (2)
8 2252067 Touch Pad, Meat
Pan
9 2252068 Display Board,
Ingredient
10 2302712 Clip, Retainer
11 2162085 Socket, Light
12 2255743 Light Bulb
13 486194 Screw
14 8281185 Screw
15 2257518 Overlay
Care Center
