KitchenAid KUDI01FL - Parts and Features

5

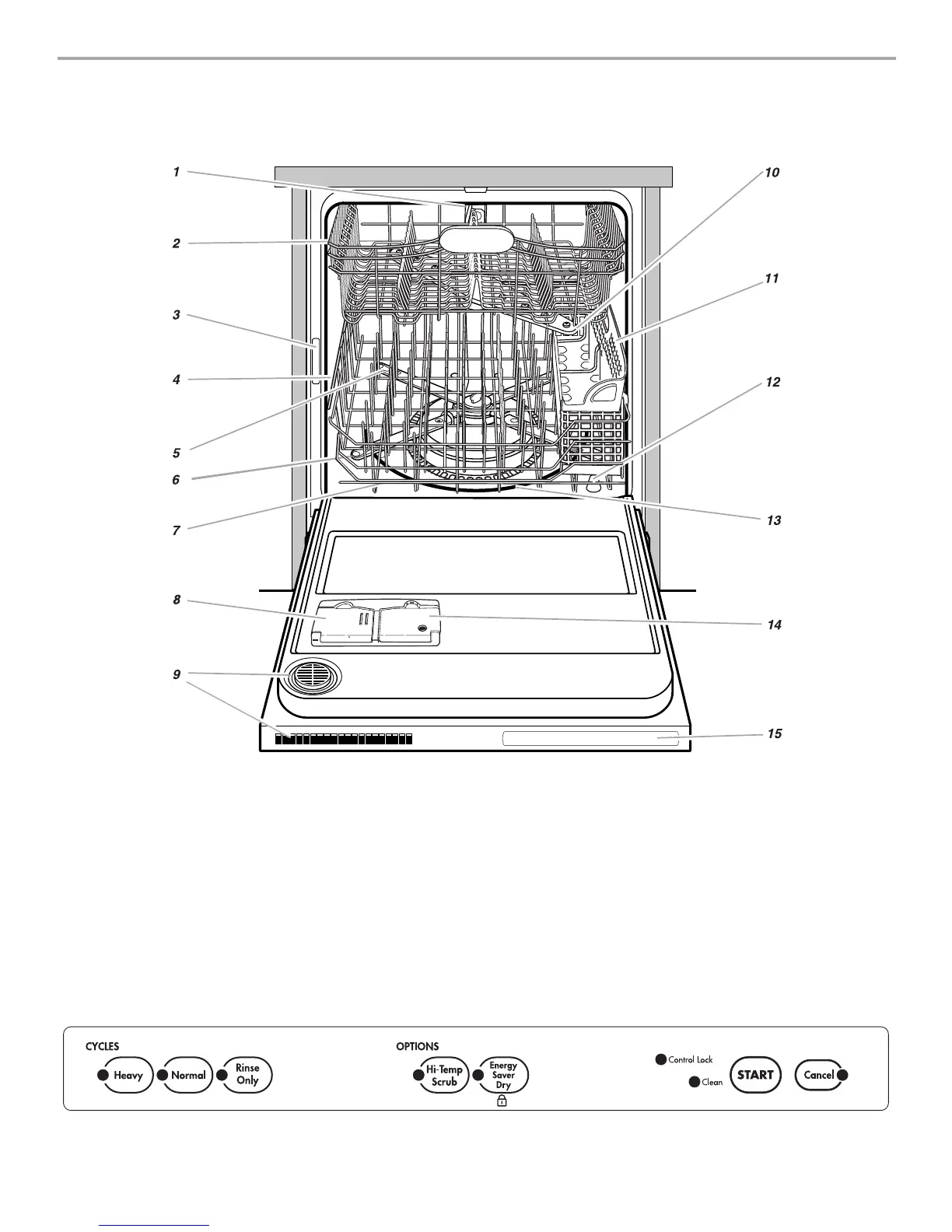

PARTS AND FEATURES
Control Panel
1.
Upper spray arm
2.
Top rack
3.
Model and serial number label
4.
Water inlet opening [in tub wall]
5.
FLEXI-FOLD DOWN™ flexible tines
6.
4-way HYDRO SWEEP™
spray arm
7.
Bottom rack
8.
Detergent dispenser
9.
Vent system
10.
Middle spray arm
11.
Silverware basket
12.
Overfill protection float
13.
Heating element
14.
Rinse aid dispenser
15.
Control panel
