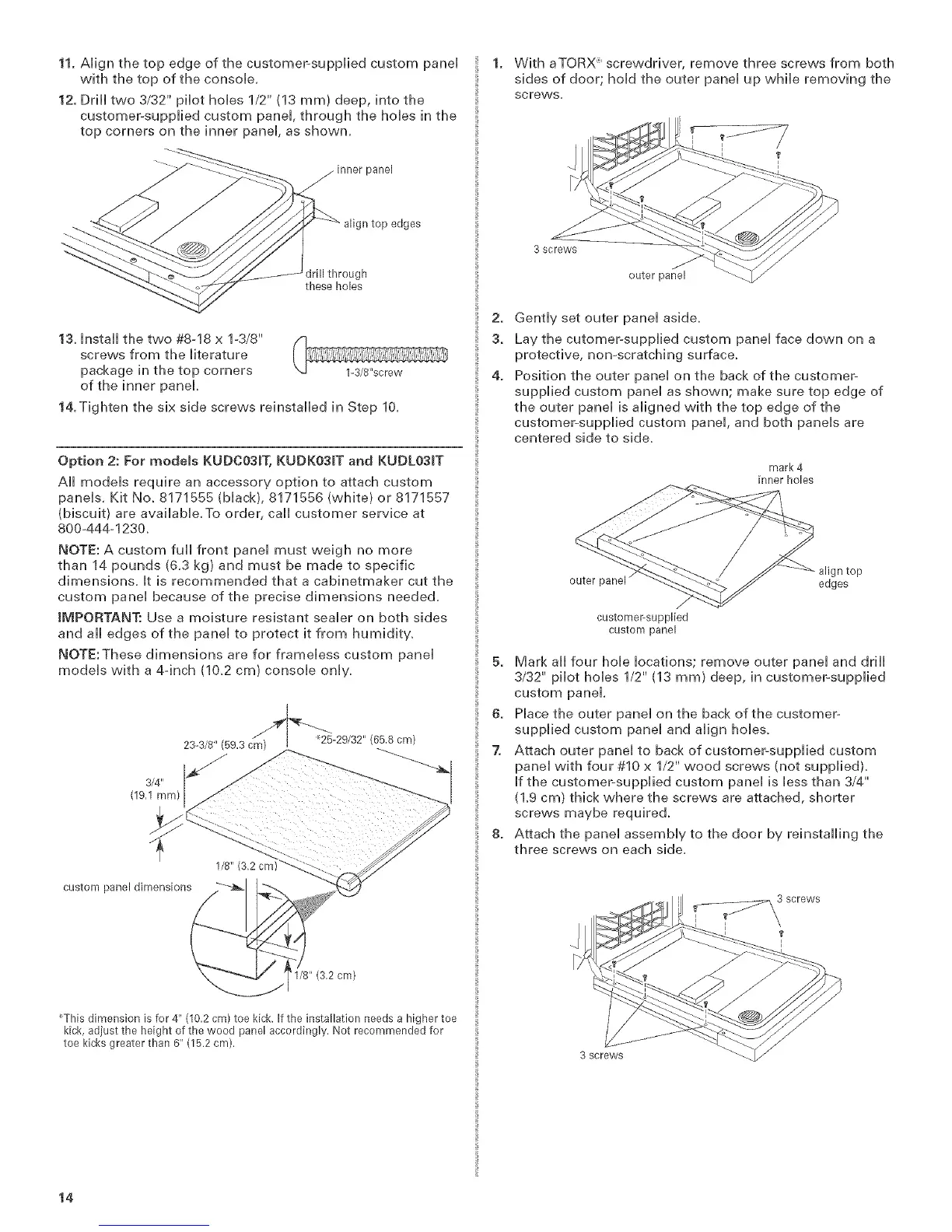

11. AHgn the top edge of the customePsuppiied custom panei
with the top of the consob,
12. DrHH two 3/32" pibt hobs 1/2" (13 ram) deep, into the
customeFsuppiied custom panei, through the hobs in the
top corners on the inner panei, as shown,
j inner panel
/
align top edges
drill through
these holes
l& hstaH the two #8o18 x 1-3/8"
screws from the iiterature
package in the top corners
of the inner panel
14.Tighten the six side screws reinstalled in Step 10,
Option 2: For models KUDC031T, KUDK03_T and KUDL031T
AH models require an accessory option to attach custom
paneis, Kit No, 8171555 (Mack), 8171556 (white) or 8171557
(biscuit) are avaHaMe, To order, call customer service at
800-444-1230_
NOTE: A custom full front panei must weigh no more
than 14 pounds (6,3 kg) and must be made to specific
dimensions, It is recommended that a cabinetmaker cut the
custom panel because of the precise dimensions needed,
IMPORTANT: Use a moisture resistant sealer on both sides
and all edges of the panel to protect it from humidit%
NOTE:These dimensions are for frameless custom panel
models with a 4-inch (10,2 cm) console only,
23-3/8" (59.3 _ (65.8 cm)
cm)_i _25-29/32"
3/4"
(19.1ram)
custom panel dimensions
I/8" (3.2
/8" (3.2 cm)
_This dimension is for 4" (10.2 cm) toe kick. If the installation needs a higher toe
kick, adjust the height of the wood panel accordingly. Not recommended for
toe kicks greater than 6" (15.2 cm).
With aTORX _ screwdriver, remove three screws from both
sides of door; hold the outer panel up while removing the
screws,
?
3screws
outer panel
2. Gently set outer panel aside,
3. Lay the cutomer-supplied custom panel face down on a
protective, non-scratching surface,
4. Position the outer panel on the back of the customer-
supplied custom panel as shown; make sure top edge of
the outer panel is aligned with the top edge of the
customer-supplied custom panel, and both panels are
centered side to side,
mark 4
inner holes
ign top
outer panel edges
customer-supplied
custom panel
5. Mark all four hole locations; remove outer panel and drill
3/32" pilot hobs 1/2" (13 ram) deep, in customeFsupplied
custom panel,
6. Place the outer panel on the back of the customer-
supplied custom panel and align holes,
7. Attach outer panel to back of customeFsupplied custom
panel with four #10 x 1/2" wood screws (not supplied),
If the customeFsupplied custom panel is less than 3/4"
(1,9 cm) thick where the screws are attached, shorter
screws maybe required,
8. Attach the panel assembly to the door by reinstalling the
three screws on each side,
_ screws
?
3 screws
