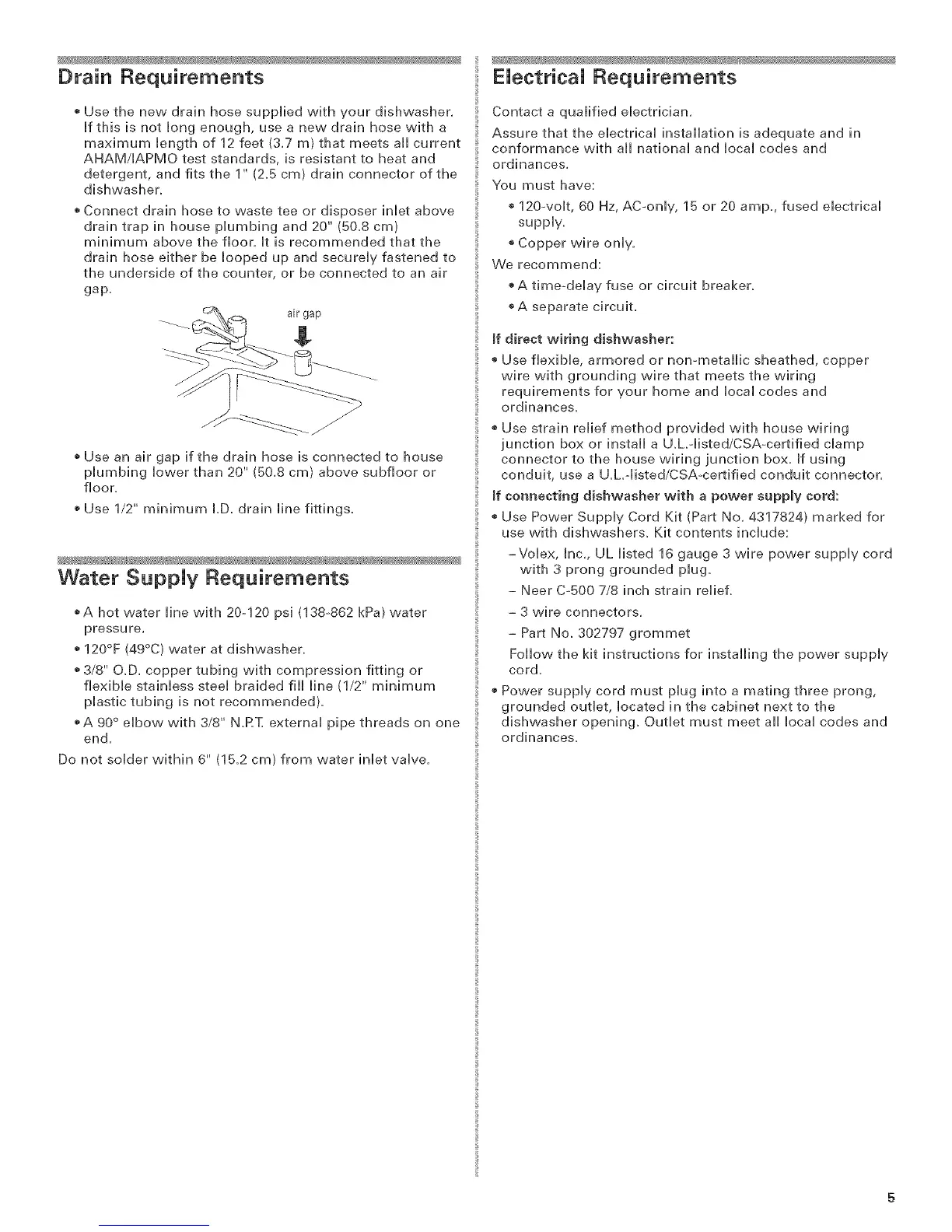

Drain Requirements
Use the new drain hose suppibd with your dishwasher.
[ftMs is not iong enough, use a new drain hose with a
maximum length of 12 feet (3.7 m) that meets ai[ current
AHAM/IAPMO test standards, is resistant to heat and
detergent, and fits the 1" (2.5 cm) drain connector of the
dishwasher.
o Connect drain hose to waste tee or disposer inlet above
drain trap in house piumbing and 20" (50.8 cm)
minimum above the floor, it is recommended that the
drain hose either be hoped up and secureiy fastened to
the underside of the counter, or be connected to an air
gap.
air gap
o Use an air gap if the drain hose is connected to house
plumbing lower than 20" (50.8 cm) above subfloor or
floor.
Use 1/2" minimum LD. drain line fittings.
Water Supply Requirements
_A hot water line with 20-120 psi (138o862 kPa) water
pressure.
o 120°F (49°C) water at dishwasher.
o 3/8" O.D. copper tubing with compression fitting or
flexible stainless steel braided fill line (1/2" minimum
plastic tubing is not recommended}.
o A 90 ° elbow with 3/8" N.RT. external pipe threads on one
end.
Do not soJder within 6" (1B.2 cm} from water inJet vaJve.
Electrical F equirements
Contact a qualified electrician.
Assure that the electrical installation is adequate and in
conformance with aii national and local codes and
ordinances.
You must have:
120_volt, 60 Hz, AC_only, 15 or 20 amp., fused electrical
suppl%
o Copper wire only.
We recommend:
o A timeodelay fuse or circuit breaker.
A separate circuit.
If direct wiring dishwasher:
o Use flexible, armored or non-metallic sheathed, copper
wire with grounding wire that meets the wiring
requirements for your home and local codes and
ordinances.
Use strain relief method provided with house wiring
junction box or install a U.LMisted/CSA-certified clamp
connector to the house wiring junction box. If using
conduit, use a U.h-listed/CSAocertified conduit connector.
If connecting dishwasher with a power supply cord:
Use Power Supply Cord Kit (Part No. 4317824) marked for
use with dishwashers. Kit contents include:
-Volex, [nc., UL listed 16 gauge 3 wire power supply cord
with 3 prong grounded plug.
- Neer C°500 7/8 inch strain relieL
- 3 wire connectors.
- Part No. 302797 grommet
Follow the kit instructions for installing the power supply
cord.
o Power supply cord must plug into a mating three prong,
grounded outlet, located in the cabinet next to the
dishwasher opening. Outlet must meet aii local codes and
ordinances.
