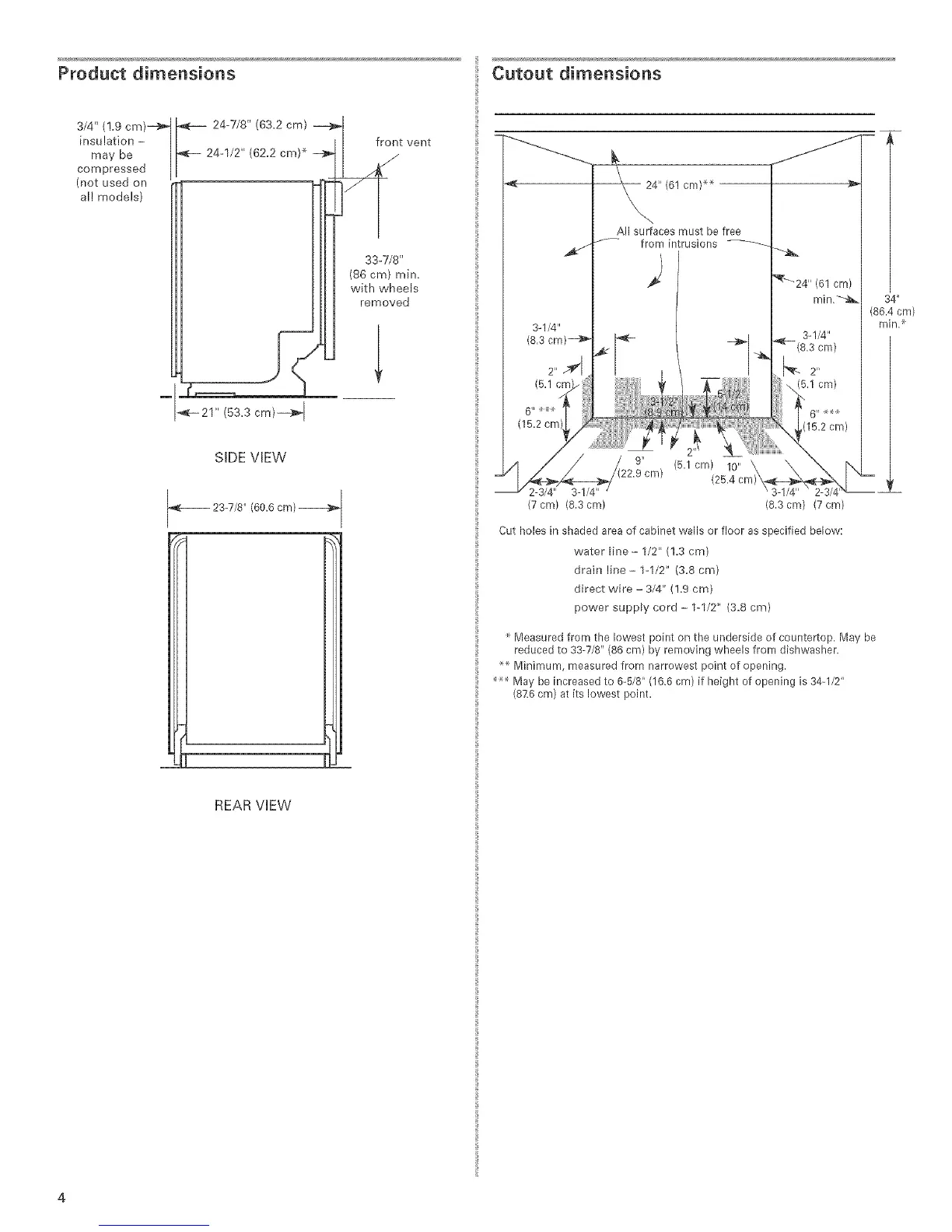

Product dimensions
3/4" (!.9 cm)_
insu lation -
may be
compressed
(not used on
al! models)
_F- 21" (53.3 cm)_
SIDE VIEW
23-7/6" (60.6 cm)
REAR VIEW
Cutout dimensions
----------------__ _
cm) _
All surfaces must be free
_-- from intrusions
3-1/4"
(8.3cm)
2"
(5.1cm)
r(15.2 cm)
(5.1 cm) 10" \
(25.4 cm)'
2-3/4" 3-I/4"
(7 cm) (6,3 cm) (6,3 cm) (7 cm)
Cut holes in shaded area of cabinet walls el' floor as specified below:
water line - 1/2" (1,3 cm)
drain line - 1-I/2" (3.8 cm)
direct wire - 3/4" (!,9 cm)
power supply cord - 1-1/2" (3.8 cm)
Measured from the lowest point on the underside of countertop. May be
reduced to 33-7/8" (86 cm) by removing wheels from dishwasher.
_ Minimum, measured from narrowest point of opening,
May be increased to 6-5/8" (16.6 cm) [f height of opening is 34-I/2"
(8}:6 cm) at its lowest point.
