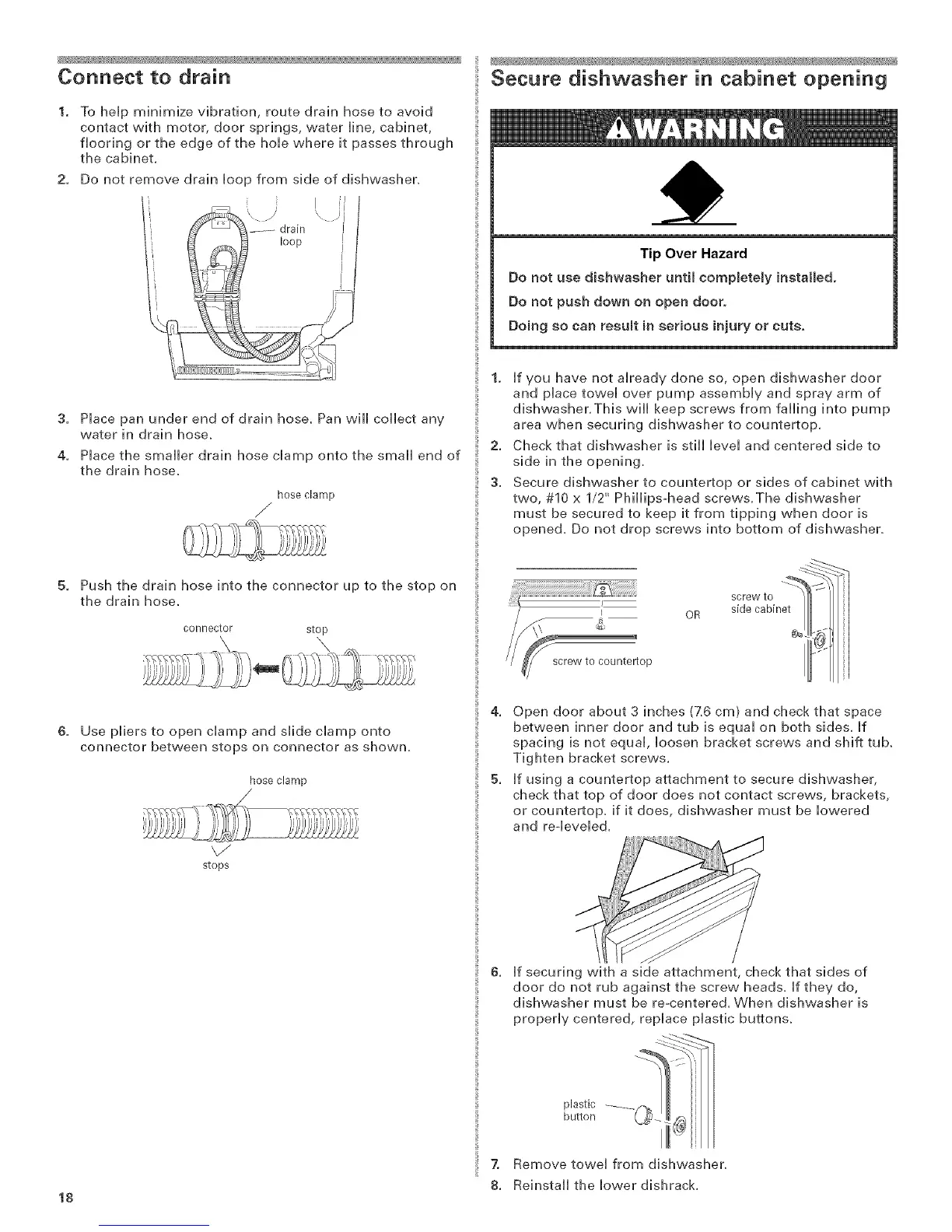

Connect to drain
To heHp minimize vibration, route drain hose to avoid
contact with motor, door springs, water Hine, cabinet,
flooring or the edge of the hoHe where it passes through
the cabinet.
2. Do not remove drain Hoop from side of dishwasher.
3=
4.
PHacepan under end of drain hose. Pan wHHcoHHectany
water in drain hose.
Phce the smaller drain hose champ onto the small end of
the drain hose.
hose clamp
/
5. Push the drain hose into the connector up to the stop on
the drain hose.
connector stop
6. Use pHiers to open champ and sHide champ onto
connector between stops on connector as shown.
hose clamp
\,/"
stops
18
Secure dishwasher in cabinet opening
Tip Over Hazard
Do not use dishwasher until compmetemy installed.
Do not push down on open door.
Doing so can resumt in serious injury or cuts,
1. If you have not already done so, open dishwasher door
and place towel over pump assembly and spray arm of
dishwasher.This will keep screws from falling into pump
area when securing dishwasher to countertop.
2. Check that dishwasher is still level and centered side to
side in the opening.
3. Secure dishwasher to countertop or sides of cabinet with
two, #10 x 1/2" Phillips-head screws.The dishwasher
must be secured to keep it from tipping when door is
opened. Do not drop screws into bottom of dishwasher.
OR
4=
6=
7.
8.
Open door about 3 inches (7.6 cm) and check that space
between inner door and tub is equal on both sides. If
spacing is not equal, loosen bracket screws and shift tub.
Tighten bracket screws.
If using a countertop attachment to secure dishwasher,
check that top of door does not contact screws, brackets,
or countertop, if it does, dishwasher must be lowered
and reoleveled.
If securing withasideattachmenl check that sides of
door do not rub against the screw heads. If they do,
dishwasher must be reocentere& When dishwasher is
properly centered, replace )lastic buttons.
i
plastic _
button
Remove towel from dishwasher_
Reinstall the lower dishrack.
