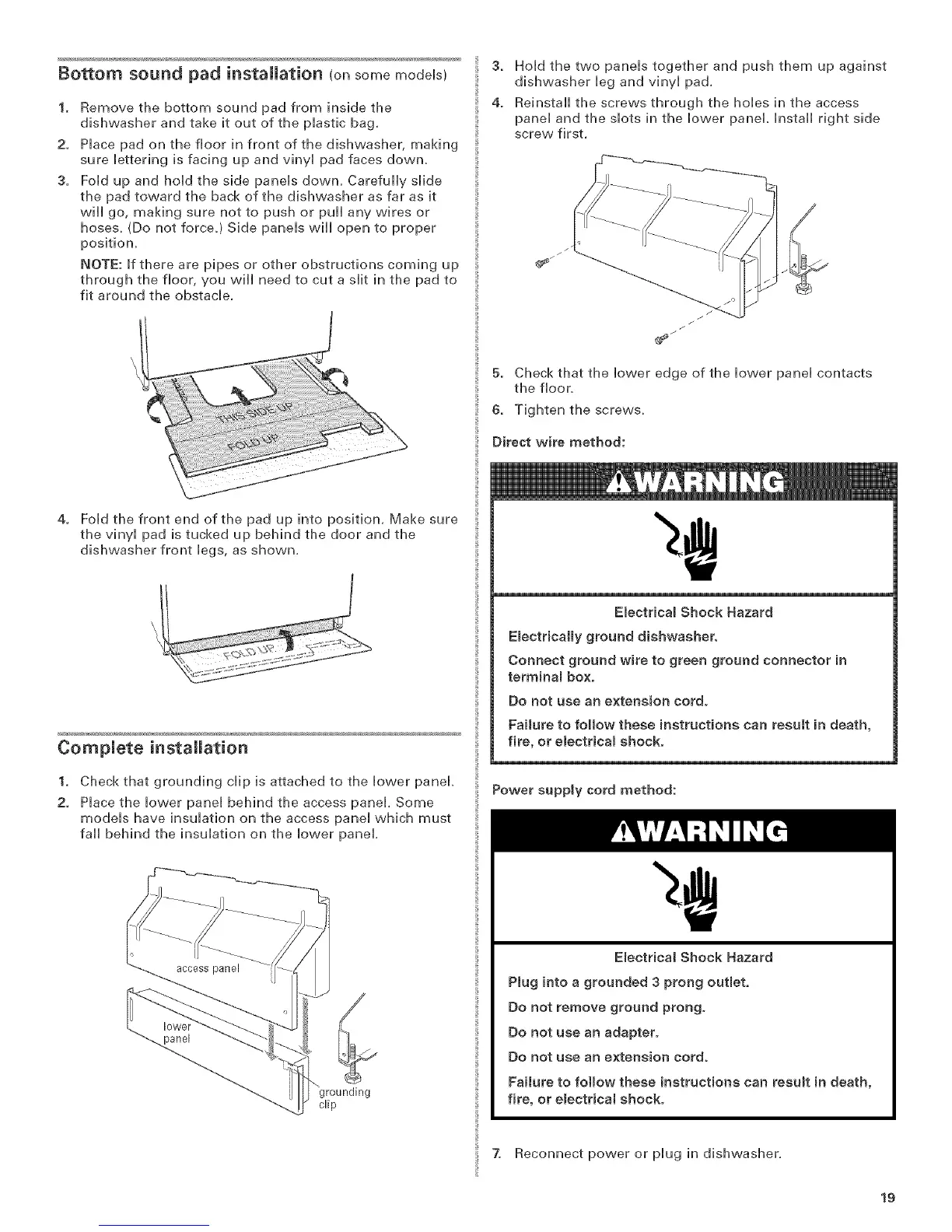

Bottom sound pad installation (on somemodels)
1,
2.
3.
Remove the bottom sound pad from inside the
dishwasher and take it out of the plastic bag,
Hace pad on the floor in front of the dishwasher, making
sure lettering is facing up and vinyl pad faces down,
Foil up and hoH the side paneis down, Carefully siide
the pad toward the back of the dishwasher as far as it
vvHi go, making sure not to push or pui[ any wires or
hoses, (Do not force,) Side panels wii[ open to proper
position,
NOTE: If there are pipes or other obstructions coming up
through the floor, you will need to cut a slit in the pad to
fit around the obstacle,
4. Fold the front end of the pad up into position, Make sure
the vinyl pad is tucked up behind the door and the
dishwasher front legs, as shown,
Complete installation
1,
2.
Check that grounding clip is attached to the lower panel,
Place the lower panel behind the access panel, Some
models have insulation on the access panel which must
fall behind the insulation on the lower panel,
grounding
clip
3. Hold the two panels together and push them up against
dishwasher leg and vinyl pad,
4. Reinstall the screws through the holes in the access
panel and the slots in the lower panel, Install right side
screw first,
/
/
/
5. Check that the lower edge of the lower panel contacts
the floor,
6. Tighten the screws,
Direct wire method:
E[ectricaB Shock Hazard
EBectricaHy ground dishwasher.
Connect ground wire to green ground connector in
terminaB box.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electricam shock.
Power supply cord method:
Electrical Shock Hazard
Plug into a grounded 3 prong outmeto
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
7. Reconnect power or plug in dishwasher,
19
