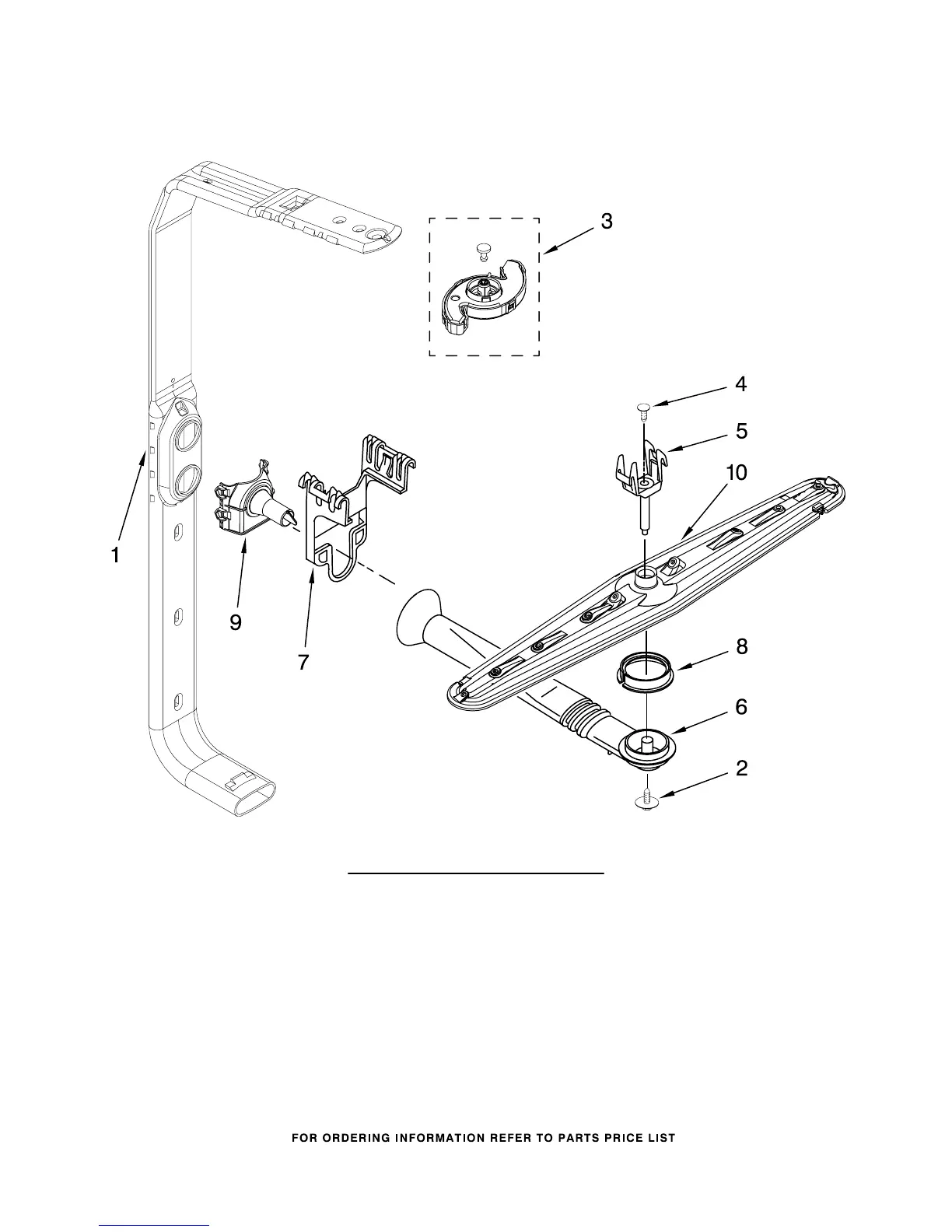

UPPER WASH AND RINSE PARTS
12
For Models: KUDK03ITBL3, KUDK03ITWH3, KUDK03ITBT3, KUDK03ITBS3
(Black) (White) (Biscuit) (Stainless)
W10200482
Illus. Part
No. No. DESCRIPTION
1 W10077896 Feed Tube
Assembly
2 8533889 Screw
3 8557720 Sprayarm, 3rd
Level
4
W10118464 Cover, Screw
5
W10082867 Mount
6
W10082833 Manifold
7
W10082832 Hanger
8 8268433 Seal, Sprayarm
9
W10077923 Nozzle−Feed
10
W10082841 Sprayarm
