KitchenAid KUDK03ITBL3 - Page 2

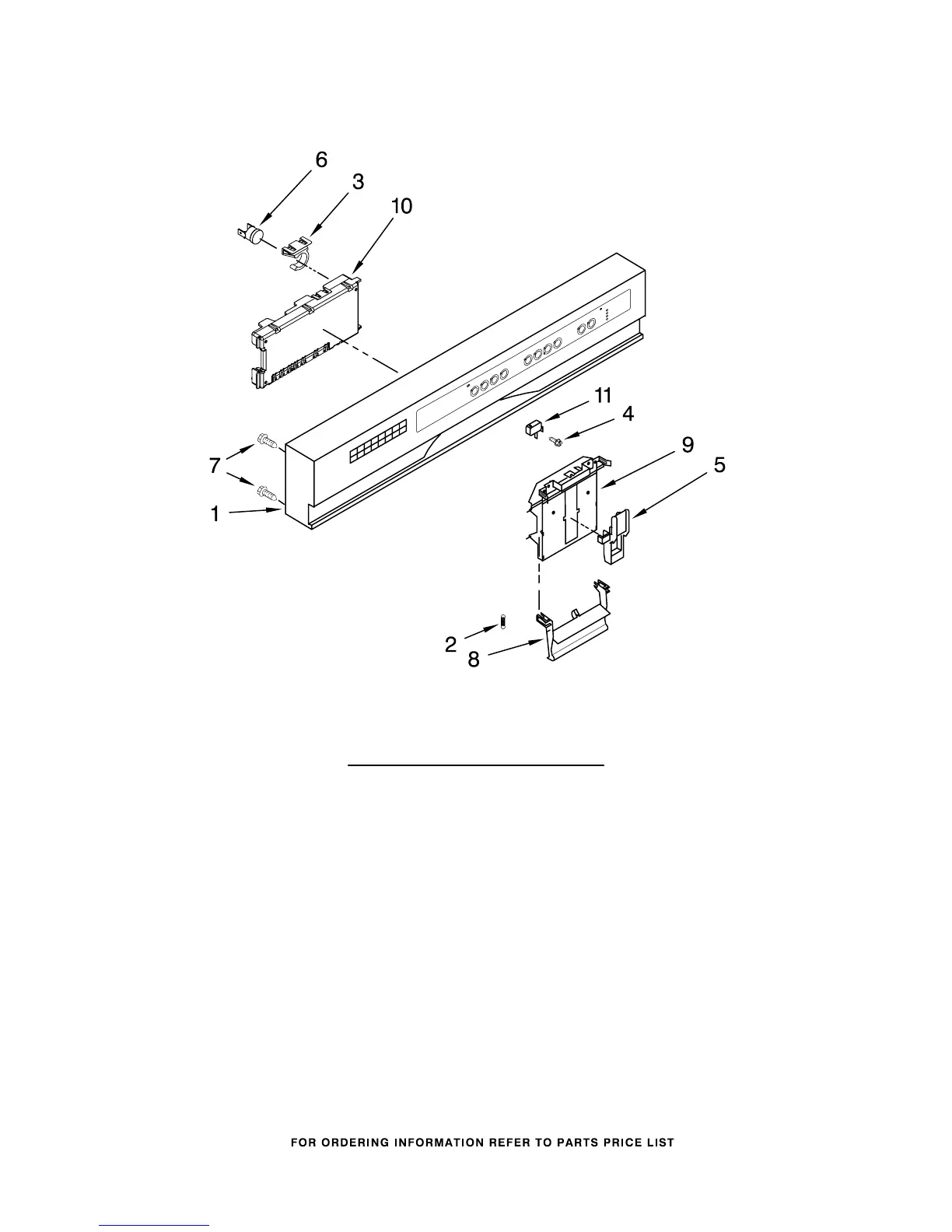

CONTROL PANEL PARTS
2
For Models: KUDK03ITBL3, KUDK03ITWH3, KUDK03ITBT3, KUDK03ITBS3
(Black) (White) (Biscuit) (Stainless)
W10200482
Illus. Part
No. No. DESCRIPTION
1 Console Assembly
(Includes Insert)
W10084153 Black
W10084154 White
W10084155 Biscuit
2 8268540 Spring, Handle
3 8546546 Clip, BI−Metal
4 3400412 Screw
5 8524471 Actuator, Latch
6 661663 BI−Metal
7 3369051 Screw
8 Handle, Latch
8269117 Black
8269167 White
8269168 Biscuit
9 8524476 Bolt, Latch
10
W10084142 Control,
Electronic
11 8269209 Switch, Door
