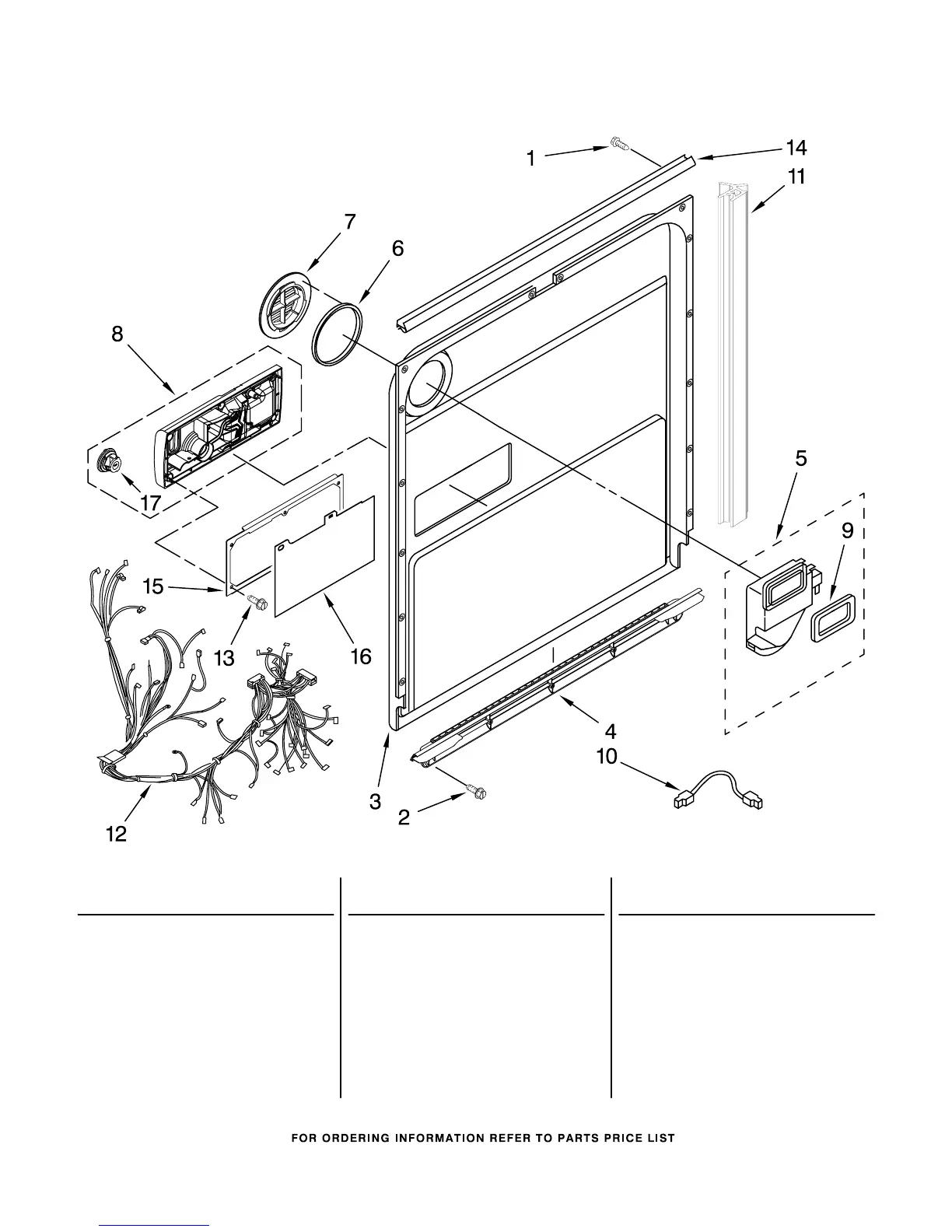

DOOR AND LATCH PARTS
3
For Models: KUDK03ITBL3, KUDK03ITWH3, KUDK03ITBT3, KUDK03ITBS3
(Black) (White) (Biscuit) (Stainless)
W10200482
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3
W10056249 Inner Door
Mastic Assembly
(Also Order
Item 6)
4
W10077883 Inlet, Air
5 8572583 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7
W10077877 Deflector, Vent
(Also Order
Item 6)
8
W10077882 Dispenser,
Assembly
9 8269258 Seal, Front
10 8545608 Harness, Vent
Motor
11 8574160 Seal, Side
12 8573176 Wiring Harness
13 8281154 Screw
14 8535660 Seal,
Console/door
15 8535637 Bracket,
Dispenser
16 8531865 Shield,
Dispenser
17
W10077881 Knob, Rinse Aid
