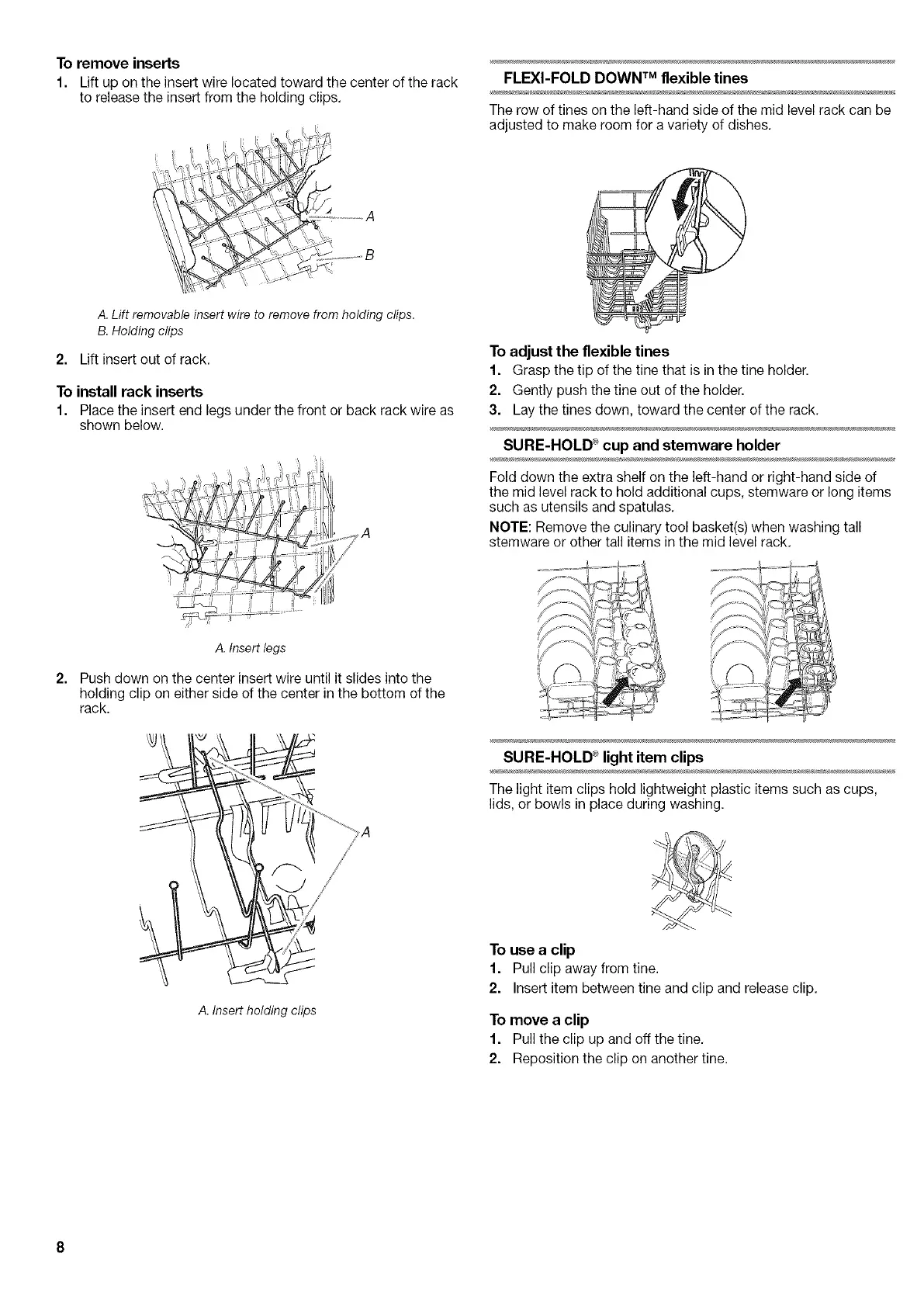

To remove inserts
1. Lift up on the insert wire located toward the center of the rack
to release the insert from the holding clips.
A. Lift removable insert wire to remove from holding clips.
B. Holding clips
2. Lift insert out of rack.
To install rack inserts
1. Place the insert end legs under the front or back rack wire as
shown below.
FLEXI-FOLD DOWN TM flexible tines
The row of tines on the left-hand side of the mid level rack can be
adjusted to make room for a variety of dishes.
To adjust the flexible tines
1. Grasp the tip of the tine that is in the tine holder.
2. Gently push the tine out of the holder.
3. Lay the tines down, toward the center of the rack.
SURE-HOLD _ cup and stemware holder
Fold down the extra shelf on the left-hand or right-hand side of
the mid level rack to hold additional cups, stemware or long items
such as utensils and spatulas.
NOTE: Remove the culinary tool basket(s) when washing tall
stemware or other tall items in the mid level rack.
2=
A. Insert legs
Push down on the center insert wire until it slides into the
holding clip on either side of the center in the bottom of the
rack.
,A
A. Insert holding clips
SURE-HOLD c_light item clips
The light item clips hold lightweight plastic items such as cups,
lids, or bowls in place during washing.
To use a clip
1. Pull clip away from tine.
2. Insert item between tine and clip and release clip.
To move a clip
1. Pull the clip up and off the tine.
2. Reposition the clip on another tine.
