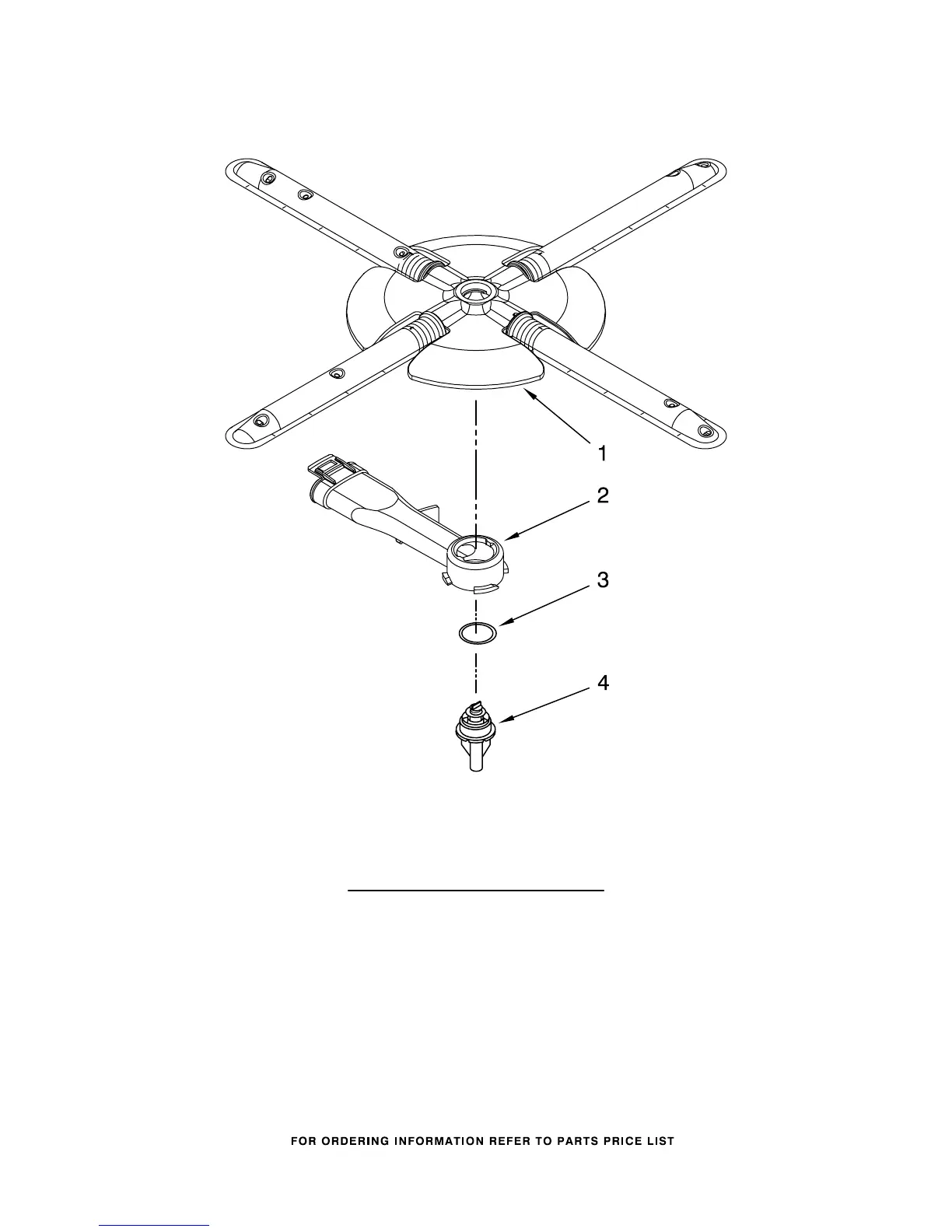

LOWER WASHARM AND STRAINER PARTS
14
For Models: KUDS03FTBL3, KUDS03FTWH3, KUDS03FTBT3, KUDS03FTSS3
(Black) (White) (Biscuit) (Stainless)
W10202042
Illus. Part
No. No. DESCRIPTION
1 W10077965 Wash Arm Assembly
2
W10077899 Cap, Internal
Rear Feed
(Also Order
Item 3)
3 8268340 Seal, Sprayarm
4
W10077898 Hub, Lower
Sprayarm
(Also Order
Item 3)
