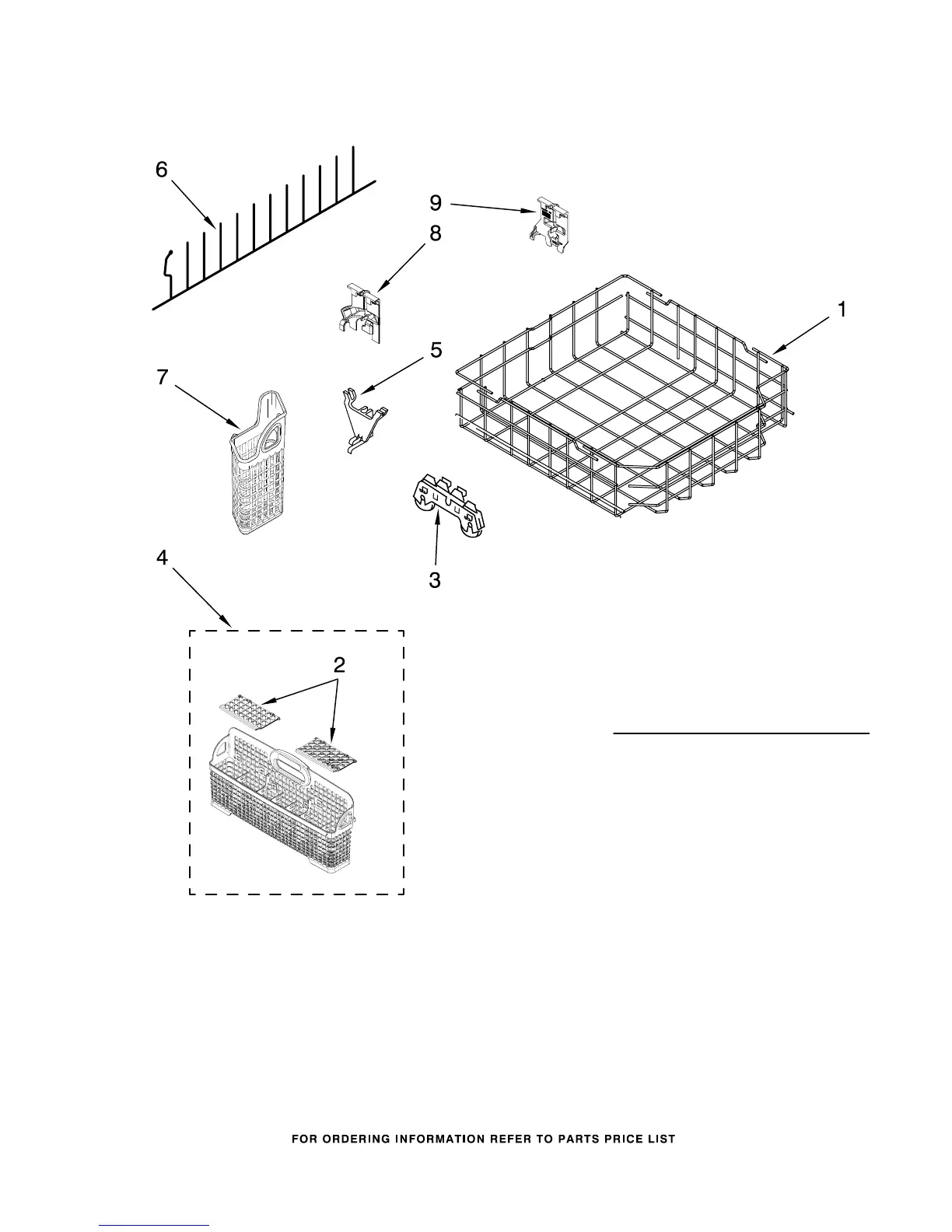

LOWER RACK PARTS
13
For Models: KUDS03FTBL3, KUDS03FTWH3, KUDS03FTBT3, KUDS03FTSS3
(Black) (White) (Biscuit) (Stainless)
W10202042
Illus. Part
No. No. DESCRIPTION
1 8519680 Lower Rack
2 Lid, Basket
Silverware
8519695 Left Side
8519663 Right Side
3
W10082868 Wheel & Transport
Assembly
4 8531233 Basket,
Silverware
5
W10078227 Pivot, Tine Row
6 8519682 Tine, Row
7 8519702 Basket, Utensil
8
W10078215 Retainer, Tine Row
(Combo)
9
W10175279 Retainer, Tine Row
