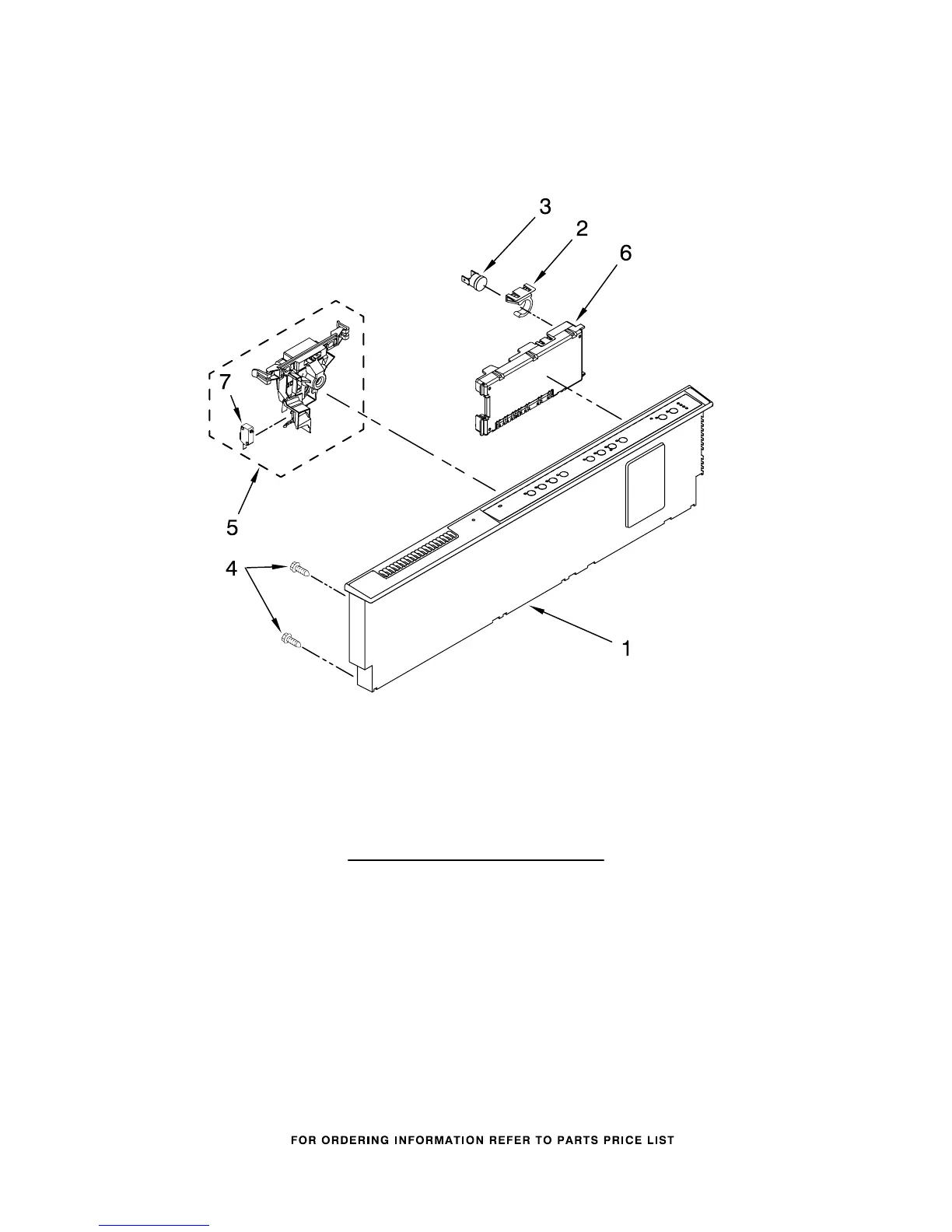

CONTROL PANEL PARTS
2
For Models: KUDS03FTBL3, KUDS03FTWH3, KUDS03FTBT3, KUDS03FTSS3
(Black) (White) (Biscuit) (Stainless)
W10202042
Illus. Part
No. No. DESCRIPTION
1 Console Assembly
(Includes Insert)
W10084174 Black
W10084175 White
W10084176 Biscuit
W10084177 Stainless
2 8546546 Clip, BI−Metal
3 661663 Bi−Metal
4 3369051 Screw
5
W10077360 Latch Assembly
6
W10084141 Control,
Electronic
7
W10134019 Switch, Door
