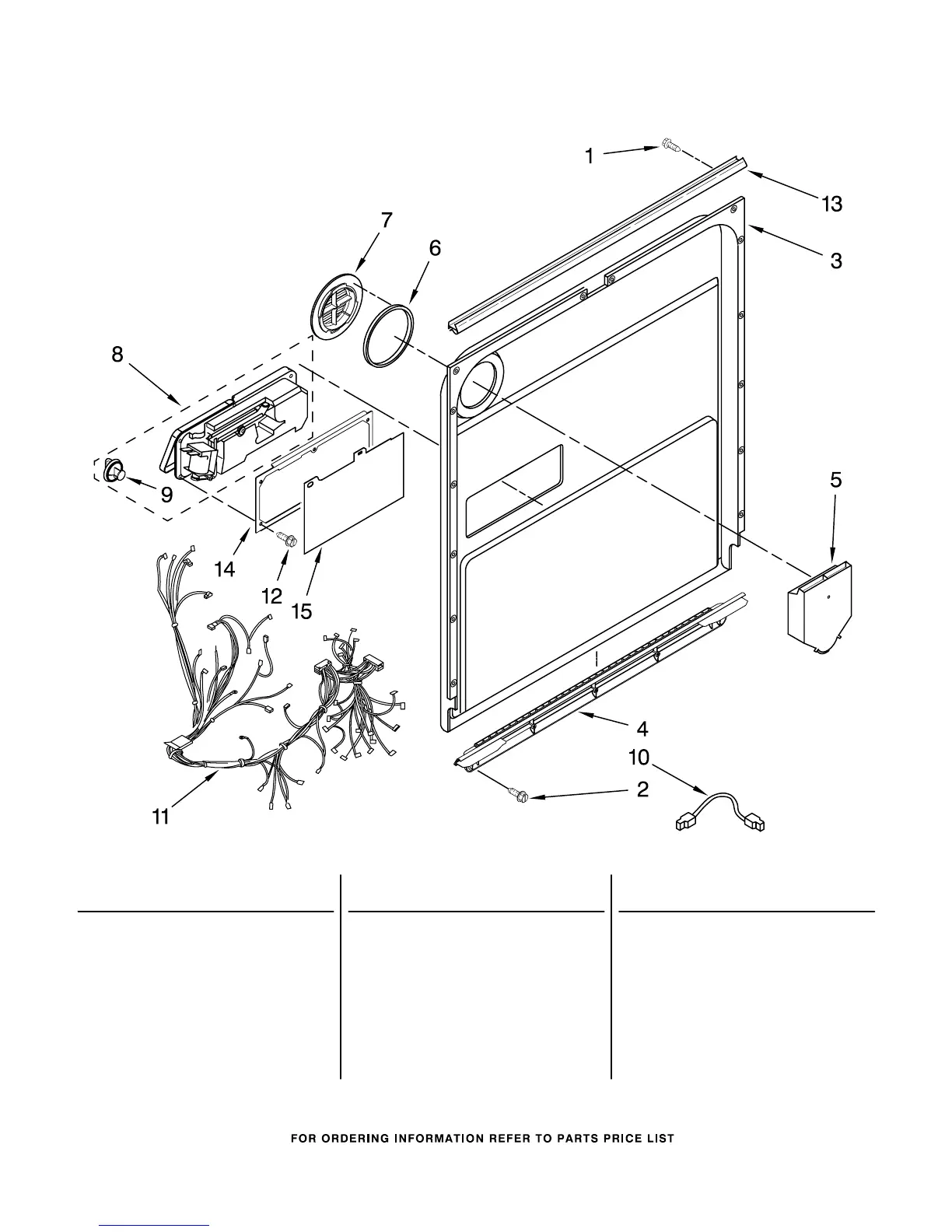

DOOR AND LATCH PARTS
3
For Models: KUDS03FTBL3, KUDS03FTWH3, KUDS03FTBT3, KUDS03FTSS3
(Black) (White) (Biscuit) (Stainless)
W10202042
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3
W10056249 Inner Door
Mastic Assembly
(Also Order
Item 6)
4
W10077883 Inlet, Air
5 8572611 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7
W10077877 Deflector, Vent
(Also Order
Item 6)
8
W10224431 Dispenser
Assembly
9
W10077881 Knob, Rinse Aid
10 8545608 Harness, Vent
Motor
11
W10078202 Wiring Harness
12
W10177098 Screw
13 8535660 Seal,
Console/Door
14 8535637 Bracket
Dispenser
15 8531865 Shield,
Dispenser
