5

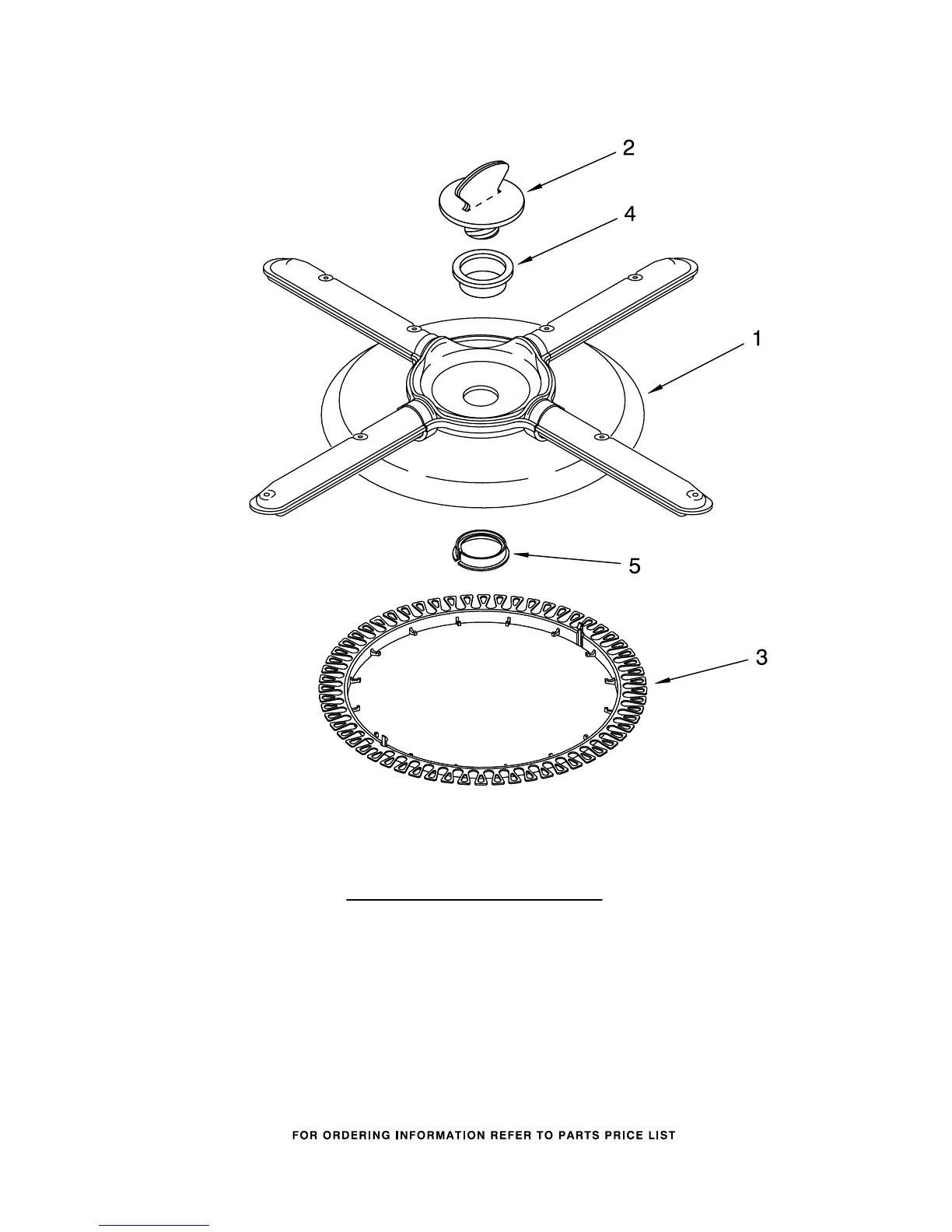

LOWER WASHARM AND STRAINER PARTS
For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1
(Black) (White) (Almond)
4172113
Illus. Part
No. No. DESCRIPTION
1 9742947 Wash Arm Assembly
2 9742945 Nut, Washarm
3 9742646 Strainer (Coarse)
4 9742946 Bearing, Radial
5 3376846 Seal, Sprayarm
