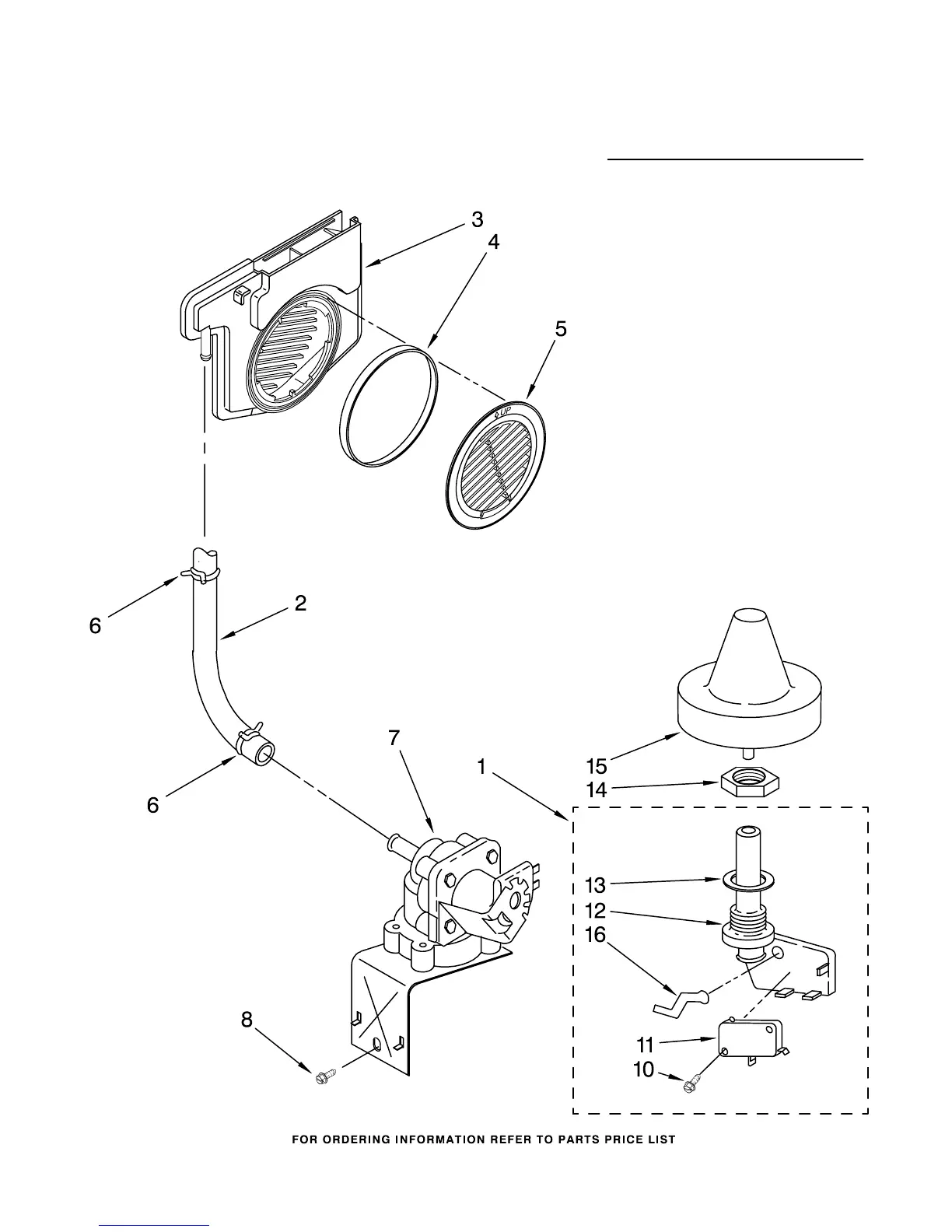

FILL AND OVERFILL PARTS
7
For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1
(Black) (White) (Almond)
4172113
Illus. Part
No. No. DESCRIPTION
1 9742938 Control, Overfill
Assembly
(Also Order
Item 14)
2 9742727 Hose, Inlet
3 9742783 Water Inlet
Assembly
(Includes
Items 4 & 5)
4 9742787 Gasket
5 9742786 Bezel, Inlet
6 301958 Clamp, Hose
7 9743559 Fill Valve
Assembly
8 304392 Screw
10 4159424 Screw
11 9740811 Switch, Overfill
Control
12 9742937 Standpipe,
Overfill
13 4161670 Gasket, Flat
14 4161596 Nut, Standpipe
15 9743070 Float & Retainer
Assembly
16 4171116 Lever, Overflow
Switch
To Next Page
