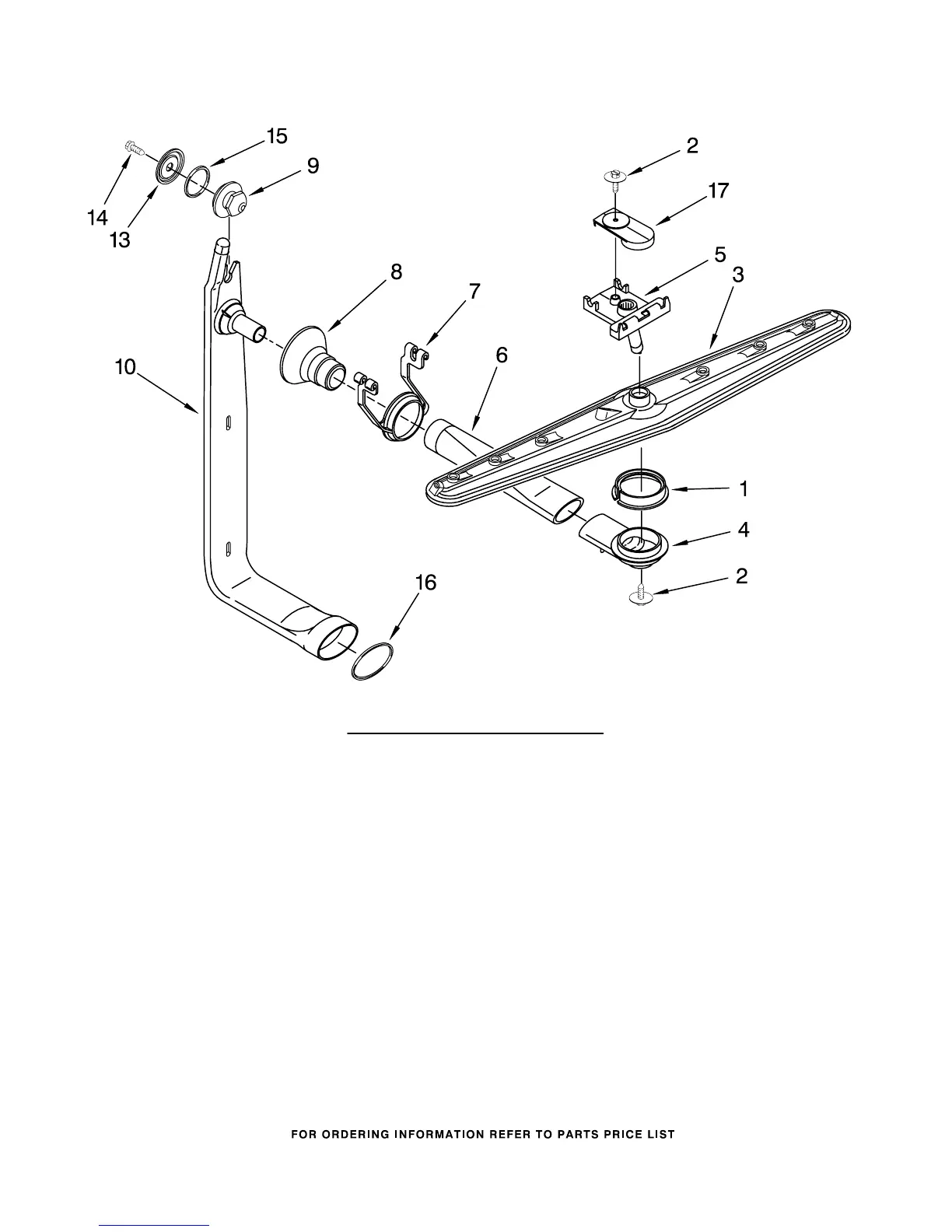

UPPER WASH AND RINSE PARTS
8
For Models: KUDS24SEBL1, KUDS24SEWH1, KUDS24SEAL1
(Black) (White) (Almond)
4172113
Illus. Part
No. No. DESCRIPTION
1 3376846 Seal, Sprayarm
2 3400002 Screw
3 9742989 Sprayarm, Upper
(Also Order
Item 1)
4 9742992 Manifold, Sprayarm
5 9742994 Mount, Tiered
6 9742995 Tube, Connector
7 9742997 Holder, Water
Inlet Funnel
8 9743210 Funnel
9 9743473 Connector
(Includes Items
13, 14 & 15)
10 9742950 Feed Tube
Assembly
13 9743475 Washer
14 9740848 Screw
15 9743474 Gasket, Connector
16 9742953 Seal, Tube
17 9743194 Mount, Top
Upper Sprayarm
