929/32"
(25.2 cm)
p edge
J

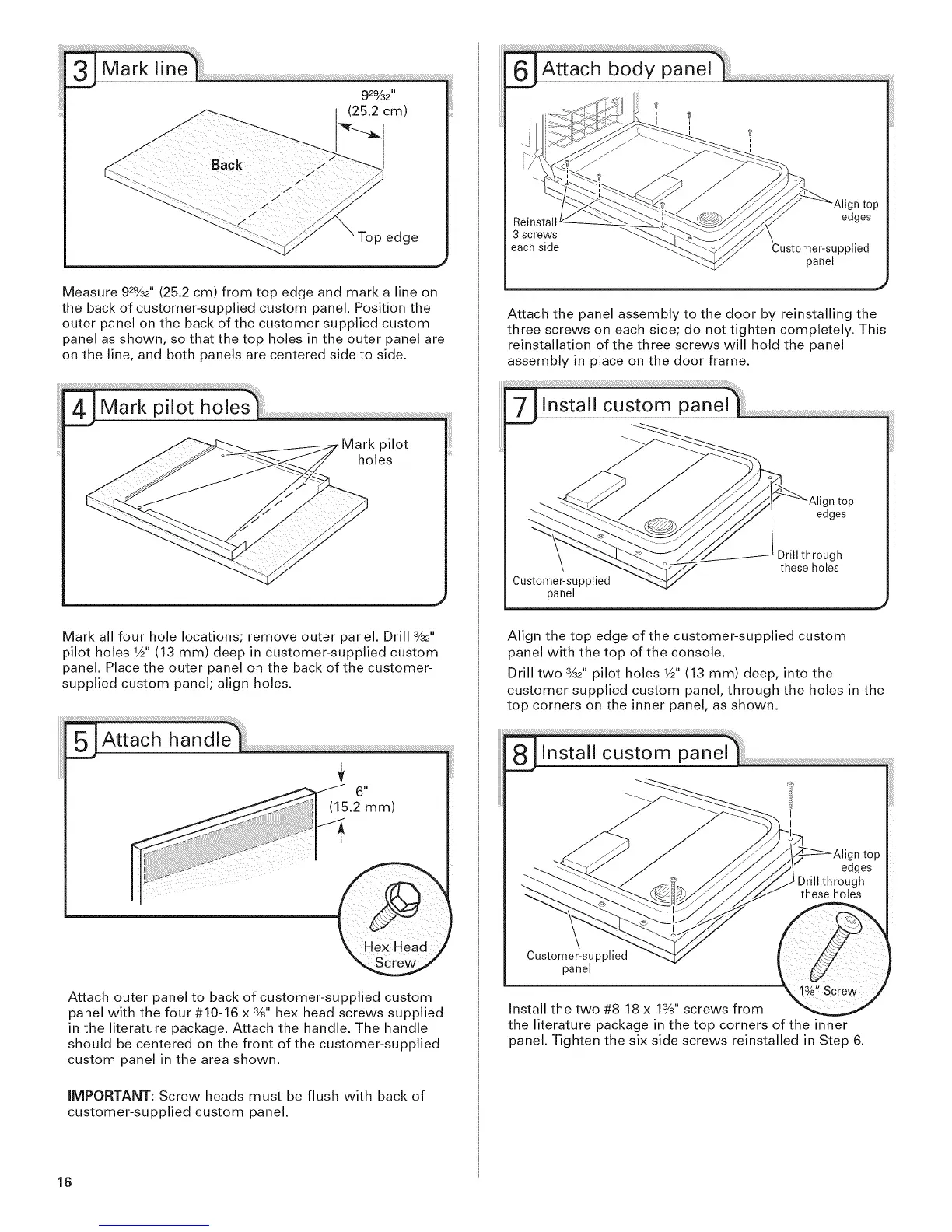

Measure 92%2'' (25.2 cm) from top edge and mark a line on
the back of customer-supplied custom panel. Position the
outer panel on the back of the customer-supplied custom
panel as shown, so that the top holes in the outer panel are
on the line, and both panels are centered side to side.
holes
Mark all four hole locations; remove outer panel. Drill 3/32"
pilot holes W' (13 mm) deep in customer-supplied custom
panel. Place the outer panel on the back of the customer-
supplied custom panel; align holes.
Hex Head
Attach outer panel to back of customer-supplied custom
panel with the four #10-16 x 3/8"hex head screws supplied
in the literature package. Attach the handle. The handle
should be centered on the front of the customer-supplied
custom panel in the area shown.
IMPORTANT: Screw heads must be flush with back of
customer-supplied custom panel.
Attach body panel
I
R edges
3 screws
each side Customer-supplied
panel
Attach the panel assembly to the door by reinstalling the
three screws on each side; do not tighten completely. This
reinstallation of the three screws will hold the panel
assembly in place on the door frame.
top
edges
Drill through
these holes
Customer-supplied
panel
Align the top edge of the customer-supplied custom
panel with the top of the console.
Drill two 3A2"pilot holes 1/2"(13 mm) deep, into the
customer-supplied custom panel, through the holes in the
top corners on the inner panel, as shown.
edges
)rill through
these holes
Customer-supplied
panel
Install the two #8-18 x 13/8"screws from
the literature package in the top corners of the inner
panel. Tighten the six side screws reinstalled in Step 6.
16
