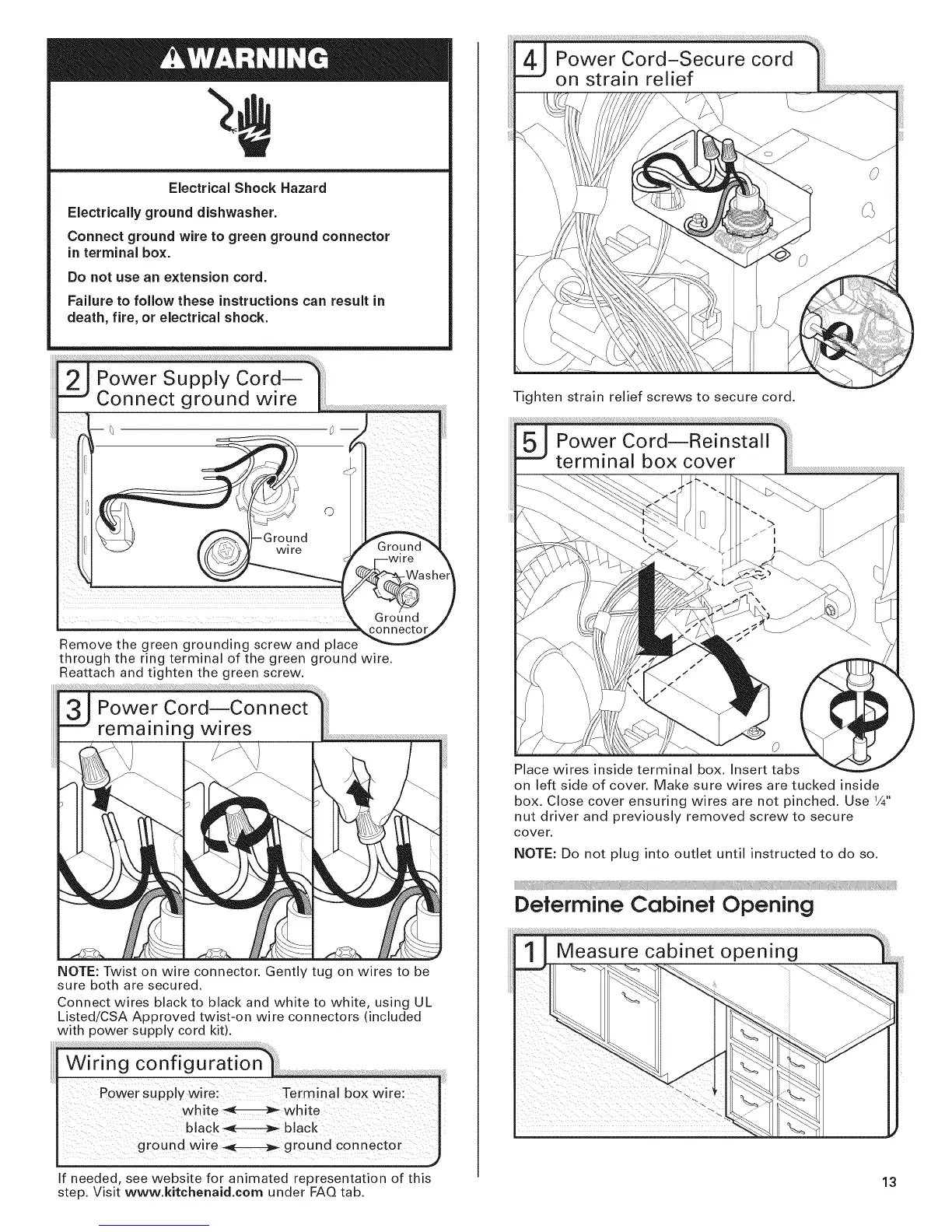

ElectricalShock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector
in terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
--' Connect ground wire
_-_-.._ _,_'_ Gr°Urnd _q
ash
Groun )
Remove the green grounding screw and place_ _ot_ _
through the ring terminal of the green ground wire.
Reattach and tighten the green screw.
NOTE: Twist on wire connector. Gently tug on wires to be
sure both are secured.
Connect wires black to black and white to white, using UL
Listed!CSA Approved twist-on wire connectors (included
with power supply cord kit).
P0wei Supp!y wire: Termina! box Wire:
.... white _ white I
biack _ b!ack i
ground w!re _ ground connecto r
If needed, see website for animated representation of this
step. Visit www.kitchenaid.eem under FAQ tab.
Tighten strain relief screws to secure cord.
Place wires inside terminal box. insert tabs
on left side of cover. Make sure wires are tucked inside
box. Close cover ensuring wires are not pinched. Use V4"
nut driver and previously removed screw to secure
cover.
NOTE: Do not plug into outlet until instructed to do so.
1;1; i ;;;;;;;;;;;;;i ;;;} :;:;:;:;:;;:;:;
Determine Cabinet Opening
13
