KitchenAid KVIB606DSS User Manual

10

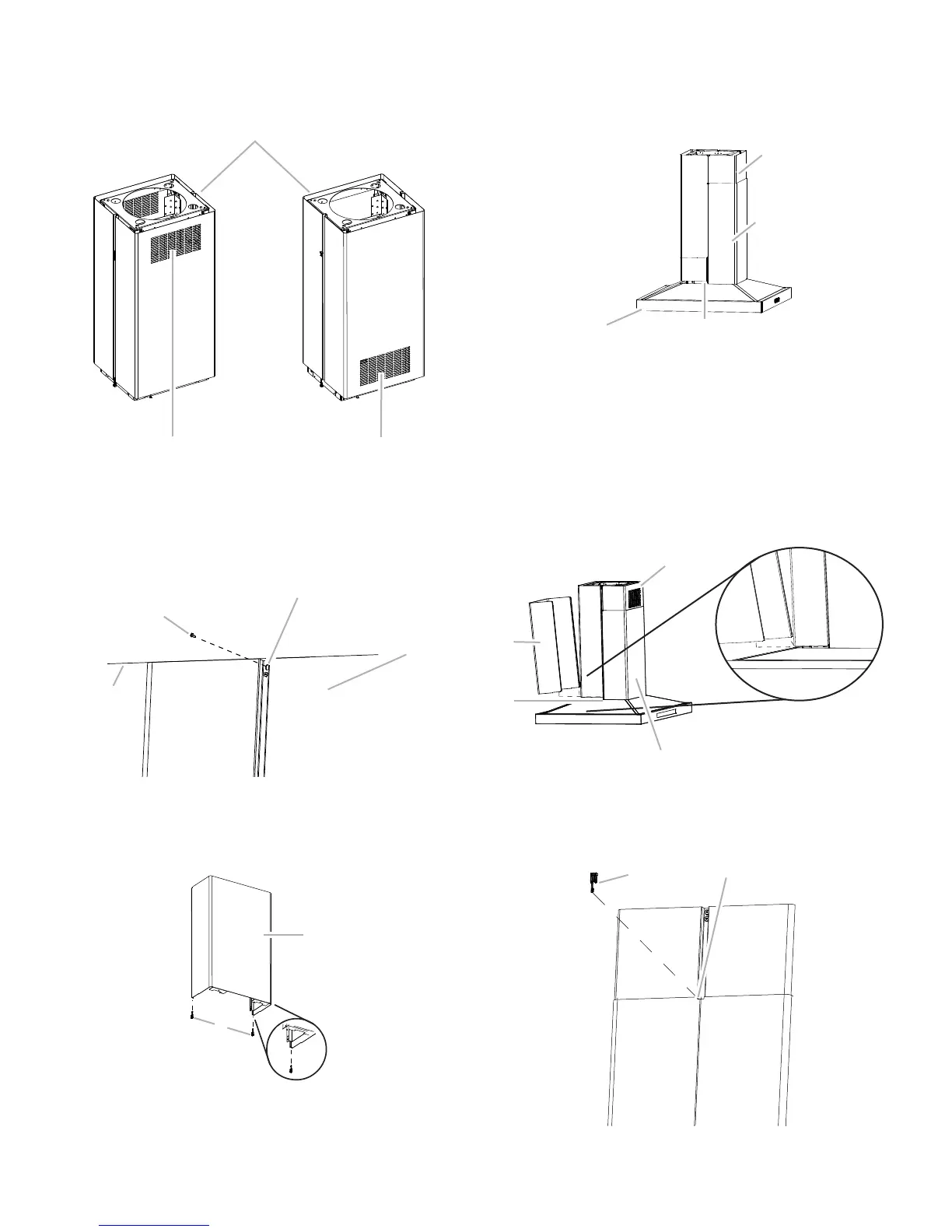

NOTE: For non-vented (recirculating) installation, the slotted
holes in the upper duct covers will be visible when assembled.
For vented installations, the slotted holes will be hidden down
inside the lower duct covers.
3. Slide the upper duct covers up the frame to the ceiling, and
then secure to the upper horizontal support with
2 - 3.5 x 6.5 mm screws.
4. Place the long end of the plastic clips (2) into the bottom of
the front lower duct cover.
5. Install the lower duct cover (front) to the range hood canopy.
Spread the lower duct cover opening slightly and position it
over the upper duct cover. Set the lower duct cover in place.
Position so the flanges of the lower duct cover set into the
flanges of the upper duct covers.
6. Install the lower duct cover (rear) to the range hood canopy.
Spread the lower duct cover opening slightly and position it
over the upper duct cover. Set the lower duct cover in place.
Position so the flanges of the lower duct cover set into the
flanges of the upper duct cover. Make sure the front and rear
lower duct covers mate properly.
NOTE: When assembling the rear lower duct cover to the front
lower duct cover, the flange (both sides) must be placed over the
plastic clip to secure the lower duct covers together at the bottom.
7. Secure the lower duct covers together at the top using
plastic clips (2). Use one plastic clip on each side.
A. Top toward ceiling
B. Slots installed up for non-vented installations
C. Slots installed down for vented installations
A. 3.5 x 6.5 mm screw
B. Slotted holes (2)
C. Upper duct covers
D. Ceiling
A. Lower duct cover - (front)
B. Plastic clips (2) (long end for front placement)
A
B
C
B
C
A
D
B
A
A. Range hood canopy
B. Plastic clips
C. Lower duct covers
D. Upper duct covers
A. Lower duct cover (rear)
B. Plastic clips
C. Lower duct covers
D. Upper duct covers
A. Plastic clips (2)
B. Lower duct covers top clip area
A
B
D
C
A
B
D
C
A
B

KitchenAid KVIB606DSS Specifications

General

Color	stainless steel
Hood Type	island
Venting Type	convertible
Temperature Sensor	yes
Number of Fan Speeds	3
CFM	600 cubic feet per minute
Filters	1
Control Type	touch pad
Delay Start	no
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	27 inches
Height	32 1/2 inches
Width	36 inches
Net Weight	102 pounds
