Klarfit Multitrainer - Page 20

20
EN
6

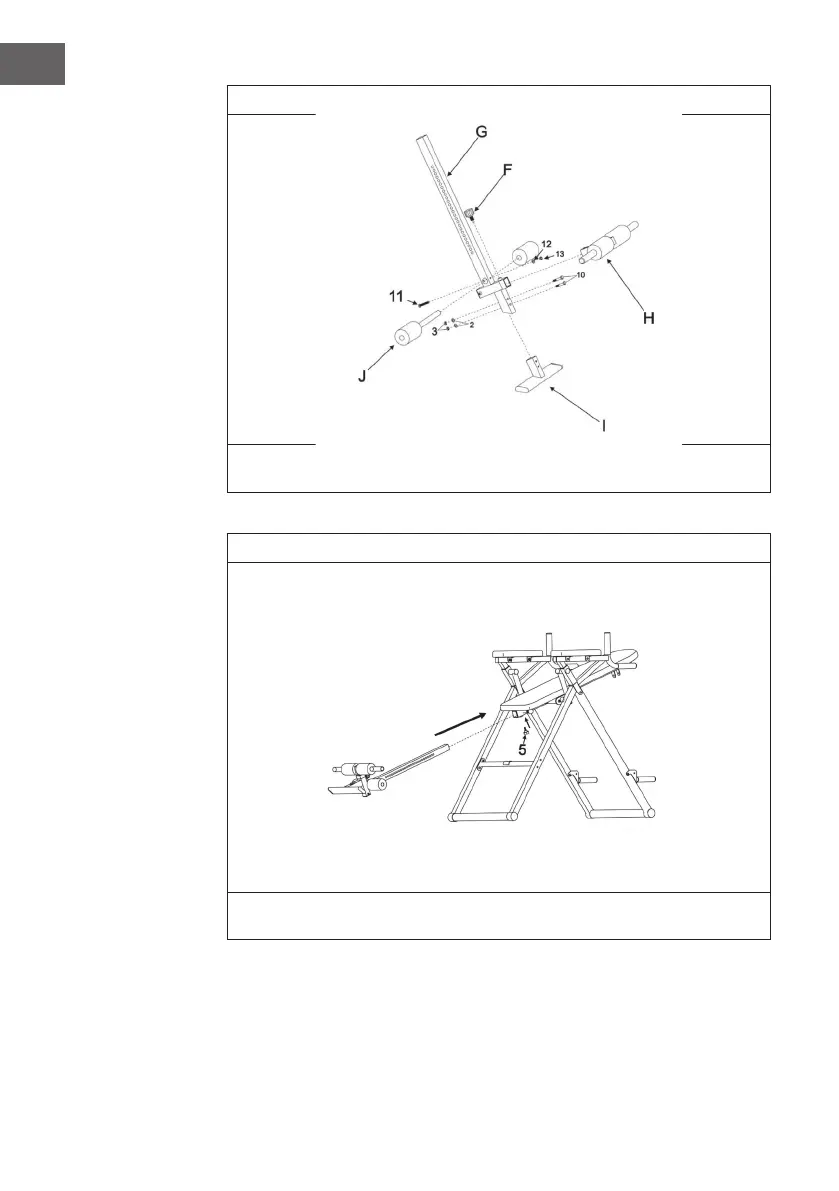

Assemble the Heel holder (H and J) and Foot plate(I) onto the Adjustable boom (G) as
showed in the picture.
7
Inset the assembled adjustable boom and attach the Ball nut (5) onto the back of the
Back pad frame as showed in the picture.
