The following examples illustrate just a few of the many possible uses of the Square ONE Splitter in a live
situation.

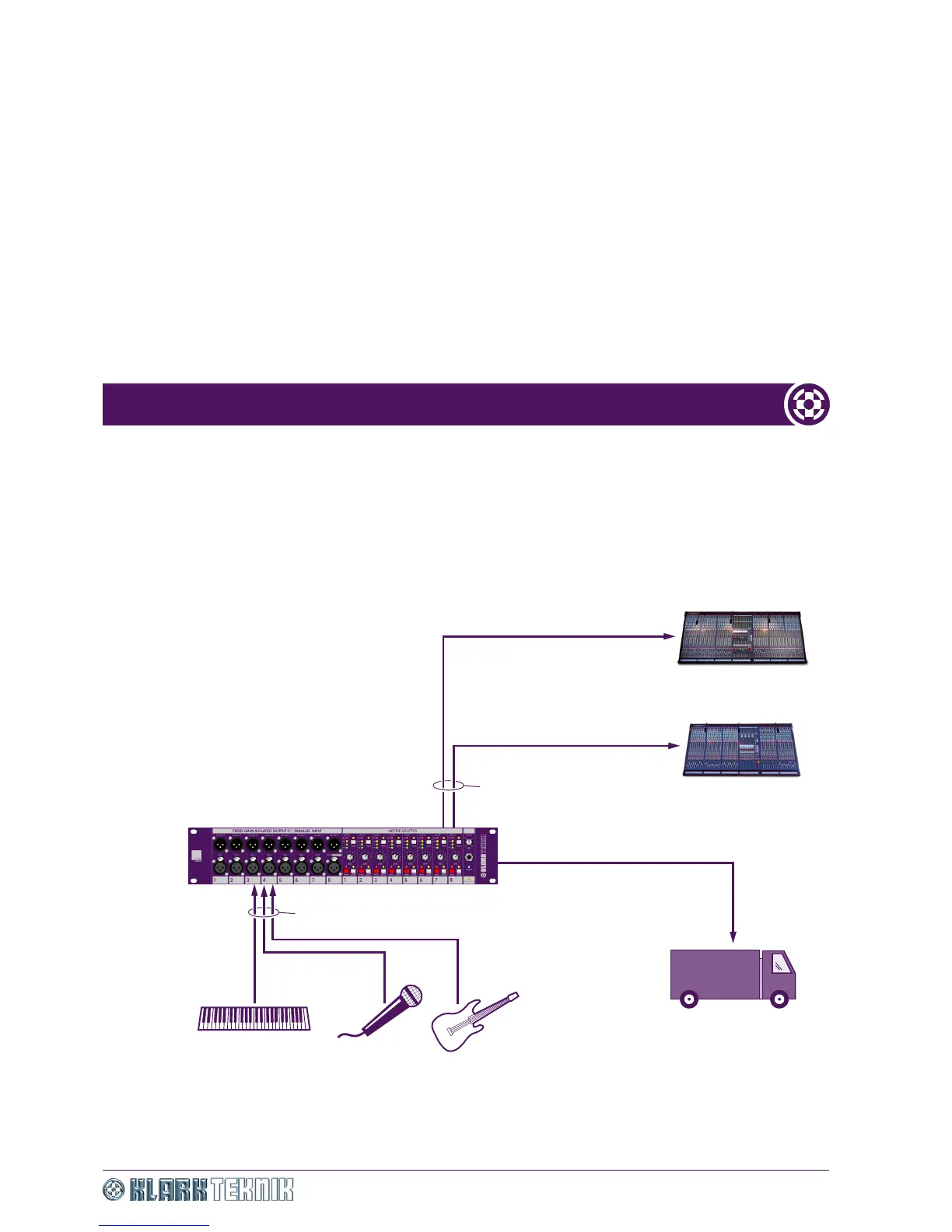

Example 1 - FOH and MON split, and broadcast out
In a live broadcast situation, the Square ONE Splitter may be used to split the stage mic/line signals at
source.
Outside
Broadcast
Guitar
Mic
Keyboard
To in p u ts
Square ONE Splitter
From electronically
balanced outputs
From transformer isolated output
Broadcast
FOH console
(for example, the
Midas Verona)
MON console
(for example, the
Midas Siena)
