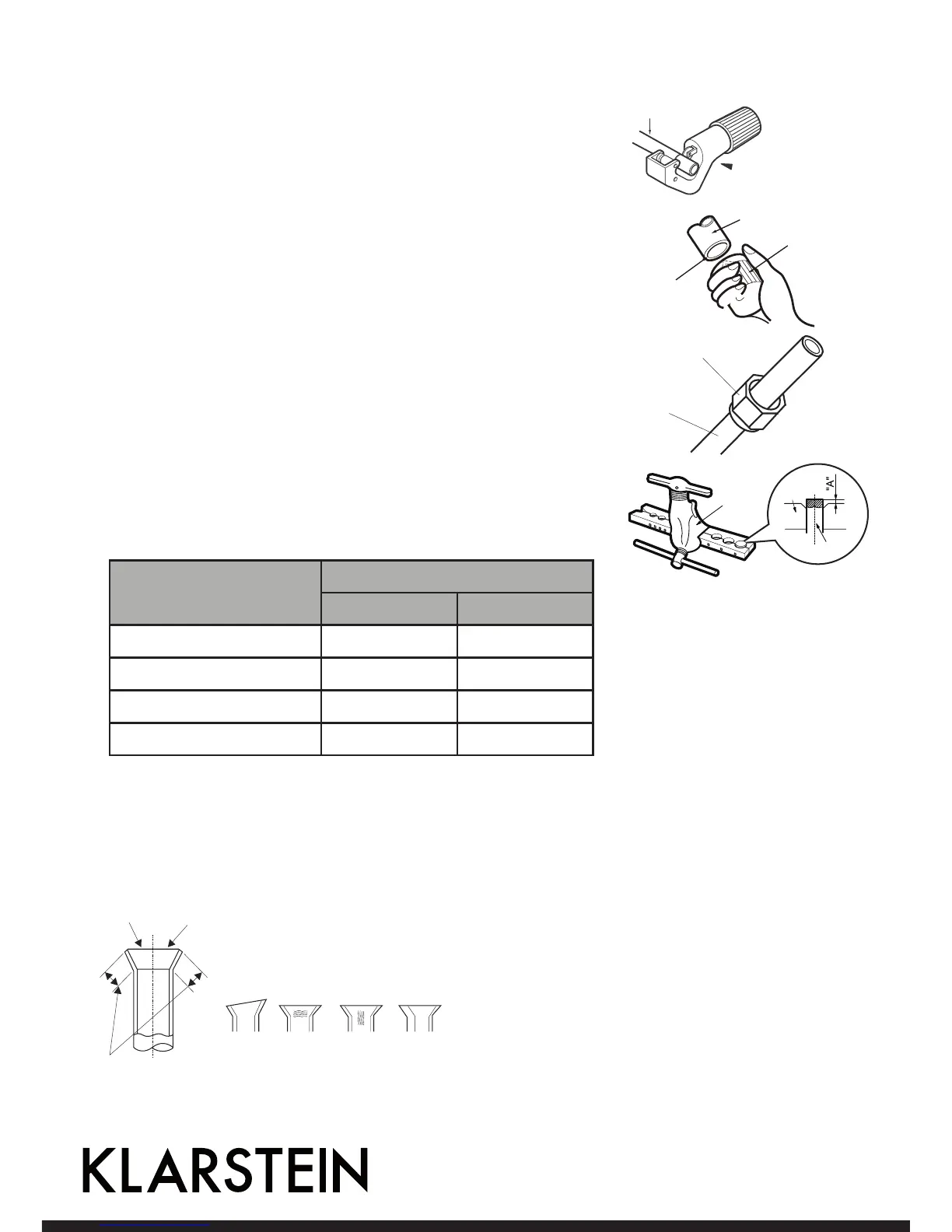

Pipe expanding method
Improper pipe expanding is the main cause of refrigerant leak-
age. Please expand the pipe according to the following steps:
1. Cut the pipe.
• Confirm the pipe length according to the distance of the indoor unit.
• Cut the required pipe with pipe cutter.
2. Remove the burrs
• Remove the burrs with shaper and prevent the burrs from getting into
the pipe.
3. Put on suitable insulating pipe.
4. Put on the union nut.
• Remove the union nut on the indoor connection pipe and outdoor
valve; install the union nut on the pipe.
5. Expand the port
• Expand the port with expander.
Step 1 is different depending on the diameter, please refer to
the table below:
Outer diameter (mm) A (mm)
Max. Min.
ø 6 - 6,35 (1/4 ") 1,3 0,7
ø 9,52 (3/8 ") 1,6 1,0
ø 12 - 12,7 (1/2 ") 1,8 1,0
ø15,8 - 16 (5/8 ") 2,4 2,2
6. Inspection
• Check the quality of expanding port. If there is any blemish, expand
the port again according to the steps above.
