Cartridge pierced probe and seal washer
Cartridge pierced probe and seal washer maybe damaged when wrong usage or other
reasons, please replace a new one.
1. 
out Cartridge pierced probe. Be careful not damage other parts of regulator.
2. Install a new cartridge pierced probe in the regulator (leave the sharp end outside

of regulator in the replacing process.
Cartridge connector
Regulator
assembly
Seal circle
Slim metal
stick
Empty CO
2
cartridge

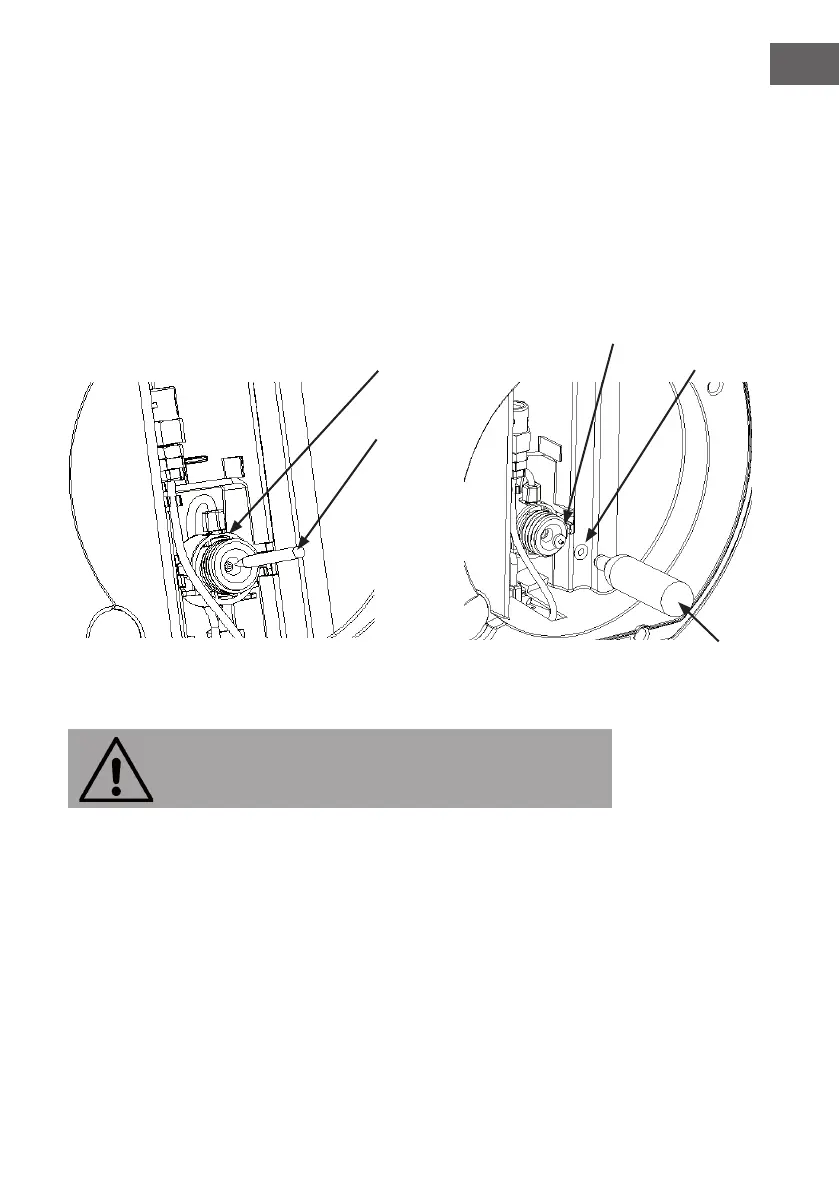

Figure 24 Figure 25
WARNING
Risk of injury! Remember press the seal circle with empty cartridge
instead of new cartridge, or will cause hazard.
To change beer tube
Please replace the beer tube if beer tube is damaged and cause beer leakage (see

1. Loosen the tube at connection 1 and draw out the tube. Pull down the lock setting,
and draw the tube out.
2. Screw out nut at connection 2, and draw the tube out.
3. Replace a new beer tube, and install the beer tube according with reverse
procedure.
