• Gently wipe the ignition device and  ame supervision device with a well wrung-out
cloth and wipe dry with a clean cloth.
• Before placing the burners back on the top plate, make sure that the injector is not
blocked.

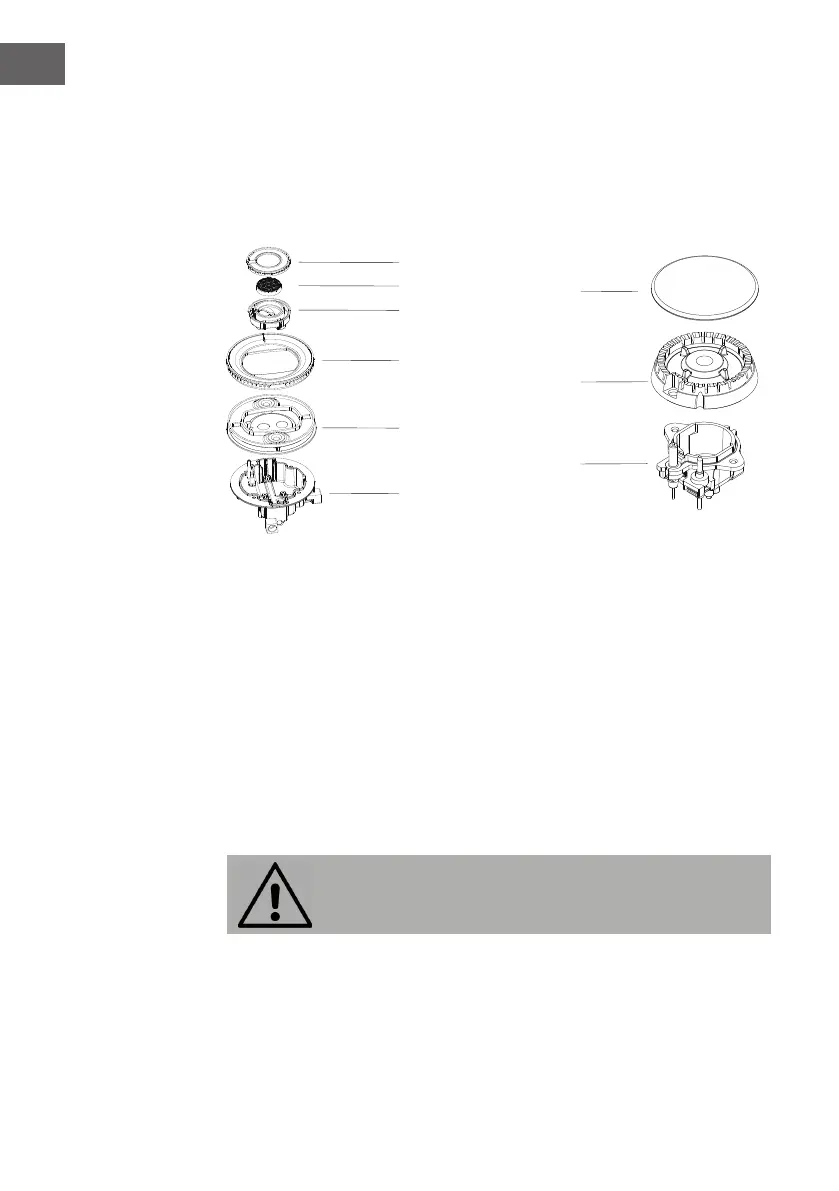

Re-assemble the Auxiliary, Semi-Rapid, Rapid and Triple-Crown burners as
follows
7
1
2
3
4
8
5
9
6
For the Triple-Crown burners:
1. Place the circle burner cap(2) and burner lid(1) on the  ame spreader(3) in tu
2. Place the  ame spreader(5) onto the burner cup(6) and place the burner lid(4) on
the  ame spreader(5).
3. Position the  ame spreader(3) onto the burner lid(4).
For the Auxiliary, Semi-rapid and Rapid:
1. Place the  ame spreader ( 4 ) on to the burner cup ( 5 ) so that the ignition device
and the  ame supervision device extend through their respective holes in the  ame
spreader.The  ame spreader must click into place correctly.
2. Position the burner lid ( 1,2,3 ) onto the  ame speader ( 4 ) so that the retaining
pins  t into their respective recesses.
WARNING
Danger of  re! Do not mix up the top and bottom.
The locating pins must  t exactly into the notches.
