Klarstein IGNITO MAX 4 - Gas Connection

40
EN
Gas connection
• This appliance must be installed and connected in accordance with installation
• regulations in force in the country in which the appliance is to be used.
• This appliance is supplied to run on LPG and natural gas. Conversion for
• use on LPG and natural gases must only be undertaken by a qualied person.

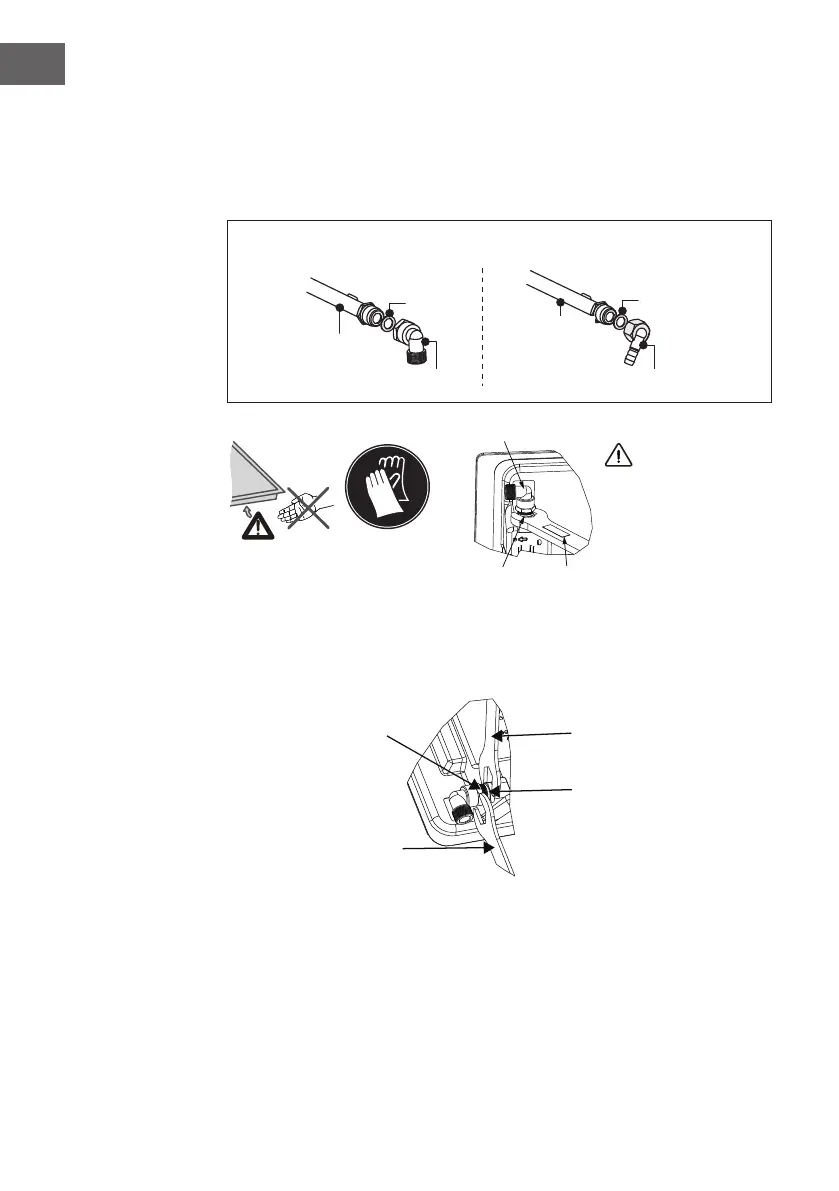

Gas supply replacement and installation guidelines:
seal
G1/2"Female coupler
The gas inlet
pipe assembly
The gas inlet
pipe assembly
Ø11.5 Female coupler
LPG > NG NG > LPG
seal
Installation of appliance
Note: Wear protective gloves
manifold
Black nut of
Ca utio n!
Elbow
Torque:
9±1N.m
9.0N.m
lf necessary to a djust or
install the elbow, it is
allowed only torque
wrench with 9±1N. m ,
and work on the Black nut
of manifold instead of on
the elbow.
(1) Adjusting the direction of elbow
Tighten with a torque
wrench of 9±1N.m
The black bolt of the
gas inlet pipe assembly
The hexagonal
head of the elbow
Hold still
After loosening the elbow, adjust the elbow interface to the required direction as
required, and keep the hexagonal head of the elbow motionless with a wrench. Use a
9±1 Nm torque wrench to tighten the black bolt of the gas inlet pipe assembly. Ensure
that the torque of the wrench is within the required range to prevent elbow breakage or
damage caused by excessive force.
After the installation is tightened, check whether the parts are in good condition and test
the air tightness to ensure the tightness of the installation. The installer is responsible for
the results of the process.
seal
Installation of appliance
Note: Wear protective
gloves to t the hob.
Elbow
Black nut
of manifold
Torque
9±1Nm
lf necessary to adjust or
install the elbow, it is allowed
only torque wrench with
9±1Nm, and work on the
Black nut of manifold instead
of on the elbow.
Caution!
The hexagonal
head of the elbow
Tighten with a torque
wrench of 9±1 Nm.
The black bolt of the gas
inlet pipe assembly
Hold still
Gas supply replacement and installation guidelines:
LPG > NG
The gas inlet
pipe assembly
The gas inlet
pipe assembly
seal
G1/2" Female coupler
Ø11.5 Female coupler
Erdgas > Propan
