4. Description of the electric-hydraulic crimping unit
4.1. Description of the components
The electric-hydraulic crimping unit type EK 22 is a hand held tool and consists of the
following components:

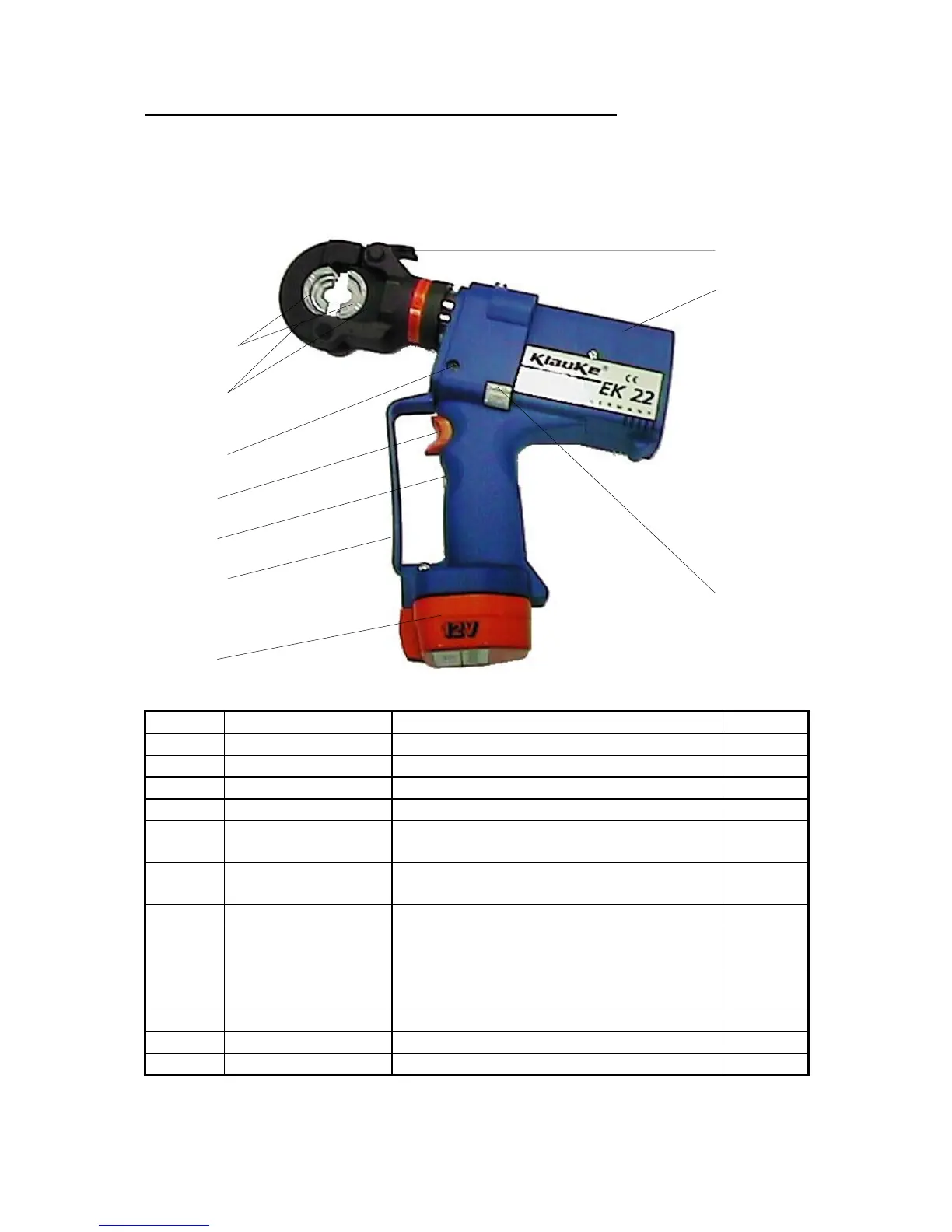

Picture 1
Pos.-No. 3
Pos.-No. 5
Pos.-No. 10
Pos.-No. 4
Pos.-No. 6
Pos.-No. 1
Pos.-No. 8
Pos.-No. 9
Pos.-No. 2
Pos.-No. 7
Table 1
Pos.-No. Description Function Reference
1 Trigger switch to start crimping action pp 3, 4, 5
2 Retract button button to open the dies after crimping pp 3, 11
3 latch device to close the crimping head pp 3, 5
4 Retaining clips button to remove the dies pp 3, 5
5 Housing ergonomically formed plastic housing for
perfect performance with a detachable lid
p 3
6 Light diode display indicator for tool functions and battery
charge control
pp 3, 5, 11
7 Battery cartridge rechargeable battery pp 3, 10
8 trigger lock safety lock to guarantee that no unintentional
processes can occur.
pp 3, 4, 5
9 Removable hand
guard
guard to protect the operating hand p 3
10 Dies interchangeable crimping dies pp 3, 6
11 Oil reservoir reservoir to store the hydraulic oil p 9
12 Oil plug plug to close the oil tank p 9
To Next Page
