Bedienungsanleitung EK 22 Seite 20
___________________________________________________________________________
Please use the following assembly instructions for cable lugs and connectors:
1. Strip the conductor according to insertion depth (+10% due to the change of length of the
crimped sleeve)
2. The Conductor ends must be cleaned with a cloth or brush before the assembly.
3. Insert the conductor fully into the cable lug or connector
4. Pay attention to the crimping directions and use the appropriate dies.

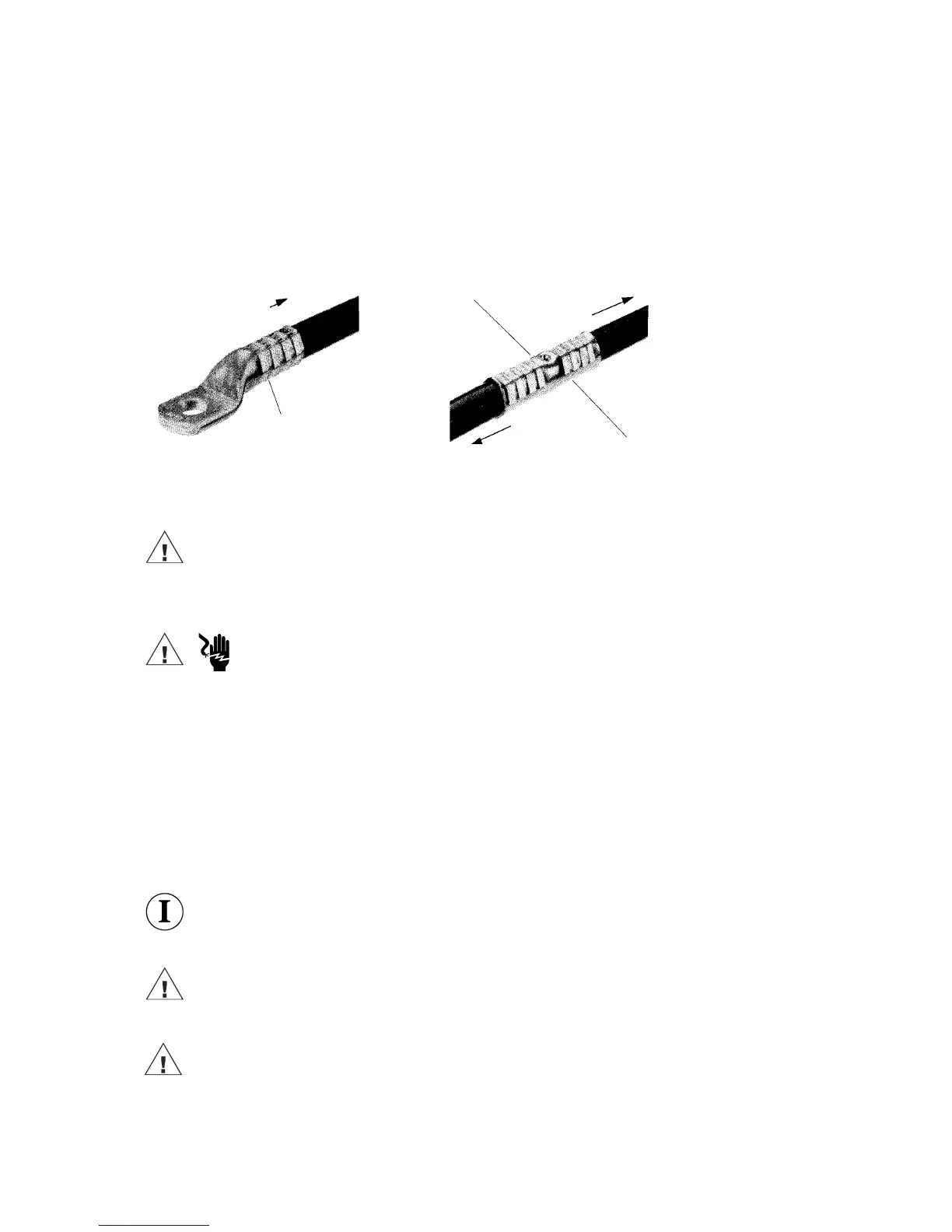

The crimping directions for cable lugs and connectors is indicated in the illustration below.
5. After crimping, wipe away excess compound forced out of Al-cable lugs and connectors.
Attention
Do only crimp copper and Al conducting material
If different conducting materials have to be crimped, please contact the manufacturer.
Attention
Do not crimp on live cables or conductors
Before starting to crimp please make sure that all parts involved in the crimping process are
not connected to live circuits.
The EK 22 is a hand held tool and it is not supposed to be restrained in a vise. It is not
allowed to use the tool in a stationary application.
The tool is not designed for continued crimping action. After a sequence of approximately 30-
40 completed crimps you have to make a break of a quarter of an hour to give the tool time to
cool down.
Attention
Too intensive use can cause heat damages for the tool
Attention
During the operation of electric engines sparks can occur which might ignite
highly inflammable or explosive liquids and materials
Attention
Electric-hydraulic crimping tools should not be operated in pouring rain or
under water.
First crimp
Side a
First crimp
Side b
Crim
