5.2. Explanation of the application range
Our electric-hydraulic crimping tool type EK 22 has a large number of
various dies (Pos.-No. 10) available to crimp copper and aluminium
connecting material.
Table 2

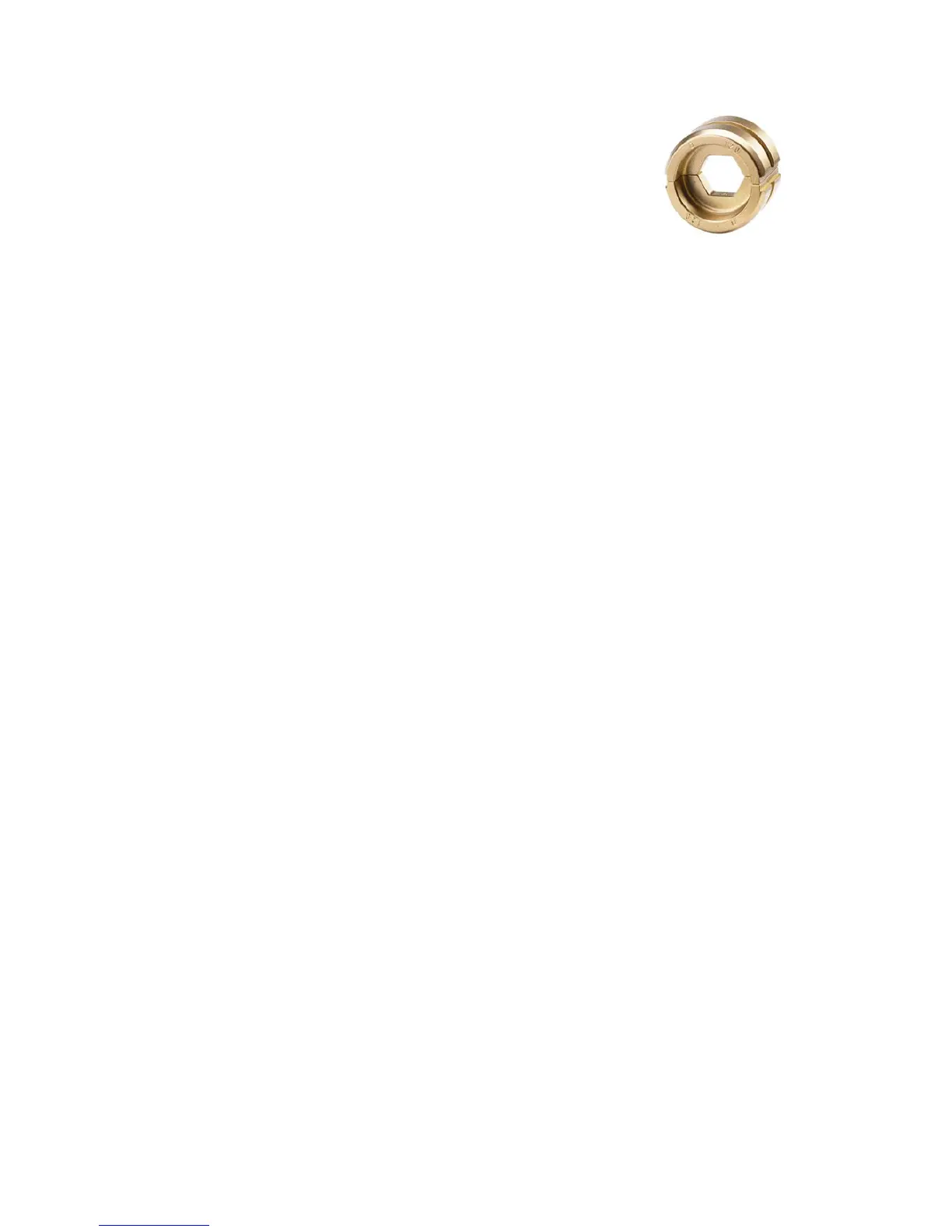

Picture 3
Crimping range Connecting material
___________________________________________________________________________
a 6-300 mm² Tubular cable lugs and connectors „Standard type“
_____________________________________________________________________
b 6-240 mm² Compression cable lugs and joints DIN 46235/DIN 46267
___________________________________________________________________________
c 10-240 mm² Aluminium cable lugs and connectors
___________________________________________________________________________
d 25-185 mm² Compression joints for full-tension connections for Aldrey
conductors acc. to DIN 48201, sheet 6 and Al-conductors acc. to
DIN 48201, sheet 5, 120-185 mm²
___________________________________________________________________________
e 25-4 to mm² Compression joints acc. to DIN 48085, part 3 for
120-20 AL/steel conductors acc. to DIN 48204.
___________________________________________________________________________
f 10-185 sm mm² Pre-rounding dies for Al- and Cu-sector-conductors
35-240 se mm²
___________________________________________________________________________
g 10-70 mm² Solderless Terminals DIN 46234,
Pin terminals DIN 46230
_____________________________________________________________________
h 10-70 mm² Insulated solderless terminals
___________________________________________________________________________
i 10-70 mm² Tubular cable lugs for fine-stranded conductors
___________________________________________________________________________
j 4-50 mm² C-clamps
___________________________________________________________________________
k 10-150 mm² Pre-insulated tubular cable lugs and connectors,
insulated pin cable lugs
___________________________________________________________________________
l 2x50 to mm² Double compression cable-lugs
2x70
___________________________________________________________________________
m 10-50 mm² Tubular nickel cable lugs
___________________________________________________________________________
n 10-70 mm² oval shape compression joints acc. to DIN 48217 and
compression dead ends
___________________________________________________________________________
o 10-95 mm² Cable end-sleeves
___________________________________________________________________________
p 2x4-2x16 mm² Twin cable end-sleeves
