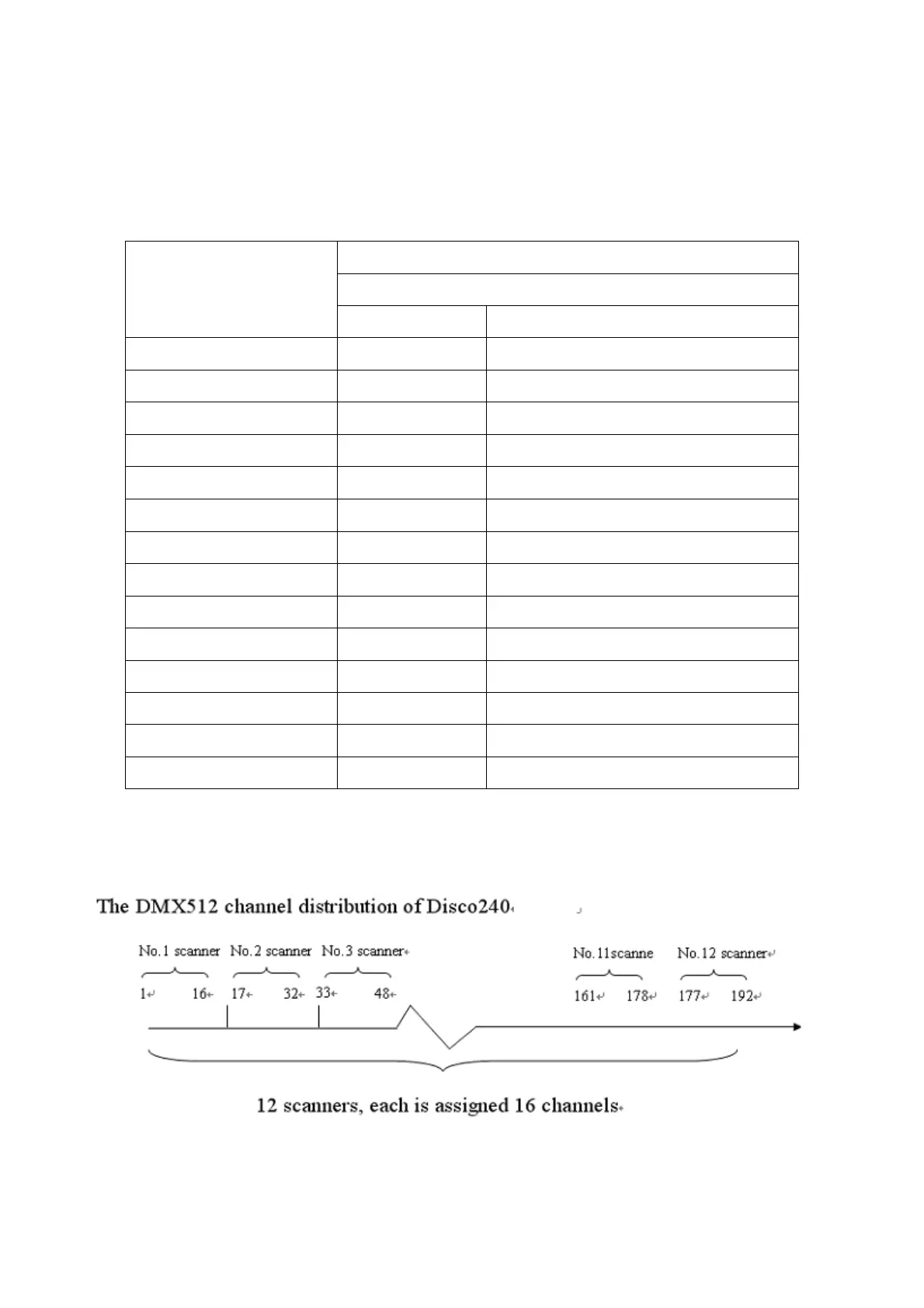

5. DMX512 address distribution
Disco240 console uses 1 to 240 channels of DMX512,so it can control the
scanners with no more than 16 channels. The address is distributed as follows:
Scanner serial number
Scanner DMX starting address
When using Disco240
Decimal system
Scanner address switch location
1 1
1
ON
2 17
1,5
ON
3 33
1,6
ON
4 49
1,5,6
ON
5 65
1,7
ON
6 81
1,5,7
ON
7 97
1,6,7
ON
8 113
1,5,6,7
ON
9 129
1,8
ON
10 145
1,5,8
ON
11 161
1,6,8
ON
12 177
1,5,6,8
ON
P13-P24 206-217
Dimmer channel 1-24 218-241
