ENGLISH
OPERATING INSTRUCTIONS
TURNING LASER BEAMS ON/OFF
Push the ON/OFF buttons for the X-Plane
1
, Y-Plane
2
, and Z-Plane
3
lines to
turn ON and OFF their respective laser lines. These buttons are only active once the
Pendulum Lock/Unlock Slider Switch
10
has been set to the Unlocked position. If the
Pendulum Slider Switch is moved from the Unlocked to the Locked position while the
laser beams are active, they will be turned OFF. The different laser lines can be operated
independently or simultaneously.
NOTE: The plumb spot can be found by locating the top and bottom laser line
intersections while projecting both Y-Plane and Z-Plane Laser lines simultaneously. The
bottom laser line intersection can be used to locate a specific point on a floor layout
while the top laser line intersection projects that same point to a ceiling.
PENDULUM SLIDER SWITCH & SELF-LEVELING
The laser assemblies are mounted on a pendulum so that the instrument can self-level.
The Pendulum Slider Switch
10
must be in the unlocked position for the instrument to
self-level. If the instrument is tilted by >4° from the horizontal plane, the pendulum will
not be capable of self-leveling; the active laser beams will flash and the Excessive Tilt
Indicator
4
will blink to indicate that the instrument is not level and cannot self-level.
The instrument must be repositioned on a more level geometry for the self-leveling
pendulum to function appropriately.

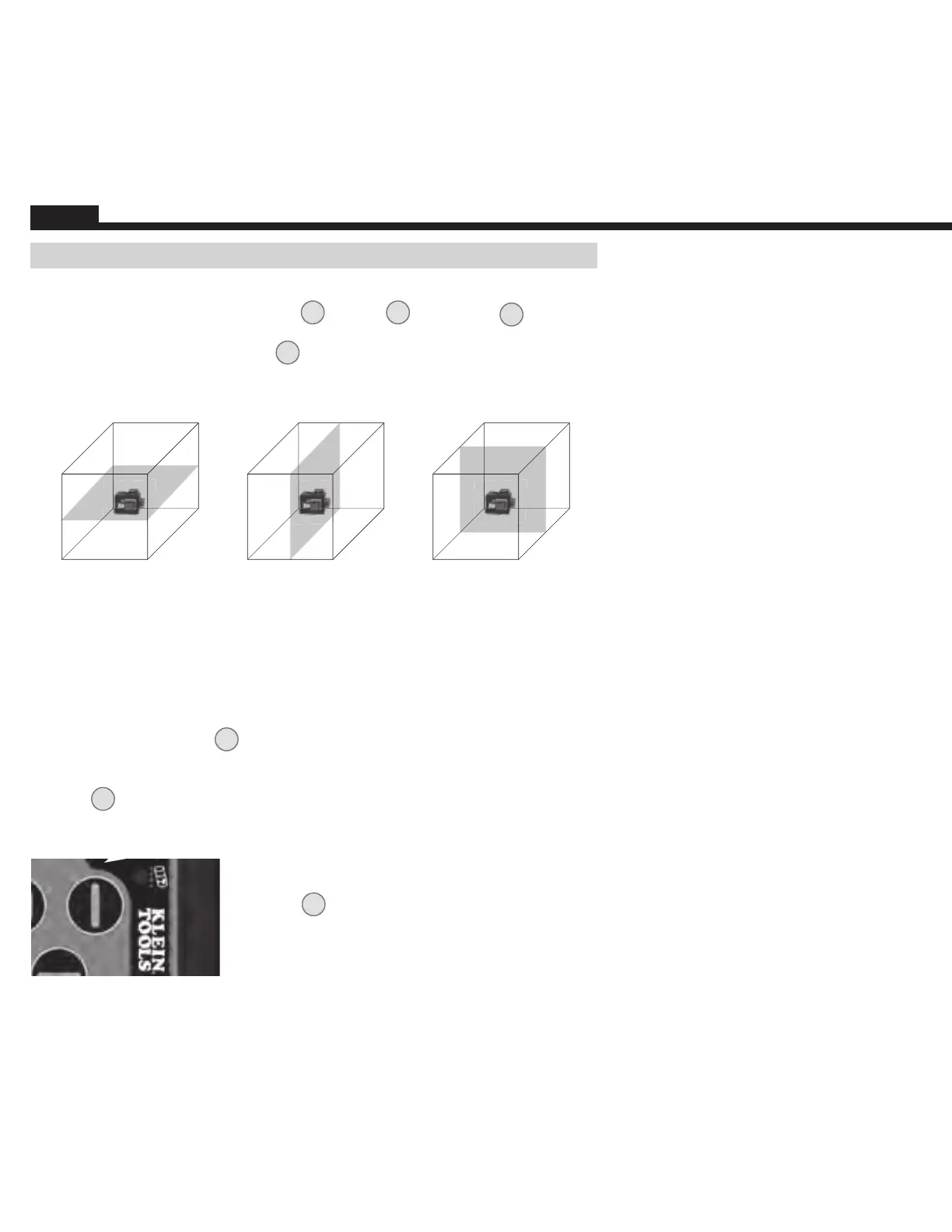

Z-Plane Laser LineY-Plane Laser Line
X-Plane Laser Line
NOTE: If the instrument indicates that it is not level
(via flashing beams and/or a blinking Excessive Tilt
indicator
4
),
then it should not be used for laying
out level or plumb lines.
NOTE: Following use, the active laser beams must be
turned OFF and the Pendulum Slider Switch must be
placed in the Locked position prior to storage.
Instrument Tilted Excessively
y needs to be recharged:
6
of
ABLE 1).
s output. Charge
Red Blinking
% Charged
100% charged
75% to 99% charged
50% to 74% charged
25% to 49% charged
0% to 24% charged
