GENERAL SPECIFICATIONS
The Klein Tools BAT20-7T series tool line is a professional grade multi-function cutting and crimping tool designed to cut
and crimp the widest range of materials.
• Power Source: 20V Li-Ion battery
• Force: 7 Tons (14,000 lbs; 6,350 Kg)
• Operating Temperature: 14°F to 104°F (-10°C to 40°C)
Specifications subject to change.
1
Trigger switch
2
Trigger lock
3
Release switch
4
Crimp indicator light
5
Main handle
6
Head (interchangeable)
7
Head release pin
8
Battery pack
9
Battery release button
10
Fuel gauge button
11
Lift ring
12
Side warning label
13
Worklights (x2)
NOTE: There are no user-serviceable parts inside tool.
Please contact Klein Tools for an authorized service center.

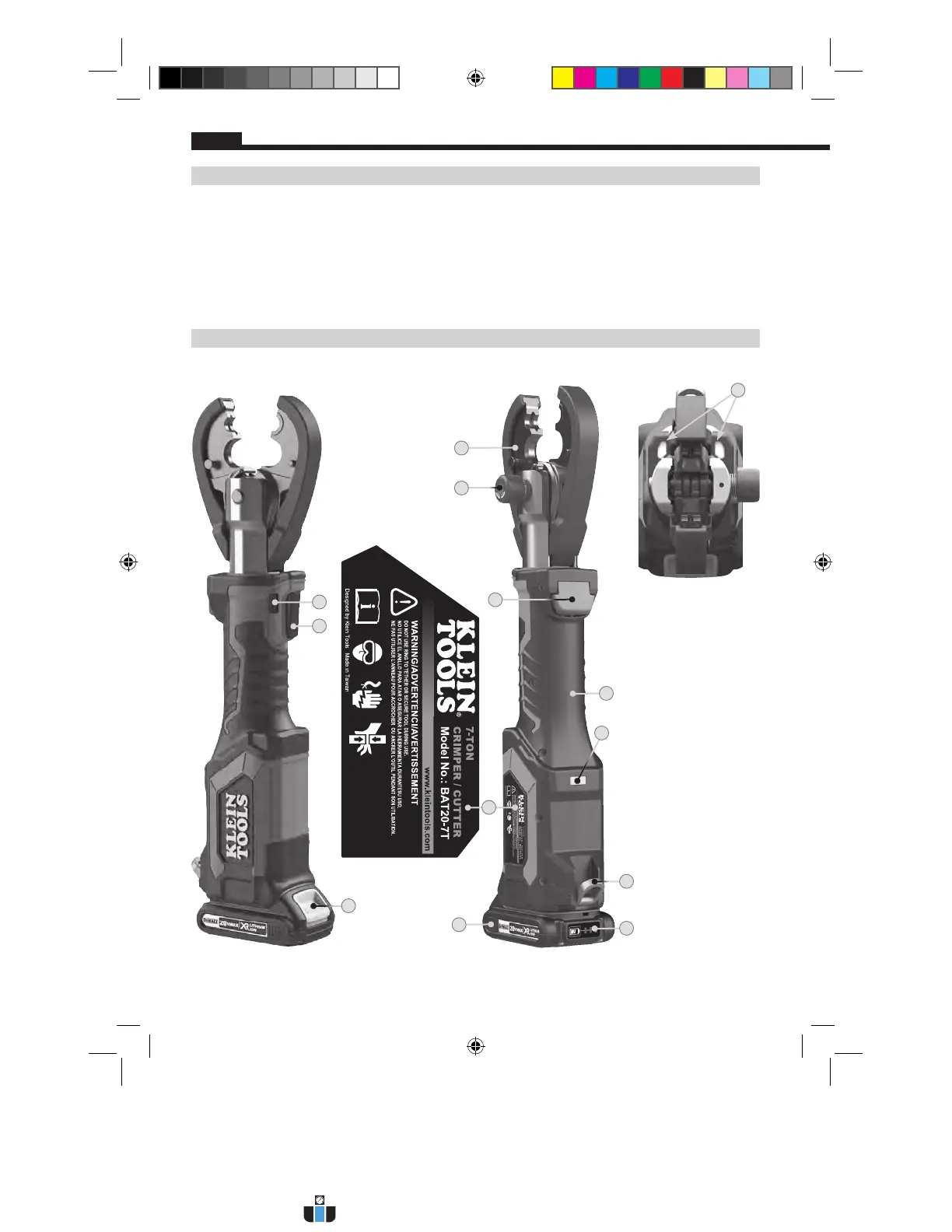

FEATURE DETAILS
ENGLISH
8
1
2
9
FRONT TOP
13
8
5
10
6
4
3
11
12
BACK
7
