Hot (Black)Neutral (White)
Ground (Green)
GENERAL SPECIFICATIONS - RT210
Relative Humidity: < 85% non-condensing
Operating Temperature: 32° to 140°F (0° to 40°C)
Storage Temperature: 14° to 122°F (-10°C to 50°C)
Operating Altitude: Up to 6562 ft. (2000 m)
Weight: 1.2 oz. (33 g)
Nominal Voltage: 110 - 125V AC at 50/60Hz in 3-wire outlet
Mains Supply Voltage Fluctuations: ±10%
Pollution Degree: 2
Nominal Power: 0.3W
Standards:
Conforms To UL Std 61010-1, 61010-2-030,1436
Certified To CSA Std C22.2 #61010-1, 61010-2-030,160
Drop Protection: 6.6 ft. (2 m)
Safety Rating: CAT II 300V
WARNINGS
Read, understand, and follow all warnings and instructions before operating
testers. Failure to follow instructions could result in death or serious injury. Before
each use, verify tester operation by testing on a known live and correctly wired
receptacle. Do not use if the tester appears damaged in any way. The tester is
intended for indoor use only. Other equipment or devices attached to the circuit
being tested could interfere with the tester, clear the circuit before testing. This
tester only detects common wiring problems. Always consult a qualified electrician
to resolve wiring problems.

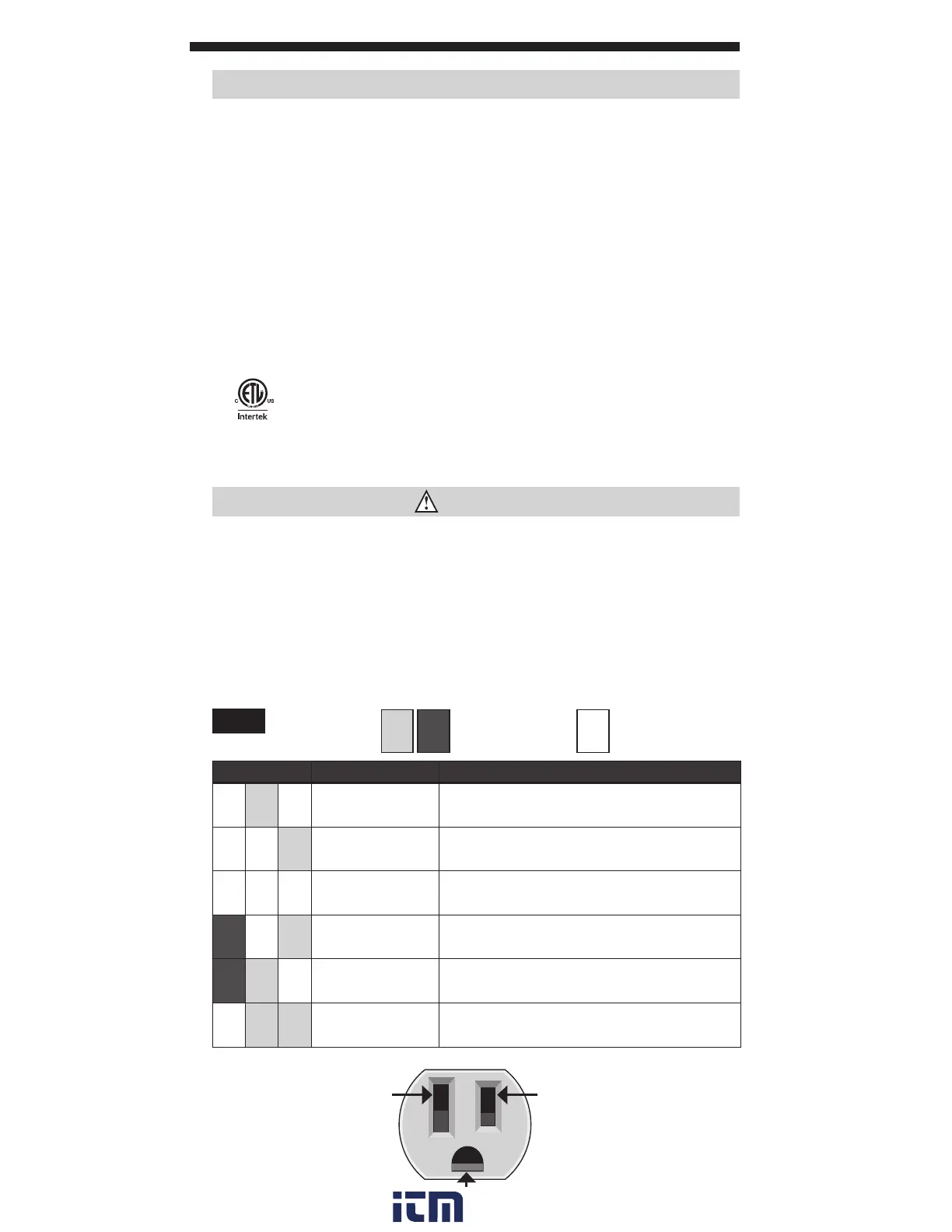

FIG. 2
Indicator
Not Illuminated
INDICATOR
FAULT EXPLANATION
Open Ground Ground contact is not connected
Open Neutral Neutral contact is not connected
Open Hot Hot contact is not connected
Hot/Ground
Reversed
Hot and ground connections are reversed
Hot/Neutral
Reversed
Hot and neutral connections are reversed
Correct Receptacle is wired correctly
