Klein Tools VDV501-068 User Manual

2
ENGLISH
VDV Scout
™
Pro &
VDV Scout
™
Pro LT
Instruction Manual
GENERAL SPECIFICATIONS
The Klein Tools VDV Scout™ Pro is a portable voice-data-video cable tester. It tests and troubleshoots RJ11, RJ12, RJ45, and
F-connector terminated cables and provides built-in tone generation for cable tracing.
The VDV Scout™ Pro LT combines these
features with length measurement.
Sections and lines marked [LT] and in RED are relevant only to VDV501-068 VDV Scout™ Pro LT.

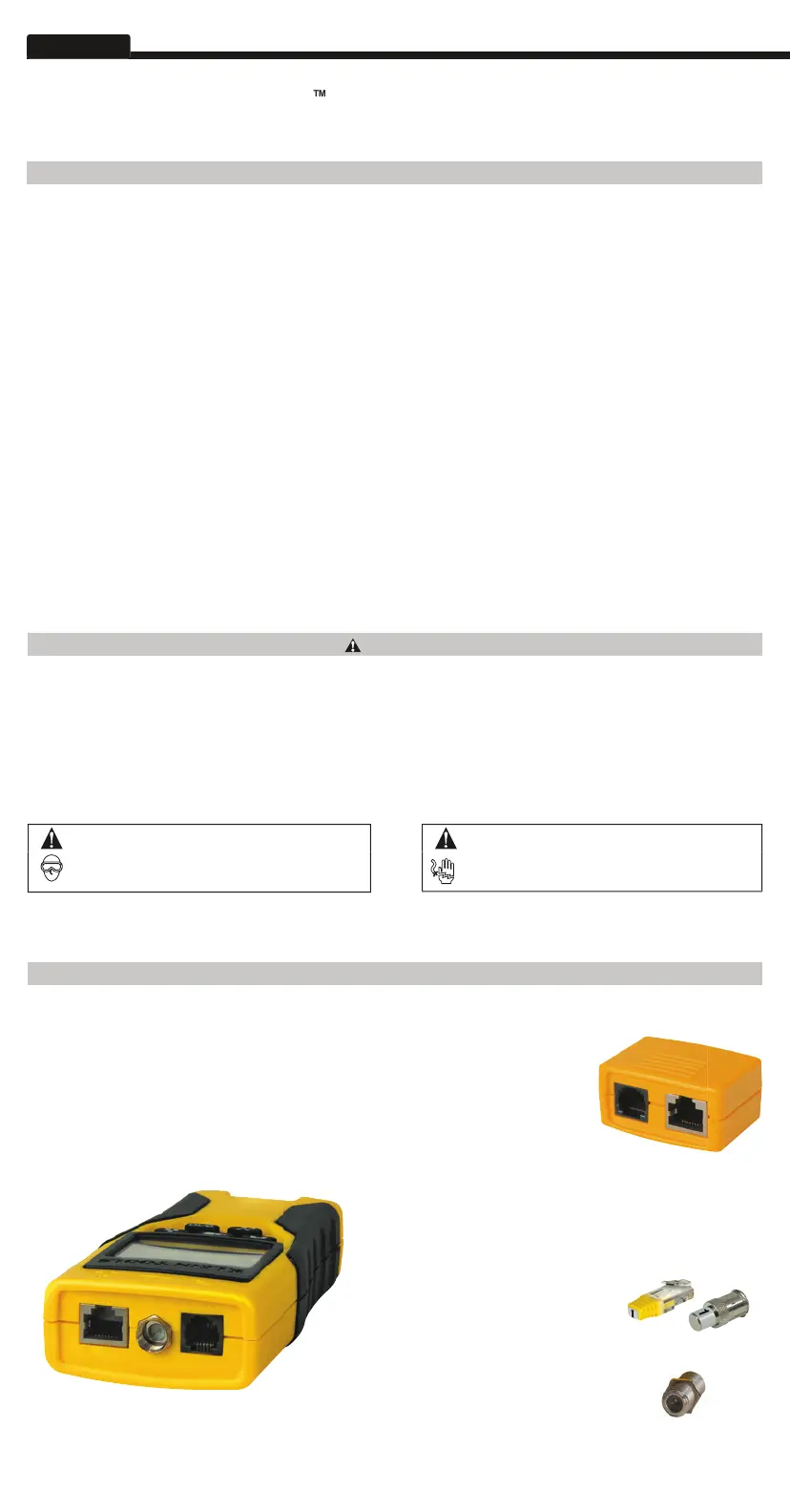

PORTS OVERVIEW
Self-Storing Remote (left to right)
RJ11/12 Port
RJ45 Port
Use this remote to test
for continuity.
VDV Scout
TM
Pro: This remote
does not have an associated
ID number.
VDV Scout
TM
Pro LT: This remote has ID number 1.
ID Remotes: (included in kit, or sold separately)
LANMap Remote (left): RJ45 connector.
CoaxMap Remote (right): F-connector.
Use these remotes to do cable
identi cation mapping.
LANMap remotes cannot be
used to determine continuity.
Connectors:
Barrel Connector:
Female-to-female F-connector.
Main Body (left to right)
RJ45 Port: data cable, ethernet cable, 8-wire cable, 4
twisted pair cable, Cat5e, Cat6, Cat6a, Cat7.
F-Connector Port: video cable, coaxial cable, RG6 cable,
RG59 cable.
RJ11/12 Port: phone cable, POTS (plain old telephone
service) cable, 4-wire cable, 6-wire cable, 2 twisted pair
cable, 3 twisted pair cable, Cat3.
WARNINGS:
Always wear approved eye protection.
WARNINGS:
Do NOT use on energized circuits.
•
Dimensions:
6.4" x 2.8" x 1.4" (16.3 x 7.1 x 3.6 cm)
•
Weight:
9.0 oz. (256 grams) with battery and remote
•
Operating Temperature:
0°C / 32°F to 50°C / 122°F
•
Storage Temperature:
-20°C / -4°F to 60°C / 140°F
•
Humidity:
10% to 90%, non-condensing
•
Maximum Voltage
between any two connector pins
without damage:
•
RJ Jack:
66V DC or 55V AC
•
F-Connector:
66V DC or 55V AC
•
Battery Life
: 9V alkaline battery typical
•
Standby:
4 years
•
Active:
425 hours
•
Cable Types:
Shielded or Unshielded; Cat-7, Cat-7a,
Cat-6a, Cat6, Cat-5e, Cat-5, Cat-4, Cat-3, Coax
•
Maximum RJ Cable Length:
0 to 1000 feet (305 meters)
•
Minimum Cable Length for Split Pair Detection
:
1.5 feet (0.5 meters)
•
Maximum Coax Cable Length:
100 ohms maximum DC
resistance, center conductor plus shield
• [LT] Length Measurement Method:
Capacitance
• [LT] Resolution:
1 ft (0.5 m)
• [LT] Length Measurement Range:
1 to 2000 feet
(610m) with 15pF/ft length constant (or 30nF total
capacitance)
• [LT] Length Accuracy (Without Length Constant
Accuracy):
±
(5%+1ft) or
±
(5%+0.5m)
• [LT] Length Constant Range:
10pF/ft to 40pF/ft
(33pF/m to 132pF/m)
WARNINGS
To ensure safe operation and service of the tester, follow these instructions. Failure to observe these warnings can result in severe
injury or death.
•
The VDV Scout™ Pro is designed for use on unenergized cabling systems. Connecting the VDV Scout™ Pro to live AC power
may damage it and pose a safety hazard for the user.
•
Poorly terminated RJ plugs have the potential to damage the jacks on the VDV Scout™ Pro. Visually inspect an RJ plug before
inserting it into the tester. The contacts should always be recessed into the plastic housing of the plug. Plugging 6-position
plugs into the 8-position jack on the tester has the potential to damage the outer-most contacts of the jack unless the plug is
specifically designed for that purpose.
