Klipsch RP-1600SW - Subwoofer Hook Up Diagrams; Pre-out to Line Input Hookup; LFE Output to LFE Input Hookup

LR
LINE IN
RL/LFE
LINE IN
RL/LFE
FIGURE 2

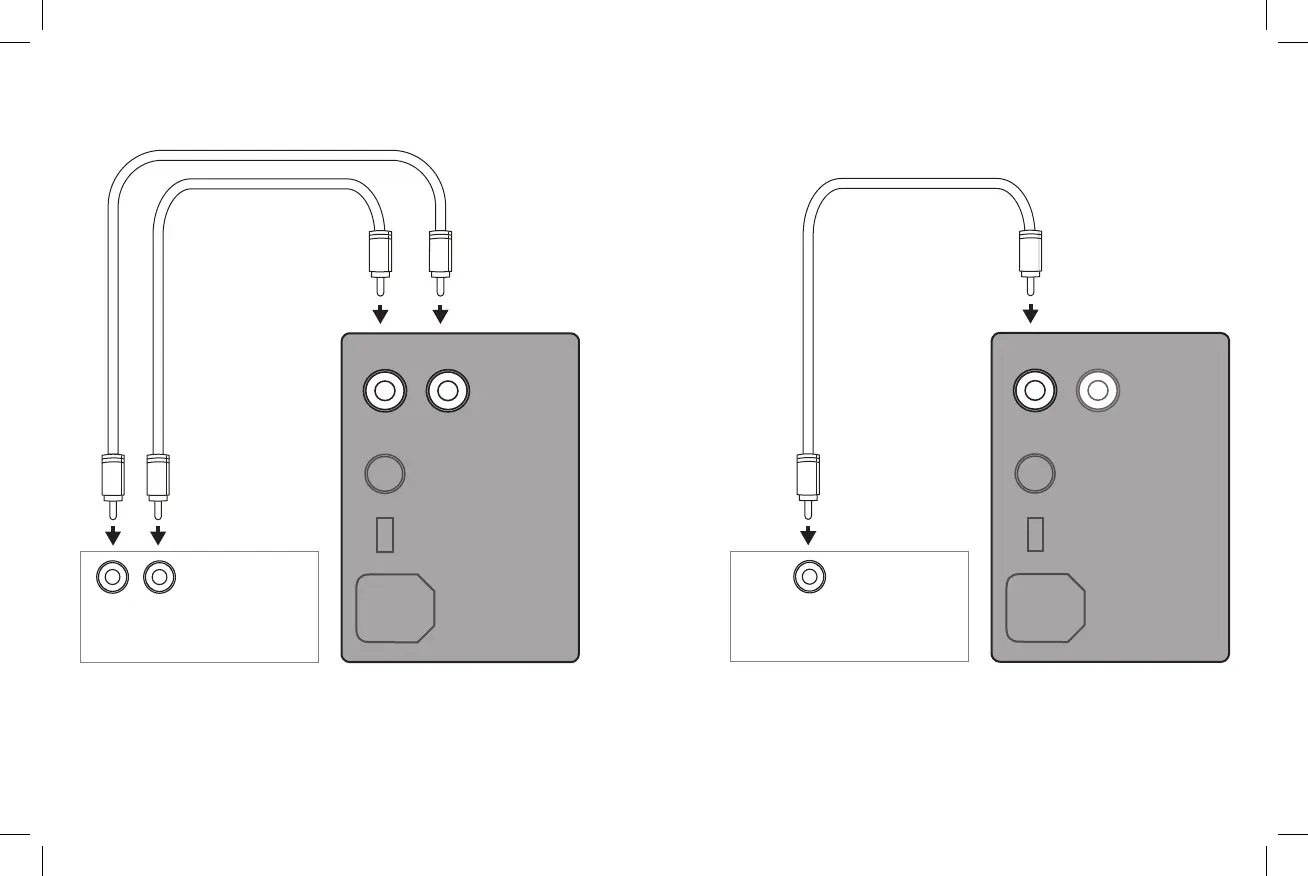

RP-1000SW, RP-1200SW, RP-1400SW AND RP-1600SW SUBWOOFER HOOK UP
PRE • OUT LFE OUTPUT
Left and Right pre-outs on Processor/Pre-Amp/Receiver connected to
Left and Right line inputs on subwoofer amplifier
LFE Output on Processor/Pre-Amp/Receiver connected to LFE input on
subwoofer amplifier
OR
Processor/
Pre-Amp/Receiver
Processor/
Pre-Amp/Receiver
