Service Manual – Consumer
17

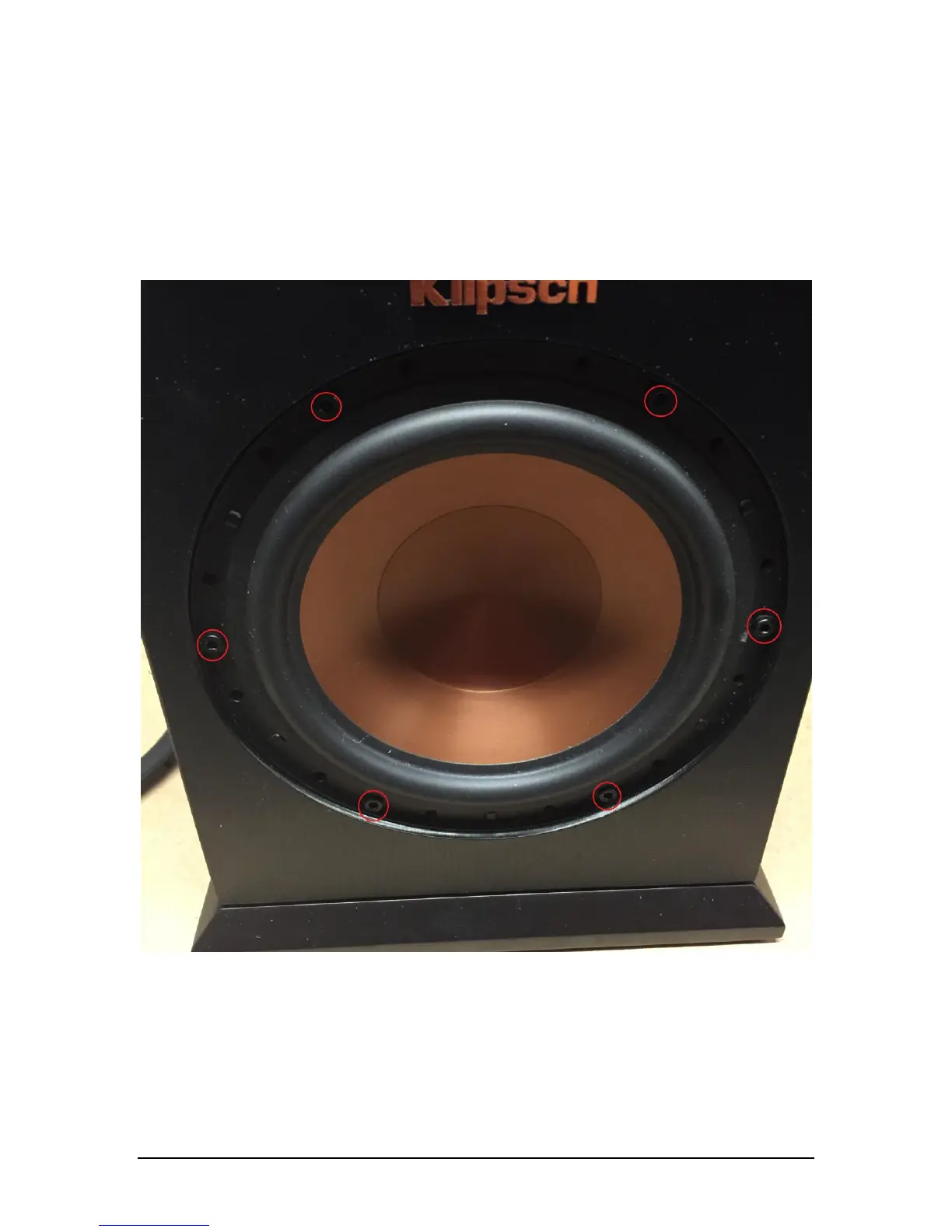

Once the trim ring is removed, begin removing the screws from the perimeter of the woofer.
There are six (6) screws in total, each using a 3mm hex key head, highlighted in red below.
