WOOD BURNING BOILER COOKER ALTEA 110 SICURO TOP
16
EN - Rev. 1.2
DESCRIPTION OF LEDS
- L1 PUMP LED
The led turns on when the pump thermostat is selected.
The LED lights up when the pump thermostat temperature setting is reached.
- L2 VALVE LED
The LED turns on when the valve thermostat is selected.
The LED lights up when the valve thermostat temperature setting is reached.
- L3 AUX LED
The LED flashes when the auxiliary thermostat is selected.
The LED lights up when the auxiliary thermostat temperature setting is reached.
- L4 LEVEL SWITCH LED
The LED turns on when the tank is empty or the water level is too low.
- L5 OFF LED
This LED is lit when the control unit is off.
- L6 DHW LED
This LED flashes when the DHW function is being set.
The LED is lit when the DHW function is on.
- L7 SERV LED
The LED lights up when the service thermostat is selected (for additional pump).
The LED lights up when the service thermostat (for additional pump) temperature setting is reached.
- L8 OVEN LIGHT LED
The LED is lit when the light inside the oven is on.

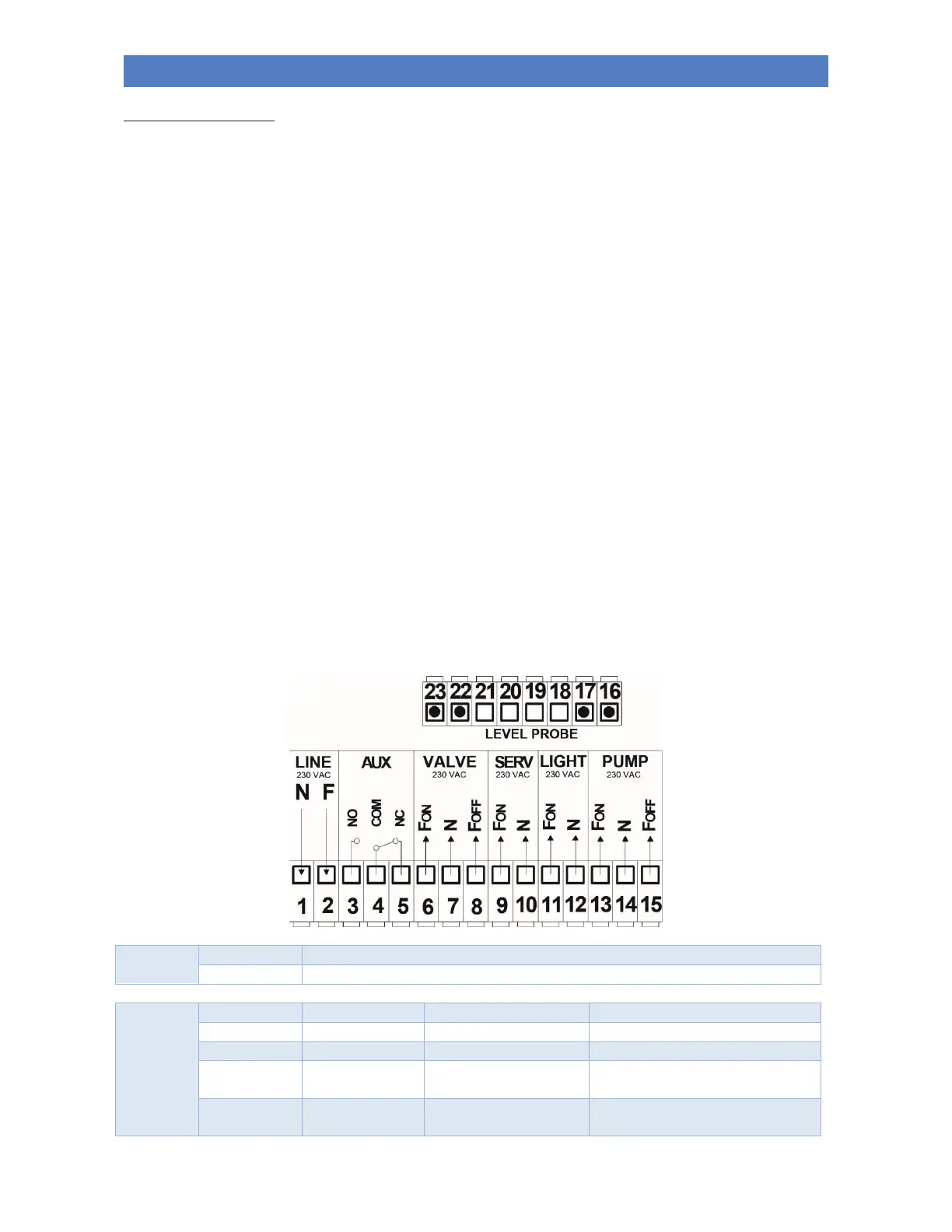

Inputs
PROBE
Water Probe: Temperature Range 0 – 120 °C
H
2
O LEVEL
ON/OFF contact: Level switch
Outputs
PUMP
System pump:
230 VAC power supply
Terminal clamps 13(FON) - 14(N)
LIGHT
Oven light:
230 VAC power supply
Terminal clamps 11(FON) - 12(N)
SERV
Service:
230 VAC power supply
Terminal clamps 9(FON) - 10(N)
VALVE Valve: 230 VAC power supply
Terminal clamps 6(FON) - 7(N) -
8(FOFF)
AUX Auxiliary: Free contacts
Terminal clamps 3(NO) - 4(COM) -
5(NC)
