KMA KMA150.2 - POWER WIRING; Fuse and Wire Gauge Recommendations

3
Install a fuse within 7” (18cm) of the battery and in-line with the power cable connected to your amplifi er.
Use only KICKER KMPK Wiring Kits or other genuine KICKER marine accessories when installing
amplifi ers in marine applications.
source unit
high-level speaker
outputs
to amplifi er
shield
+
–
core conductor
KICKER KISL (optional)
from source unit high-
level speaker outputs
OR
to amplifi er
Model External Fuse (sold separately) Power/Ground Wire
KMA150.2 1 x 40 Ampere 8 Gauge
KMA360.4 1 x 60 Ampere 8 Gauge
KMA600.4 1 x 80 Ampere 4 Gauge
KMA600.6 1 x 80 Ampere 4 Gauge

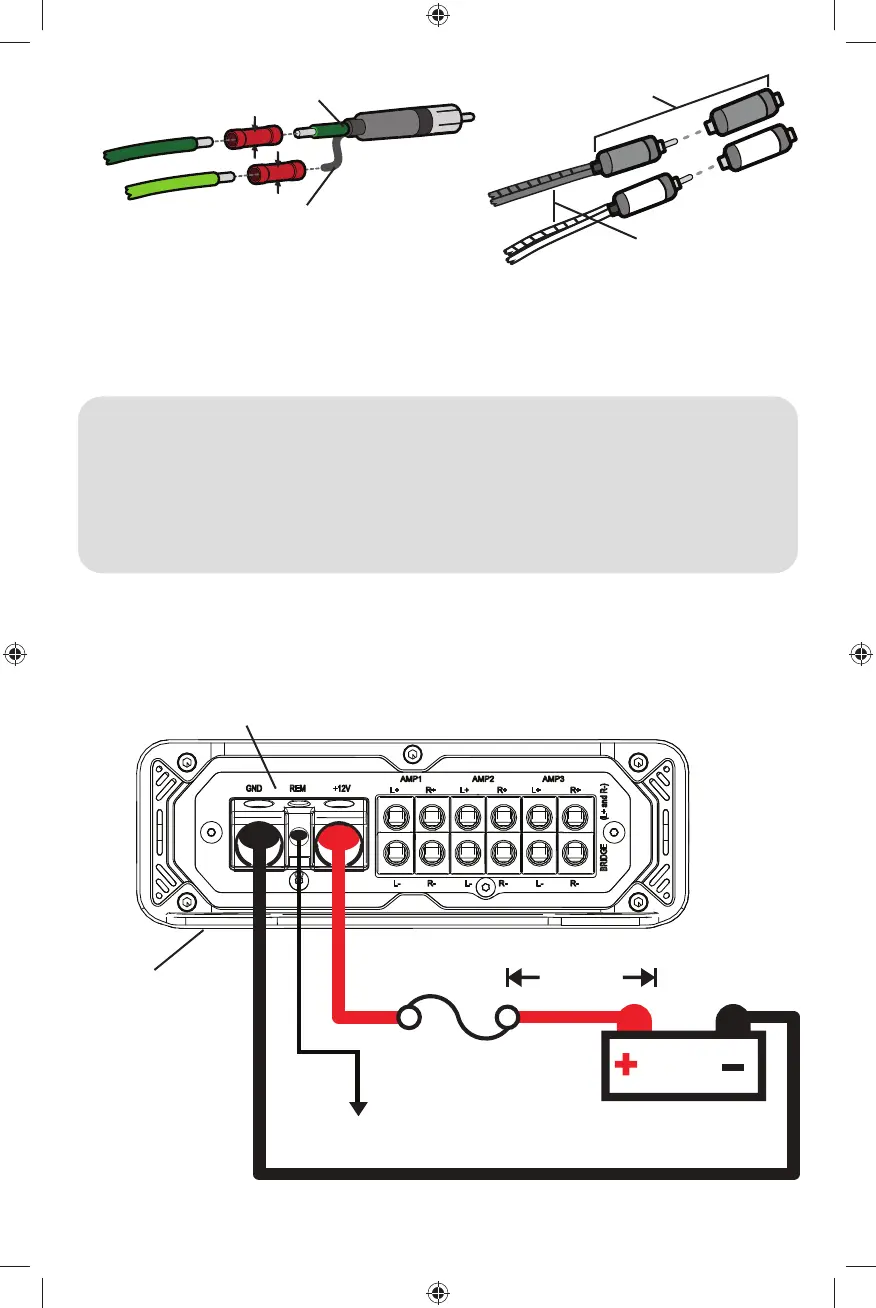

12V
battery
external fuse
remote turn-on (see page 6)
POWER WIRING
ABYC-compliant power terminals
Amplifi er uses 304-stainless steel
screws and conformal coated PCB
for increased weather resistance
aluminum bottom
plate
≤7”
(18cm)
