Knuth R32 Basic - 3 Driving System

Machine Tools OPERATING INSTRUCTIONS
5
and horizontal section can’t allowance exceed to 0.04/1000. After adjust the
all parts, adjust the precision. After that, fix the iron pats and foot nut by
cement, When it dry, tight the foot nut and proofread the precision at last.

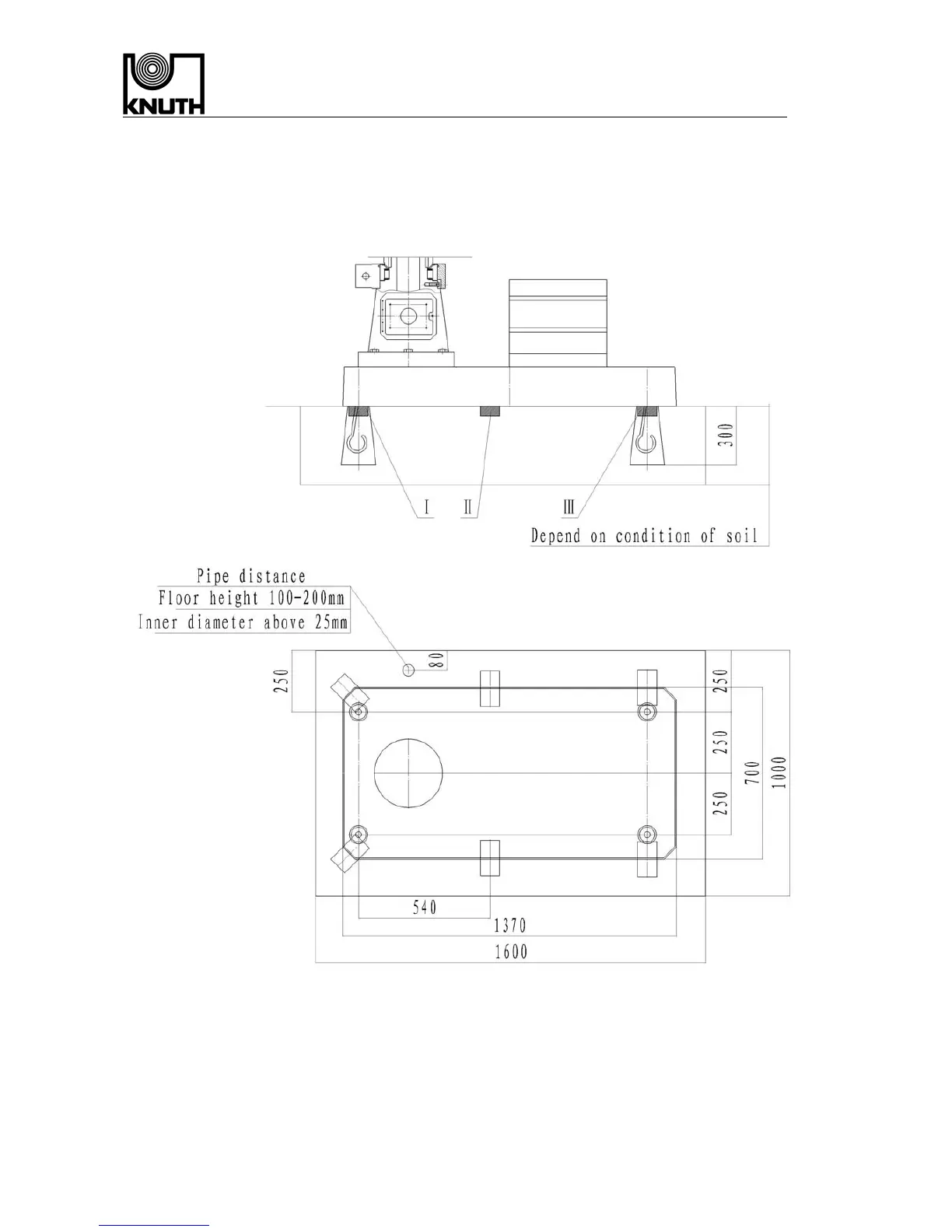

Base figure
3、Driving system
